WhisperWarm® DC Fan and Heater with Light, 50-80-110 CFM

Model:

  • FV-0511VHL1
Featured Specs
WhisperWarm® DC ceiling mount fan with heater and light provides comfortable, bathroom ventilation. It has easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and HEALTHIER environment, with enhanced heating technology that quickly heats up any bathroom.  Indoor comfortability is becoming more important in today’s environment and a WhisperWarm DC fan is the solution!
Contact Sales Find A Dealer

  • Precision spot ventilation fan/heater incorporates a powerful ECM motor with Smartflow™ Technology for optimum CFM output
  • 1600W Positive Temperature Coefficient (PTC) heater provides instant warm up for safe and reliable operation. Combined with a unique circulation grille with built-in diffuser, it provides even more advanced heating performance.
  • Pick-A-Flow® (50-80-110 CFM) combined with SmartFlow™ technology simplifies the selection process and ensures optimum performance to meet code and reduce callbacks
  • Light option includes a 10W dimmable LED chip panel with less than 1W LED night light, JA-8 compliant for CA Title 24 (nightlight must be wired separately)
  • Flex-Z Fast® bracket provides flexible, fast and easy installation, even from below the ceiling

Featured Specs

Model FV-0511VHL1
Model FV-0511VHL1
Fan Type Fan/Heater/Light - LED
Advanced Features Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, LED Light
Air Volume Supply (CFM) @0.1= 110, 80, 50 @0.25= 111, 81, 52 @0.375= 99, 82, 53
Noise (Sones) @0.1"SP (50,80,110 CFM) = 0.7, <0.3, <0.3 @0.25"SP(50,80,110 CFM) = 1.5, 1.0, 0.7
Power Consumption (Watts) @ 0.1"SP (50,80,110 CFM) = 12.4, 7.4, 4.7 @ 0.25"SP = 19.8, 13.1, 8.9 @0.375"SP 26.0, 18.6, 12.7
Energy Efficiency (CFM/Watt) @ 0.1"SP (50,80,110 CFM) = 8.9, 10.8, 10.6 @ 0.25"SP = 5.6, 6.2, 5.9 @0.375"SP 3.8, 4.4, 4.2
Speed (RPM) 1342 1480 @ 0.1"SP (50,80,110 CFM) = 885, 745, 654 @ 0.25"SP = 1115, 1022, 943 @0.375"SP 1265, 1194, 1130
Current (Amps) @ 0.1"SP (50,80,110 CFM) = 0.25, 0.15, 0.10 @ 0.25"SP = 0.39, 0.27, 0.18 @0.375"SP 0.48, 0.37, 0.26
MAX. Current (Amps) 0.5
Power Rating (V/Hz) 120/60
Motor Type (AC/DC) ECM (DC)
Type of Motor Bearing Ball
Thermal Fuse Protector Yes
Blower Wheel Type Sirocco
ENERGY STAR® Certified No
Duct Diameter 4" or 6" inches
Mounting Opening (in sq.) 10-1/4" x 16"
Grille Size (in sq.) 13-1/4" x 18-1/4"
Lamp Watts 10
Lumens (lm) 750
Lumens Per Watt (LPW) ≧70
Color Rendering Index ≧90
Color Temperature (Kelvin) 3000K
Rated Life (hours) 50000
Lamp Model # N/A
Type of Lamp Socket LED chip
Night Light 0.2 Watts
Gross Weight (lbs) 17.4
UL tub/Shower Enclosure No
Wall Installation No
California Title 24 Complaint (LED) Yes
Mfg in ISO 9001 Certified Facility Yes

WhisperWarm® DC Ceiling Mount Fan with Heater and Light, 50-80-110 CFM

Indoor comfort is becoming more important in today’s environment. A WhisperWarm® DC fan provides easy code compliance for the professional, while the homeowner/occupant enjoys a warmer, more comfortable and HEALTHIER environment, with enhanced heating technology that quickly heats up any bathroom.  WhisperWarm DC fans do a great job for an older home especially if there is no heat in the bathrooms; or an assisted living facility where you want to provide extra comfort to your residents; or asa residential remodeler you are looking to squeeze extra value into a bathroom. WhisperWarm DC fans are the solution!

Installed Performance

While ASHRAE, ENERGY STAR®, LEED for Homes, and HVI have set performance standards at 0.1” and 0.25” w.g., WhisperWarm® DC fans/heaters go beyond most other fans by delivering powerful CFM output at 0.375” w.g., which better reflects real-world installations. Additionally, their sound levels are certified at 0.25” w.g., ensuring a more accurate noise rating under typical operating conditions.

ECM Motor- Best Performing, Most Energy Efficient Motor Available

The WhisperWarm DC fan/heater features the same revolutionary ECM motor that comes with our WhisperGreen® line of products. With built-in SmartFlow™ technology, WhisperWarm DC fans/heaters are designed to perform as rated, providing precision ventilation. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace-of-mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.

WhisperWarm DC fans/heaters are designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace-of-mind, as the installer does not have to worry about compromising the fan’s performance, even with a complicated duct run.

smartflow

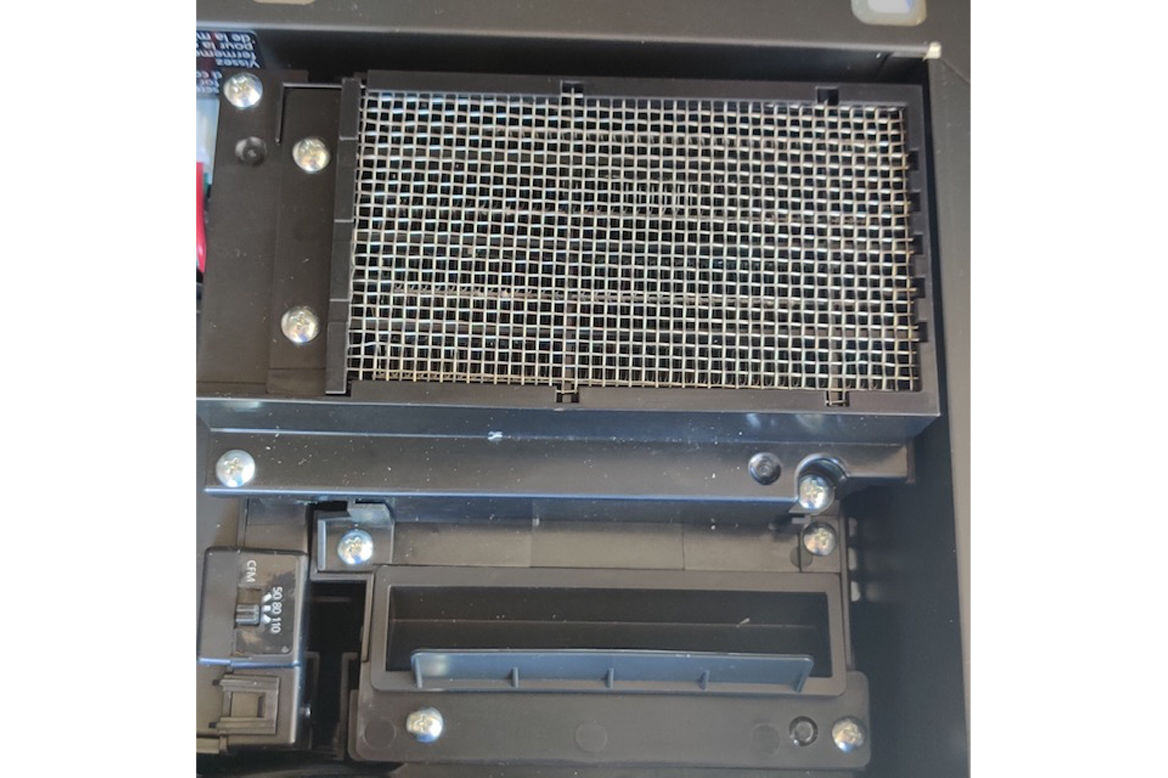

High-Tech PTC Heating Element

The 1600W Positive Temperature Coefficient (PTC) heater provides great safety and reliability. It is self-limiting, which means that asit approacesh its design operating temperature, electrical consumption is automatically decreased, which prevents it from overheating.
iaq20090web_wwarmdc-pdp_web-heater

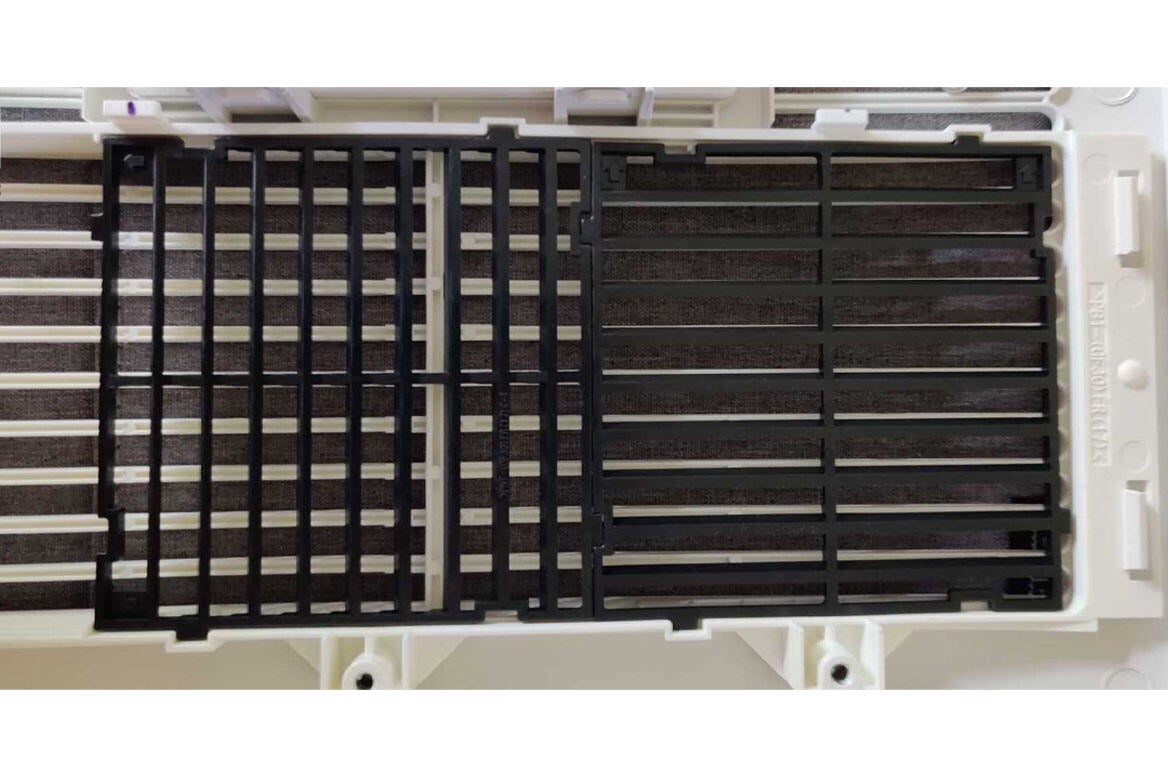

Low-profile Grille with Built-In Diffuser

The unique, adjustable grille with built-in diffuser and directional louvers produces higher output velocity for dispersing and directing warm air faster and wider.
iaq20090web_wwarmdc-pdp_web-grille-1

Pick-A-Flow® Airflow Technology – You Choose The CFM

Built-in Pick-A-Flow® Airflow Selector provides the unique ability to select your required airflow (50-80-110 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.

LED Lighting

Fan/heater/light features a contemporary flush mount grille that incorporates a long-life 10W dimmable LED chip panel/3000 Kelvin Warm White/>90CRI/750 lumens/>70 LPW/ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/50,000 hours rated average life /<1W LED night light included.

Fast, Flexible and Easy Installation

The Flex-Z Fast® Installation Bracket, with single-hinge articulating joints to easily position bracket in between the joist and/or through ceiling hole, lets you install the fan exactly where you want it, in old or new construction. WhisperWarm DC fans incorporate an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK too - just move up to the 6 in. duct. Also Fits in 2"x 8" construction.  Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.

Additional Benefits

  • Minimum 20 Amp dedicated circuit required. For optimum performance, install heater no more than 8 feet from floor to ceiling.
  • Fits in 2" x 8" construction for easy bathroom remodeling and renovations
  •  Integrated 4" or 6" dual duct adapter enhances installation options
  • Low-profile housing design and grille assembly provide superior output, in a smaller footprint.
  •  Built-in damper reduces back drafting and helps with blower door testing
  • Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts
