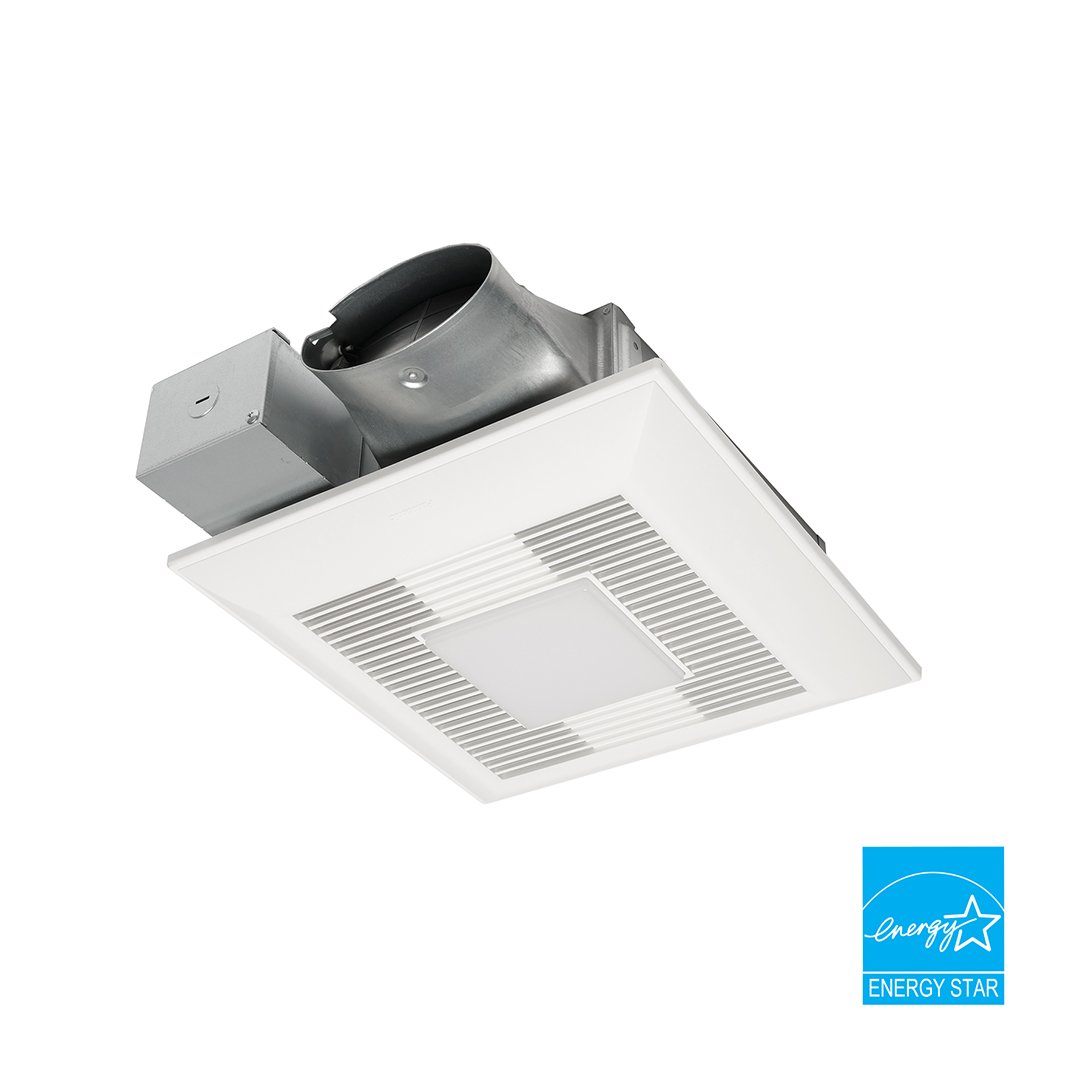

FV-0510VSCL1 main image

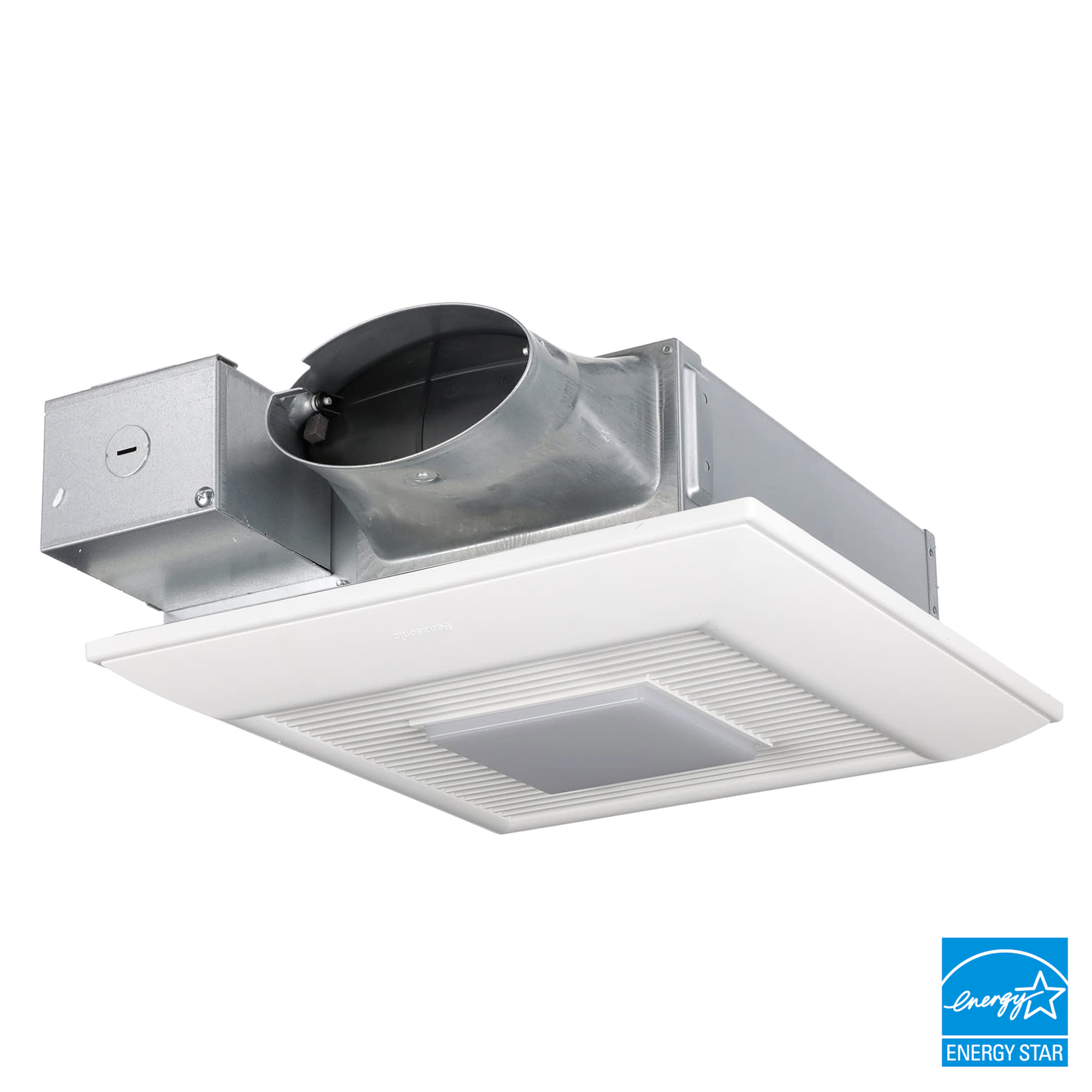

FV-0510VSCL1 second image
whisper value logo
energy_star_logo
smartflow

WhisperValue® DC Fan with LED, Pick-A-Flow®, 50-80-100 CFM & Condensation Sensor

Model:

  • FV-0510VSCL1
Featured Specs

The WhisperValue® DC exhaust fan FV-0510VSC1 with LED and integrated condensation sensor is the ultimate low-profile spot ventilation fan, perfect for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Combining an ultra-slim design with a revolutionary ECM motor and SmartFlow™ technology, it delivers exceptional performance and stands out as the lowest-profile ENERGY STAR®-rated fan on the market.

The WhisperValue®FV-0510VSCL1 boasts two key features for enhanced versatility: the Pick-A-Flow® Airflow Selector, which allows you to choose between 50, 80, or 100 CFM for customizable ventilation, and an optional built-in Condensation Sensor, designed to automatically control moisture levels and prevent excess humidity. These features ensure the fan meets various ventilation needs, complies with building codes, and reduces the likelihood of callbacks, making it a reliable and efficient choice for any project.

Contact Sales Find A Dealer

  • Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance.
  • SmartFlow™ Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output.
  • Condensation Sensor: Detects humidity and temperature to prevent mold and mildew by automatically activating the fan. Features adjustable RH sensitivity for optimal performance and CALGreen compliance, with a 20-minute auto-off timer.
  • Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR® certified fan available, making it perfect for tight spaces and easy installation, even in 2x4 stud walls.
  • Integrated 10W dimmable LED chip panel with <1W LED night light for warm, energy-efficient illumination (night light must be wired separately)
  • Easy Installation: The unique L-shaped bracket offers strong support and simplifies installation, while its UL-approved design allows for ceiling or wall mounting.
  • Cost-Effective Wall Installation: Wall-mounted installation eliminates the need for expensive radiation dampers in fire-rated ceilings, making it an ideal choice for multi-family projects.
  • Code Compliance: Fully compatible with ASHRAE 62.2, IAP, California Title 24, CALGreen, and WA Ventilation Code, ensuring it meets the most stringent industry standards.
  • Warranty: 6 years ECM Motor, 5 years LED, 3 years all other parts
  • 24 gauge steel, fire code rated 4” oval to 3” round duct adapter, sold separately (model #FV-VS43R)
  • Transfer Register Box (model # FV-JD, sold separately), provides room-to-room powered circulation with ductless heat pumps
  • UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)
  • UL listed for tub/shower enclosure when GFCI protected

Featured Specs

Model FV-0510VSCL1
Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP
Master Carton Dimensions (HxWxD) 9.06 x 14.17 x 16.93
CFM 50-70. 80-110
Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Color Rendering Index 90
Color Temperature (Kelvin) 3,000
Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A
Ventilation Design Approach Continuous Ventilation. Spot Ventilation
Duct Diameter 4" Oval
Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
ENERGY STAR® Certified Yes
Fan Type Fan Only
Grille Size (in sq.) 13"
Industry Residential. Light Commercial
Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
Lamp Watts 10
Lumens (lm) 700
Lumens Per Watt (LPW) 70
Motor Type (AC/DC) ECM
Mounting Opening (in sq.) 10-1/2"
Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
Night Light 0.2
Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
Power Rating (V/Hz) 120/60
Product Family Name WhisperValue DC
Radiation Damper Available Yes
Rated Life (hours) 50,000
Type of Lamp Socket LED chip
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
Warranty 6 year DC Motor, 3 Year Parts
Master Carton Gross Weight (lbs.) 9.0

Installation Video

WhisperValue DC with light and built-in condensation sensor

WhisperValue® DC™ Fan/LED Light is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it fits perfectly in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.

High performance ECM motor

The revolutionary ECM motor provides the best performing, most energy efficient motor available. Intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in a duct run and automatically adjusts the fan speed to deliver the optimal CFM output,even in complicated duct runs. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

Pick-A-Flow® Airflow Technology

Built-in Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch.

Condensation sensor

Condensation Sensor helps control bathroom condensation to prevent mold and mildew. Sensor technology detects relative humidity and temperature to anticipate dew point, automatically turning the fan on to control humidity. Built-in Relative Humidity (RH) sensitivity adjustment enables fine tuning for moist conditions and for satisfying CALGreen requirements. The fan will run for 20 minutes before turning off.

Lowest profile design for installation versatility

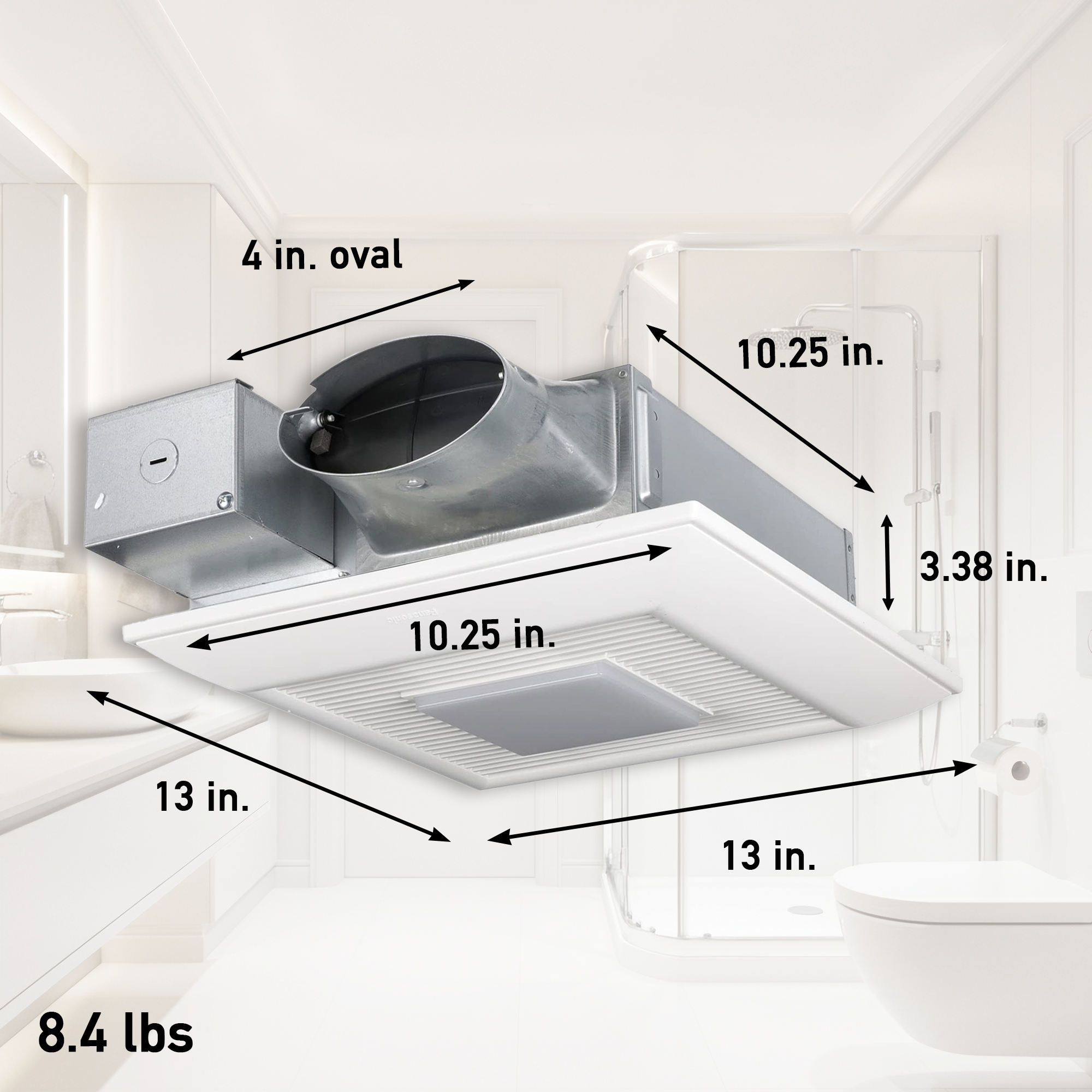

With a 3-3/8" housing depth WhisperValue DC is slimmest design available. The extremely thin profile opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.

LED lamps provide warm, energy efficient illumination

WhisperValue® DC™ fan/light models feature a contemporary flush mount grille that incorporates one 10W Dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/50,000 hours rated average life."

Long life and lower operating costs

Whether you're running a household or a business, you shouldn't have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure.

Fast, flexible, professional installations

Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately.

ENERGY STAR® certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
