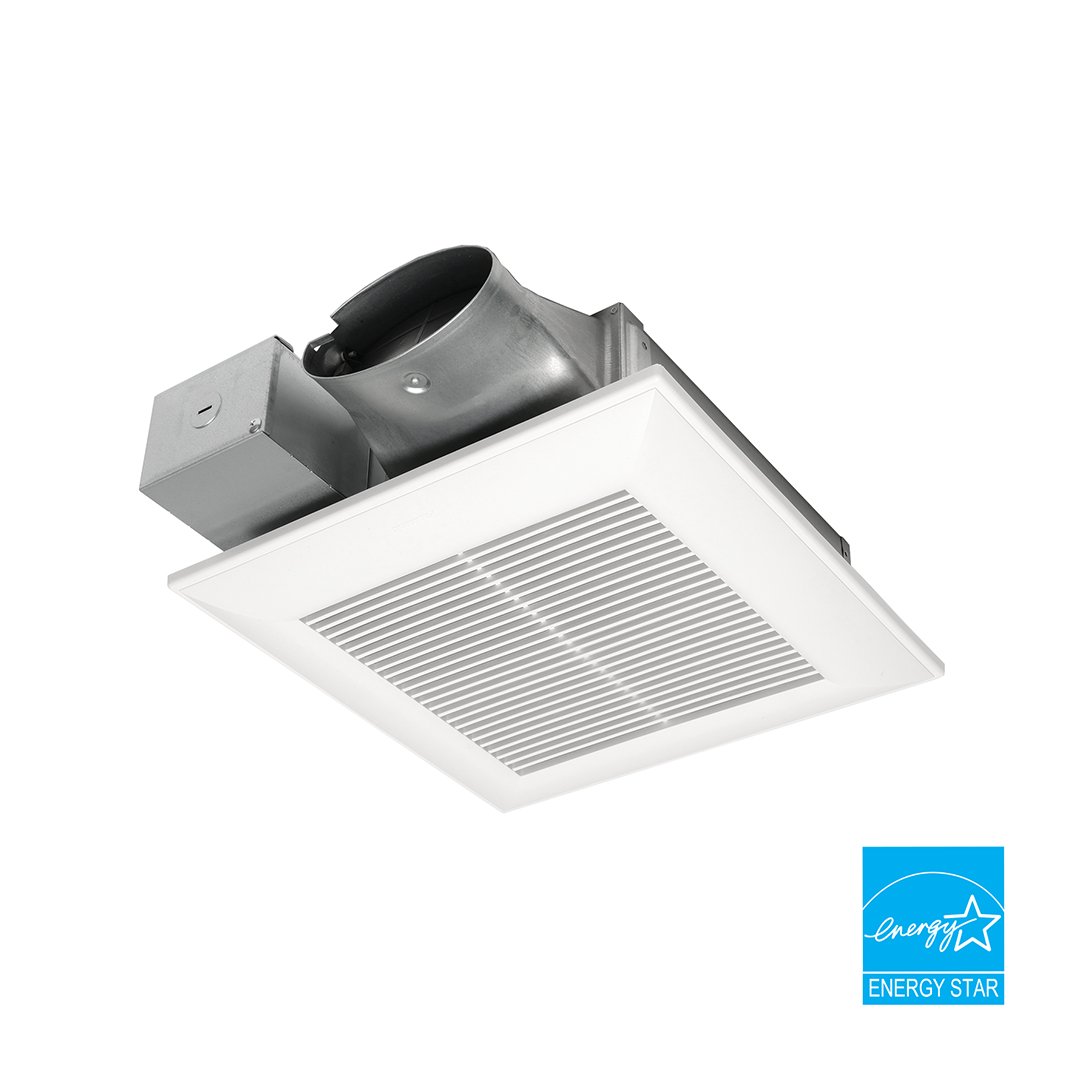

FV-0510VS1 main image
whisper value DC logo
energy_star_logo
smartflow

WhisperValue® DC Pick-A-Flow®, 50-80-100 CFM

Model:

  • FV-0510VS1
Featured Specs

The WhisperValue® DC exhaust fan FV-0510VS1 is the ultimate low-profile spot ventilation fan, ideal for residential construction, including single-family homes, multi-family buildings, and manufactured homes. Featuring a revolutionary ECM motor with SmartFlow™ technology, it combines exceptional performance with an ultra-slim design, making it the lowest-profile ENERGY STAR®-rated fan on the market.

One of its standout features is the Pick-A-Flow® Airflow Selector, which lets you choose between 50, 80, or 100 CFM. This customizable airflow ensures the fan meets a variety of ventilation requirements, stays compliant with building codes, and minimizes the chance of callbacks.

Contact Sales Find A Dealer

  • Customizable Airflow with Pick-A-Flow® Selector: Select the CFM that suits your space—50, 80, or 100 CFM—for precision airflow and optimal performance.
  • SmartFlow™ Technology: Automatically adjusts the fan’s speed to maintain peak performance, saving energy and ensuring the best CFM output.
  • Lowest Profile Design: With a housing depth of just 3-3/8", this is the slimmest ENERGY STAR® certified fan available, making it perfect for tight spaces and easy installation, even in 2x4 stud walls.
  • Easy Installation: The unique L-shaped bracket offers strong support and simplifies installation, while its UL-approved design allows for ceiling or wall mounting.
  • Cost-Effective Wall Installation: Wall-mounted installation eliminates the need for expensive radiation dampers in fire-rated ceilings, making it an ideal choice for multi-family projects.
  • Code Compliance: Fully compatible with ASHRAE 62.2, IAP, California Title 24, CALGreen, and WA Ventilation Code, ensuring it meets the most stringent industry standards.
  • Warranty: 6 years ECM Motor, 3 years all other parts

  • 24 gauge steel, fire code rated 4” oval to 3” round duct adapter, sold separately (model #FV-VS43R)

  • Transfer Register Box (model # FV-JD, sold separately), provides room-to-room powered circulation with ductless heat pumps

  • UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)

  • UL listed for tub/shower enclosure when GFCI protected

Featured Specs

Model FV-0510VS1
Air Volume Exhaust (CFM) 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
Master Carton Dimensions (HxWxD) 6.89 x 14.25 x 16.73
CFM 50-70. 80-110
Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Construction Type Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
Current (Amps) 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
Ventilation Design Approach Ventilation Design Approach
Duct Diameter 4" Oval
Energy Efficiency (CFM/Watt) 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
ENERGY STAR® Certified Yes
Fan Type Fan Only
Grille Size (in sq.) 13"
Industry Residential. Light Commercial
Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Mounting Options Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL)
Noise (Sones)

50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3
Power Consumption (Watts) 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
Power Rating (V/Hz) 120/60
Product Family Name WhisperValue DC
Radiation Damper Available Yes
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
Warranty 6 year DC Motor, 3 Year Parts
Master Carton Gross Weight (lbs.) 8.82

Installation Video

WhisperValue® DC FV-0510VS1 50-80-100 CFM, Lowest Profile, Ceiling or Wall Mount Fan

WhisperValue® DC FV-0510VS1 Fan is the perfect multifamily solution; also ideal for single family and manufactured homes. As the lowest-profile ENERGY STAR® certified fan available, it actually fits in a 2x4 stud bay. The low profile, 3-3/8” housing depth and unique L-shaped bracket allow this fan to be installed virtually anywhere - in ceilings or walls.

ECM Motor - The Best Performing, Most Energy Efficient Motor Available

The revolutionary ECM motor with intelligent self-adjusting SmartFlow™ technology senses the amount of resistance in the duct run and automatically adjusts the fan speed to deliver the optimal CFM output, even in the case of a complicated duct run. The Panasonic ECM motor with SmartFlow technology moves more air using less energy, so the fan is more energy efficient and lasts longer.

Pick-A-Flow® Airflow Technology – One Fan, You Choose The CFM

Built-in Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (50-80-100 CFM) with the simple flip of a switch. Being able to choose the proper CFM level gives you the flexibility and assurance that one fan will satisfy a range of ventilation design requirements and perform as promised, even with a complicated duct run.

3-3/8 in. Housing Depth is the Slimmest Design Available

The extremely thin profile WhisperValue DC fan opens up options for where you can install the fan, which is UL listed for ceiling or wall mount. Installing a vent fan in a wall means that you won't need to cut a hole in the fire-rated ceiling and then buy a radiation damper to meet fire-resistance requirements in the building code. In a multifamily housing development, this means Big savings.

Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility with a Simpler Bracket and Optional Duct Adapter

Unique L-Shaped bracket simplifies installation and provides strong support. The L bracket is interchangeable to be positioned to either the left or right side stud for optimal fan placement. Optional 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R)* is available to give you flexibility in duct layout and design. Panasonic fans are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up. * Refer to the Accessories Tab for more information on the 4 in. Oval to 3 in. Round Duct Adapter(FV-VS43R), sold separately.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
