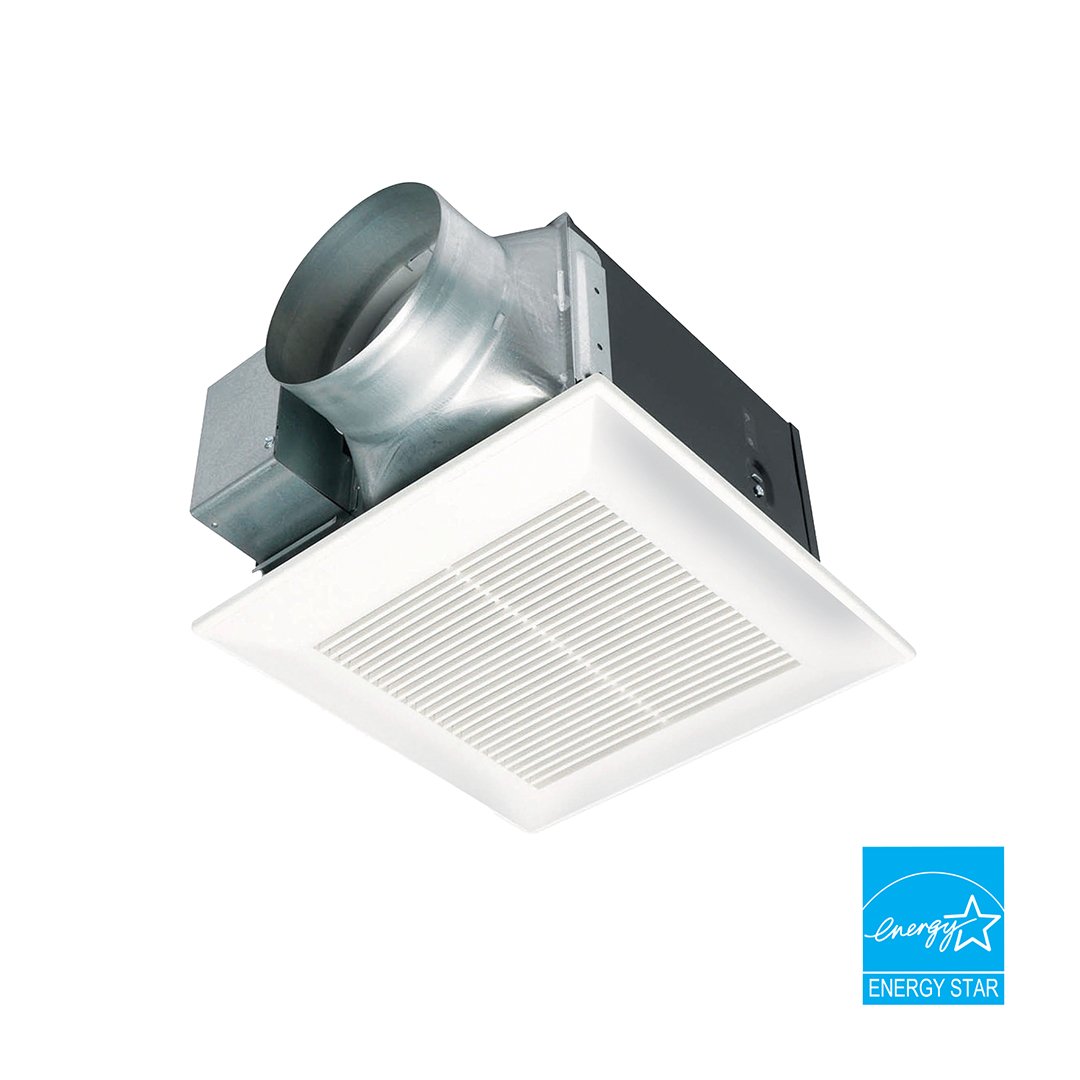

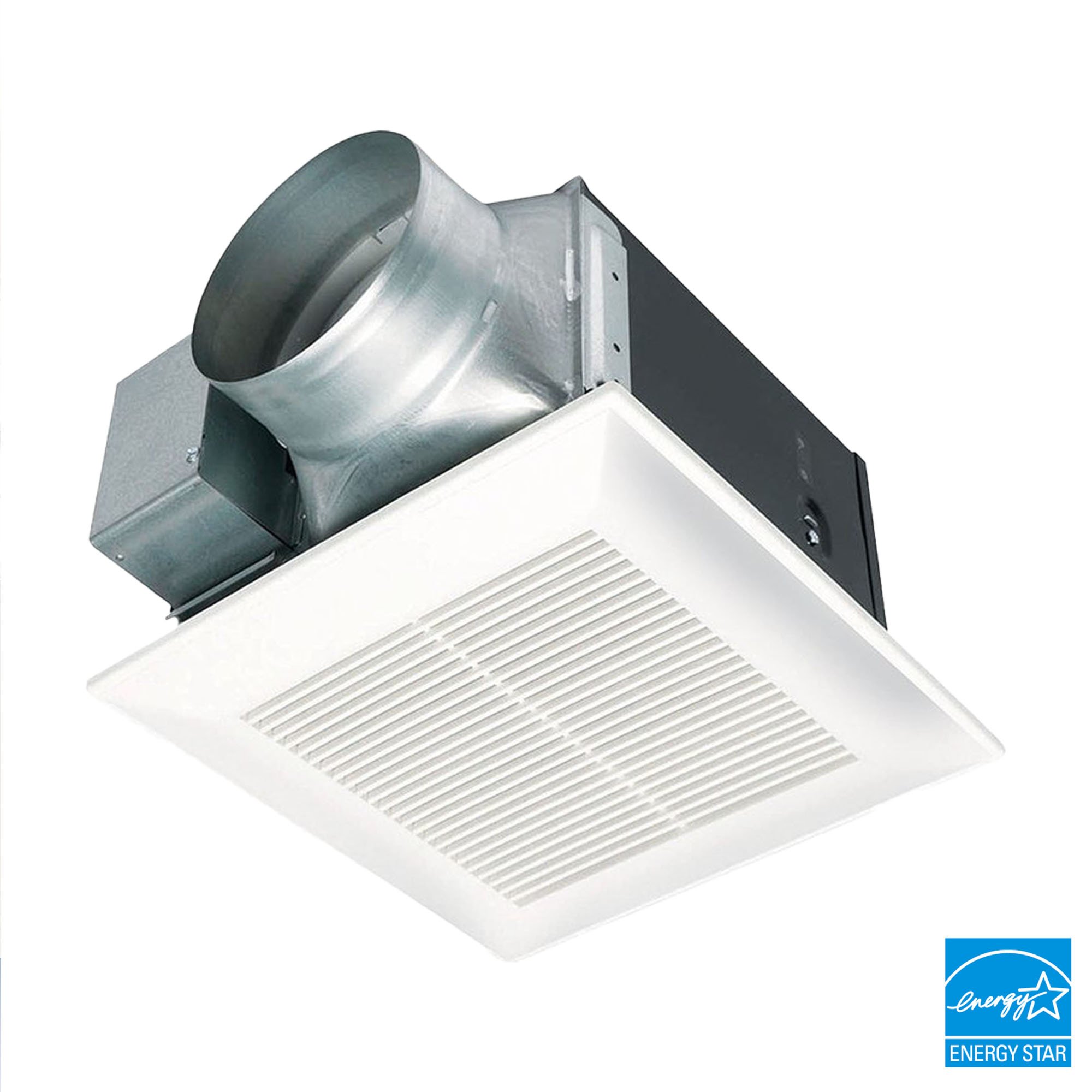

WhisperCeiling® Spot Ventilation Fan, 290 CFM

Model:

FV-30VQ3

WhisperCeiling 290 CFM large volume ceiling mount fan is a time-tested and customer approved powerful, yet quiet and energy efficient solution. Ideal for light commercial applications, it incorporates a 6 in. duct adapter and can be used to comply with the latest codes and standards.

Contact Sales Find A Dealer

Large volume (290) CFM options designed for light commercial applications
UL listed for tub/shower enclosure when GFCI protected
Can be used to comply with ASHRAE 62.2, LEED, IAP, EarthCraft, California Title 24 and WA Ventilation Code

Featured Specs

Model	FV-30VQ3
Advanced Features	Single Speed
Air Volume Exhaust (CFM)	290 @ 0.1" SP, 257 @ 0.25" SP
Master Carton Dimensions (HxWxD)	19-7/16" x 15-1/2" x 12-1/8"
CFM	Greater than 150
Other Approved Codes and Standards	ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Construction Type	single Family/ Manufactured Housing/. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
Current (Amps)	0.53A
Ventilation Design Approach	Continuous Ventilation. Spot Ventilation
Duct Diameter	6"
Energy Efficiency (CFM/Watt)	4.5 CFM/W
ENERGY STAR® Certified	Yes
Fan Type	Fan Only
Grille Size (in sq.)	15
Industry	Residential. Light Commercial
Installation	Ceiling
Motor Type (AC/DC)	AC
Mounting Opening (in sq.)	12-3/16"
Mounting Options	Ceiling Mount. Tub Shower (UL)
Noise (Sones)	290 @ 0.1" SP = 2.0, 257 @ 0.25" SP = N/A
Power Consumption (Watts)	64.0W
Power Rating (V/Hz)	120/60
Product Family Name	WhisperCeiling
Radiation Damper Available	No
UL Listed for Tub/Shower Enclosure when GFCI Protected	Yes
Warranty	3 Year Parts,
Master Carton Gross Weight (lbs.)	18.2

WhisperCeiling FV-30VQ3 290 CFM, Ceiling Mount Fan

WhisperCeiling™ large volume exhaust fans are ideal for light commercial applications. The workhorse of the Panasonic line, they are time-tested and customer approved for their quiet, yet powerful consistency. Rated for continuous use, WhisperCeiling vent fans are a simple way to incorporate an energy efficient ventilation strategy.

We Set the Standard for Quiet Operation

WhisperCeiling fans feature a totally enclosed condenser AC motor and a double-tapered blower wheel to quietly move air-even at twice the static pressure as the industry standard. WhisperCeiling exceeds the performance measurement for ASHRAE 62.2, ENERGY STAR® 3.0, and LEED for Homes.

Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility

WhisperCeiling large volume fans feature a 6 in. duct adapter and fit in 2x8 construction. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fans are UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
