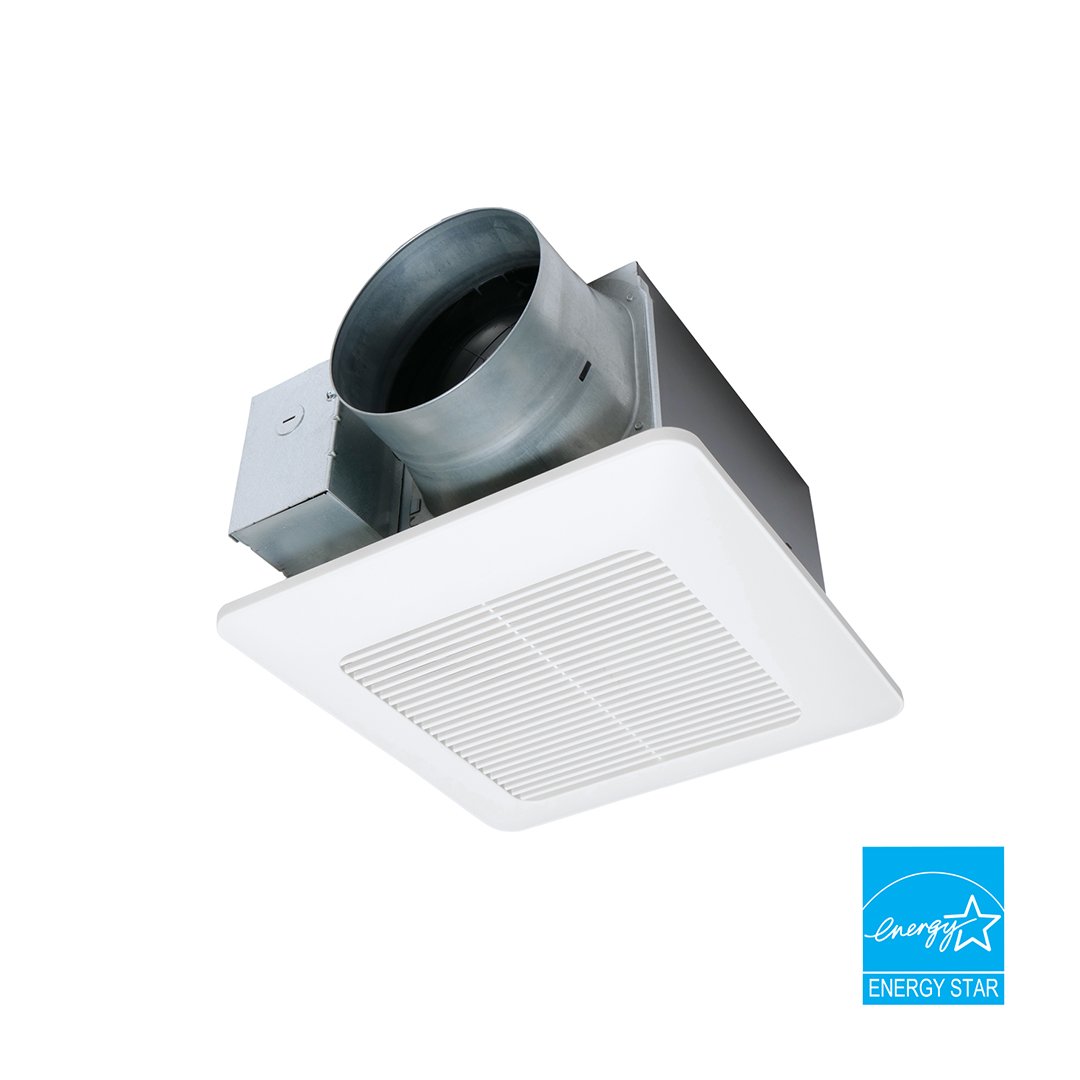

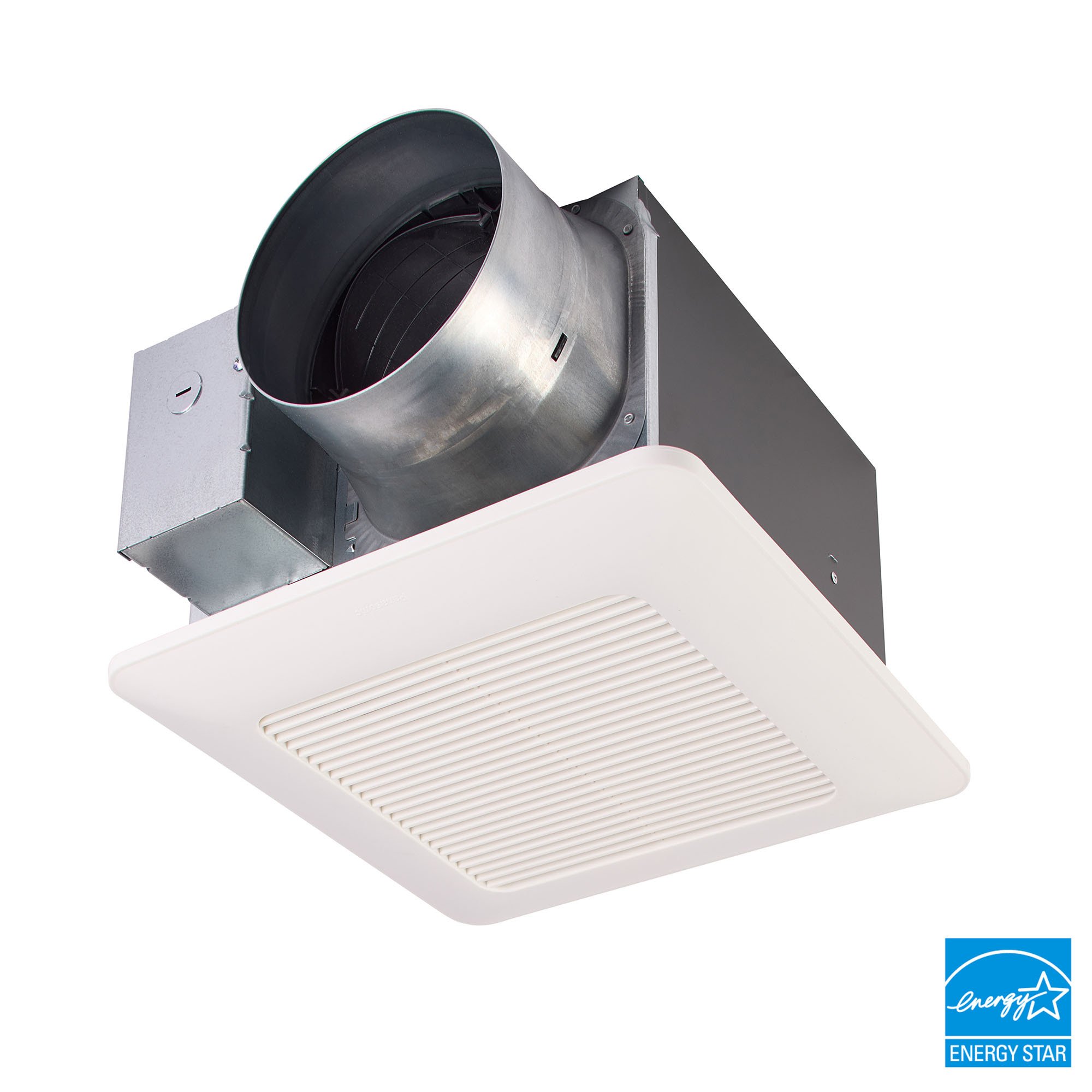

WhisperCeiling® DC with Smartflow™, 110-130-150 CFM

Model:

  • FV-1115VQ1
Featured Specs
WhisperCeiling® DC Precision Spot Ventilation Fan with a built-in Pick-A-Flow® speed selector switch allows you to select your required airflow (110-130-150 CFM). The fan features an ECM Motor with SmartFlow® technology and a Flex-Z Fast® installation bracket. It can be used to comply with the latest codes and standards. This fan is perfect for bathroom ventilation.
Contact Sales Find A Dealer

  • Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
  • • Pick-A-Flow® Speed Selector – one fan, you choose the CFM (110, 130, 150 CFM)
  • Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
  • Elegant grille design compliments the aesthetics of any bathroom

Featured Specs

Model FV-1115VQ1
Advanced Features Single Speed
Air Volume (CFM) 150, 152, 130, 131, 110, 110
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Current (Amps) 0.19, 0.31, 0.16, 0.25, 0.12, 0.20
Duct Diameter 6"
Energy Efficiency (CFM/Watt) 12.9, 7.6, 14.7, 8.5, 16.4, 9.2
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.2
MAX. Current (Amps) 0.31
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Noise (Sones) <0.3, 0.7, <0.3, 0.5, <0.3, <0.3
Power Consumption (Watts) 11.8, 20.2, 9.0, 15.7, 6.8, 12.1
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes

ECM motor with SmartFlow™ technology

WhisperCeiling® DC fans with Smartflow™ are designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace-of-mind, as the installer does not have to worry about compromising the fan’s performance, even with a complicated duct run.

Pick-A-Flow® Speed Technology

Built-in, Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (110-130-150 CFM) with the simple flip of a switch.

Long life and lower operating costs

When you have a household or business to run, you do not want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation flexibility

The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction.

ENERGY STAR® certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

WhisperCeiling® DC™ was awarded 2021 Most Efficient. This mark recognizes WhisperCeiling® DC™ as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
