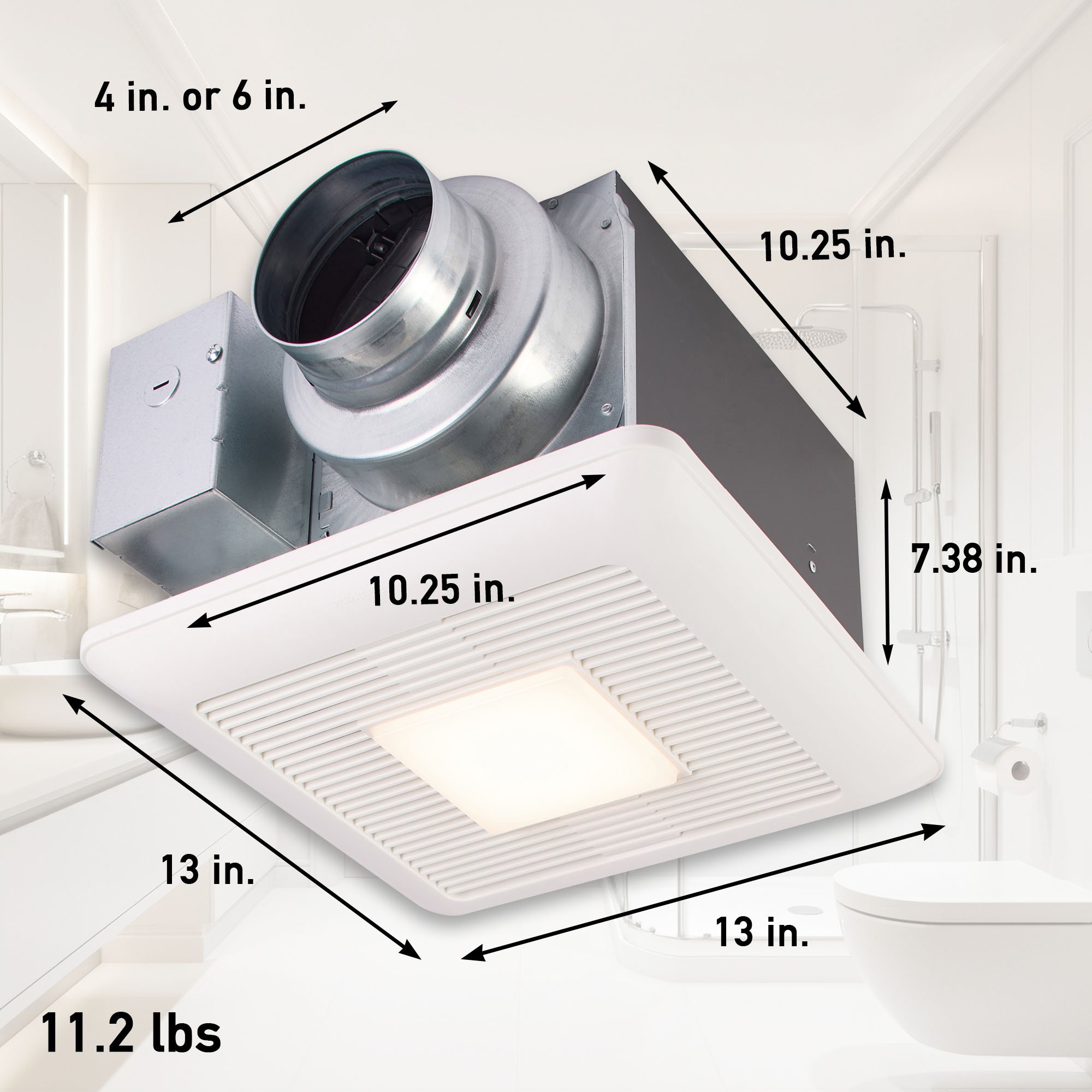

FV-0511VQL1 dimensions-2000x2000
Graphic highlighting powerful airflow performance, whisper-quiet operation, and dimmable LED light.
Installer mounting bathroom exhaust fan using Flex-Z-Fast installation system from below the ceiling.
Modern bathroom featuring ceiling exhaust fan with dimmable 3000K warm white LED nightlight.
Bathroom exhaust fan shown in laundry room, bathroom, and entryway to illustrate suitability for multiple room sizes.
Bathroom exhaust fan shown in laundry room, bathroom, and entryway to illustrate suitability for multiple room sizes.

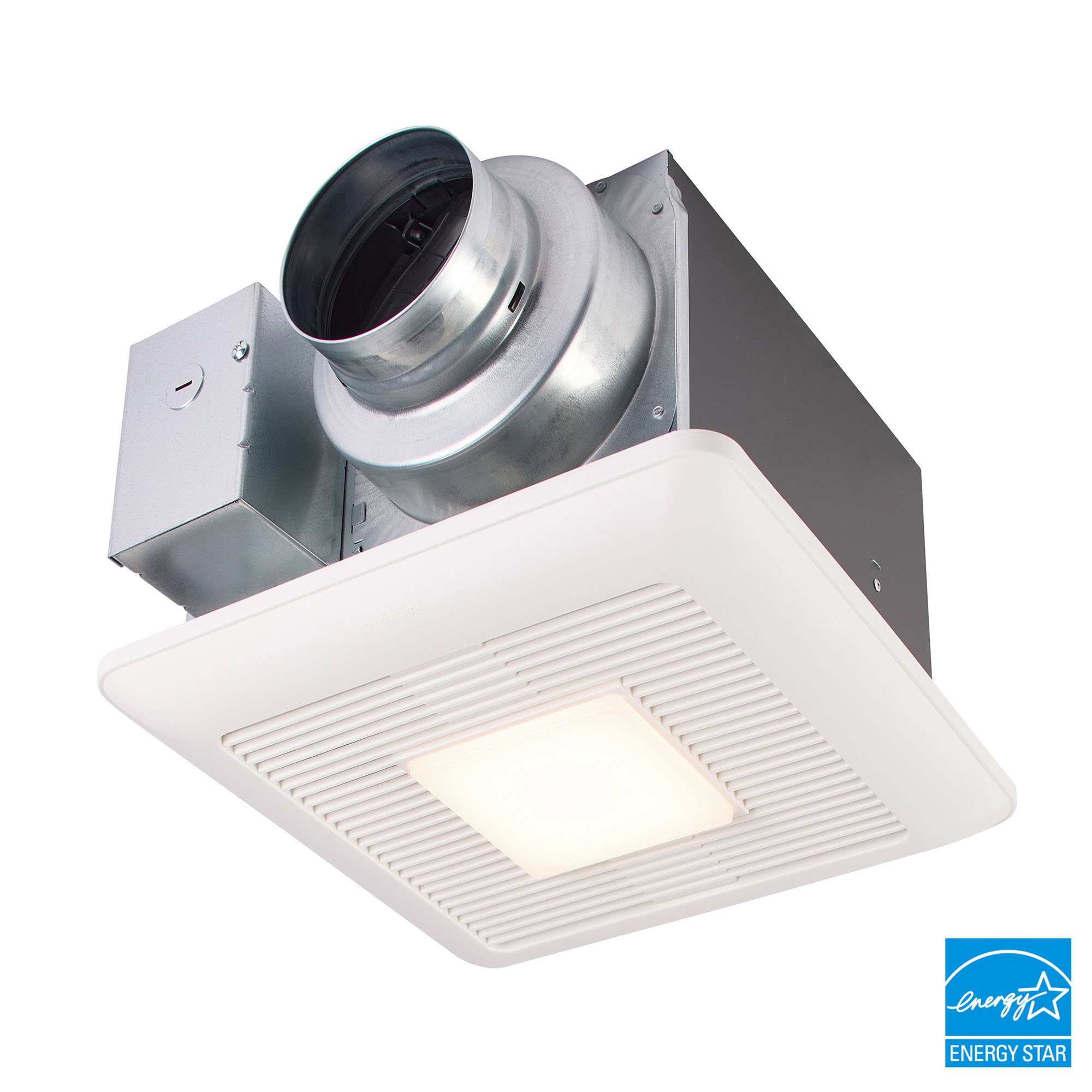

WhisperCeiling® DC, Precision Spot Ventilation Fan/Light & Nightlight, 50-80-110 CFM

Model:

  • FV-0511VQL1
Product Specifications

Featuring the built-in Pick-A-Flow® airflow selector, this ENERGY STAR® certified bathroom exhaust fan with light delivers customizable airflow for powerful ventilation. Warm LED illumination, effective moisture control, and improved air circulation make it an ideal solution for bathrooms, laundry rooms, sunrooms, basements, garages, and other residential spaces.

Contact Sales Find A Distributor

  • One 10W, dimmable, LED chip panel with less than 1W LED nightlight (nightlight must be wired separately)
  • Pick-A-Flow® Airflow Selector, 50-80-110 CFM, and ECM motor with SmartFlow™ Technology for optimum CFM performance to meet code and reduce callbacks
  • Elegant grille design compliments the aesthetics of any bathroom
  • Single-hinged Flex-Z-Fast® bracket provides flexible, fast and easy installation
  • Designed to meet residential ventilation, energy-efficiency, and green building requirements, including ASHRAE 62.2, LEED®, IAP, and California Title 24

Product Specifications

Model FV-0511VQL1
Advanced Features Single Speed
Air Volume (CFM) 110, 110, 80, 83, 50, 50
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Color Rendering Index 90
Color Temperature (Kelvin) 3,000
Current (Amps) 0.18, 0.26, 0.11, 0.19, 0.07, 0.12
Duct Diameter 4" or 6"
Energy Efficiency (CFM/Watt) 10.3, 7.0, 13.7, 7.7, 14.1, 7.8
ENERGY STAR® Certified Yes
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.7
Lamp Watts 10.0
Lumens (lm) 700
Lumens Per Watt (LPW) 70
MAX. Current (Amps) 0.30
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Night Light 0.2
Noise (Sones) 0.4, 0.9, <0.3, 0.6, <0.3, 0.4
Power Consumption (Watts) 10.9, 16.1, 6.0, 11.0, 3.9, 7.1
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Rated Life (hours) 50,000
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Lamp Socket LED Chip
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes

Features & Benefits

Performance and efficiency perfected with precision spot ventilation fan/LED Light combo

WhisperCeiling DC fans with Smartflow™ technology come from a line of time-tested and customer-approved quiet yet powerful and energy-efficient ventilation fans. This precision spot ventilation solution improves IAQ by effectively removing moist, polluted air from your bathroom, laundry room, sun room, basement or garage.

ECM motor with SmartFlow® technology

WhisperCeiling DC with Smartflow™ technology is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.

Pick-A-Flow® Speed Technology

Built-in Pick-A-Flow® speed selector provides the unique ability to select your required airflow (110-130-150 CFM) with the flip of a switch.

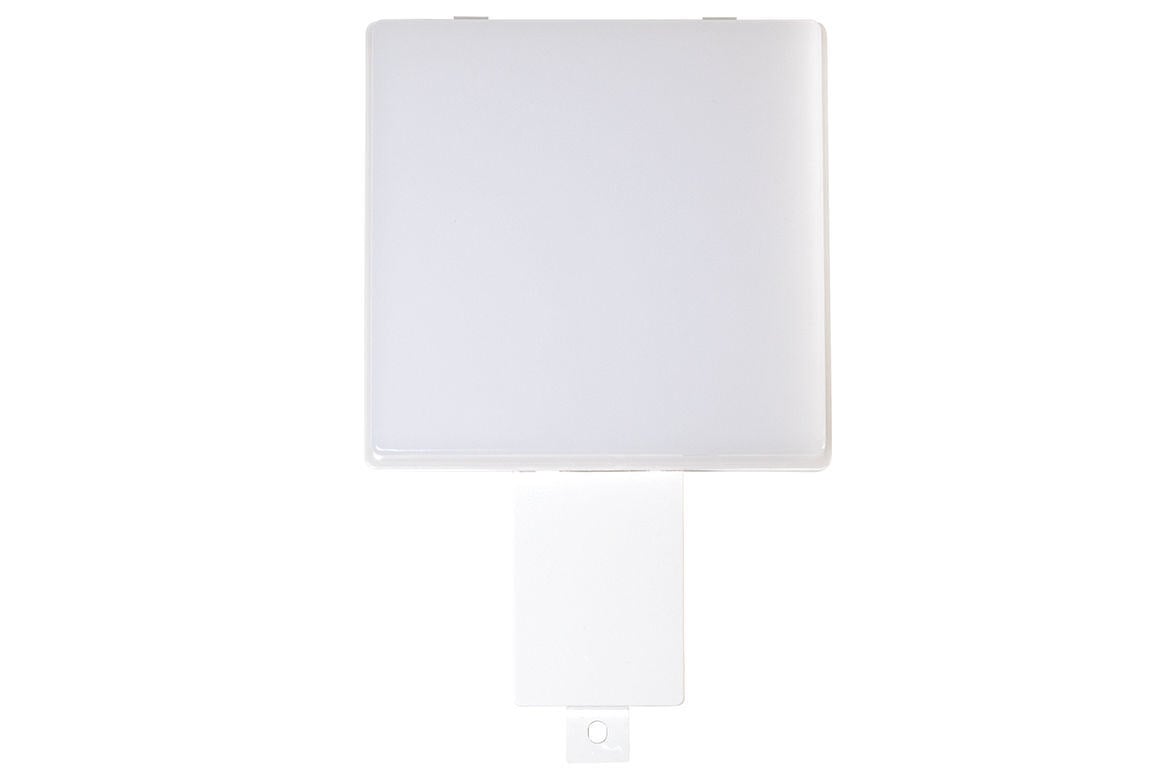

LED Lighting

Fan/light models feature a contemporary flush mount grille that incorporates a long-life 10W dimmable LED chip panel with less than 1W LED night light for warm, lasting energy-efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/ 50,000 hours rated average

Long life and lower operating costs

Whether you're running a household or a business, you shouldn't have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure.

Installation flexibility

The Flex-Z Fast® installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. An integrated dual 4" or 6" duct adapter gives greater flexibility in duct layout and design.

ENERGY STAR® certified for energy savings

ENERGY STAR®-certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.

WhisperCeiling DC was awarded 2018 Most Efficient. This mark recognizes WhisperCeiling DC as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR.
