Recessed Inlet® for Exhaust and Supply Inlets

Model:

  • FV-NLF46RES
Product Specifications
Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.
Contact Sales Find A Distributor

  • Incorporates an architectural-grade, recessed, can light design with 6" aperture

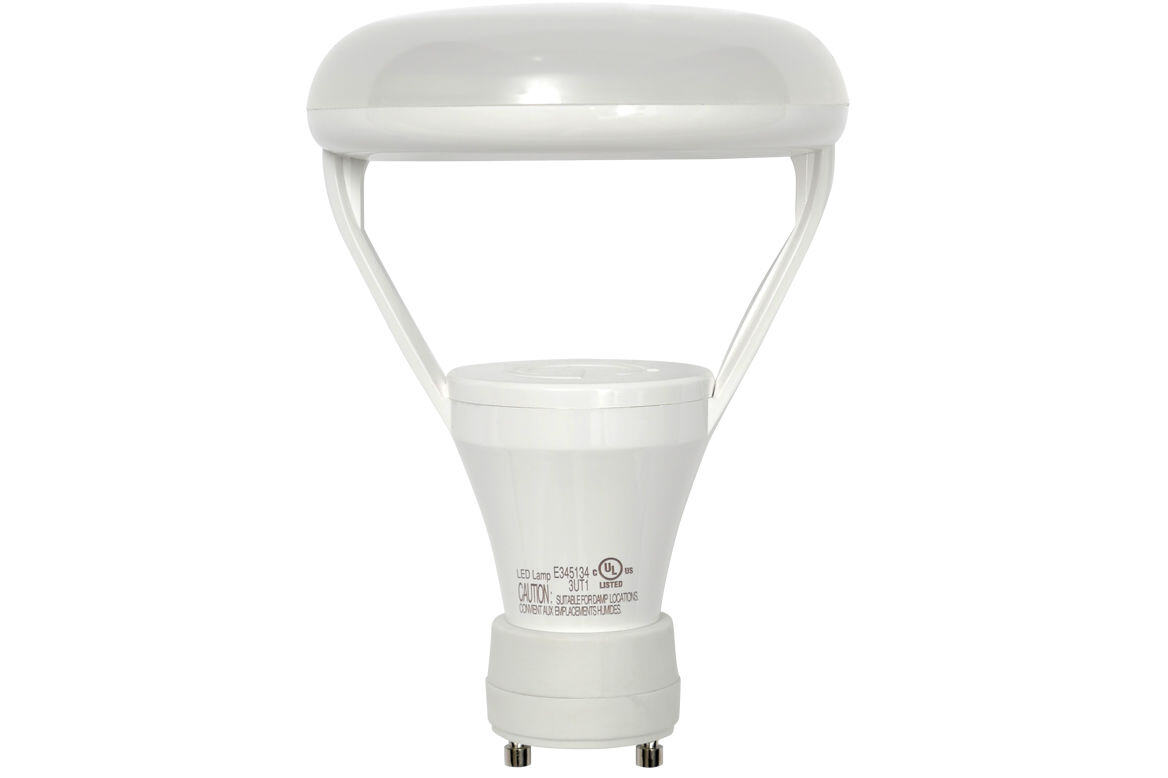

  • Includes (1) replaceable 11W, ENERGY STAR® 2.0 certified, GU24 base dimmable LED lamp
  • Ultra-energy efficient LED lamp uses up to 40% less energy than CFLs

Product Specifications

Model FV-NLF46RES
Additional info *Only for Lamp
Advanced Features Single Speed
California Title 24 Compliant Yes
Color Rendering Index 92
Color Temperature (Kelvin) 2,700
Construction Type Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
Ventilation Design Approach Continuous Ventilation. Spot Ventilation.
Duct Diameter 4" & 6"
ENERGY STAR Qualified Yes*
Fan Type Fan/Light - LED
Gross Weight (lbs) 6.9
Housing Collar Opening (Inches) 6" Round
Industry Residential. Light Commercial.
Inlet Inlet Unit
Lamp Model # (Green Creative) 11BR30G4DIM/927/GU24
Lamp Watts 1 x 11
Lumens (lm) 750
Lumens Per Watt (LPW) 69
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) N/A
Mounting Options Ceiling Mount (UL). Tub/Shower (UL)
Power Rating (V/Hz) 120/60
Product Family Name Recessed Inlet
Rated Life (hours) 25,000
Trim Outer Diameter (Inches) 7-1/4" Round
Type of Lamp Socket GU24
UL tub/Shower Enclosure Yes

The Design Solution for Exhaust or Supply Inlets

Recessed Inlet® is a multi-purpose exhaust or supply inlet that is ideal for use with remote mount in-line fans or H/ERV’s, or as a light-only option matching the WhisperRecessed® fan/LED light.

Recessed Inlet is an attractive way to remove moist, polluted air from the home or distribute fresh air to multiple rooms when needed. Its upscale, recessed, can light appearance complements the aesthetics of any bathroom, living room or laundry room area.

Recessed Inlet includes an 11 Watt, ENERGY STAR® 2.0 certified, GU24 base LED lamp, and is also UL listed for tub/shower enclosure when GFCI protected.

Additional Features and Benefits:

  • Integrated 4" or 6" duct adapter
  • UL listed for tub/shower enclosure when GFCI protected
  • IC rated
  • 5-year warranty on LED, 3-year warranty on parts
