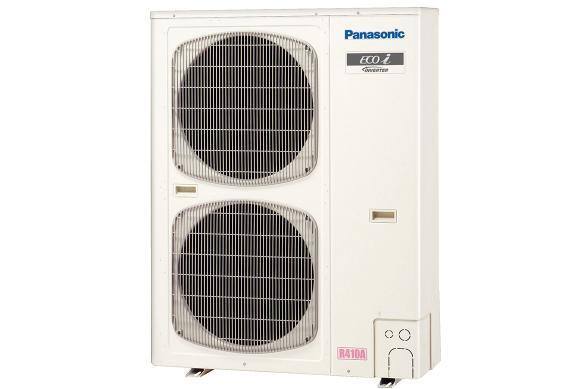

U-36LE1U6 LE Series VRF Heat Pump 208/230V
Panasonic 208/230 Volts Single Phase Heat Pump Variable Refrigerant flow outdoor unit with Inverter Compressor and Variable Speed Condensing Fan. This product is capable of delivering heating or cooling to multiple zones, delivering excellent levels of comfort and Operational Efficiency.
- Capacity 3 tons
- Connectable capacity up to 130 %
- Indoor unit connection – Up to 6
- Quiet mode setting
- SEER up to 17
- ECOi Brochure U-36LE1U6 (PDF)
- Installation Manual - U-36LE1U6
- Intelligent Controller Installation Manual - U-36LE1U6
- CZ-64ESNC1U Installation Manual (PDF)
- CZ-CFUNC1U Installation Manual (PDF)
- CZ-CLNC1U Installation Manual (PDF)
- CZ-RE2C2 Installation Manual (PDF)
- CZ-RELC2 Installation Manual (PDF)
- CZ-RWSKI1U - Installation Manual (PDF)
- CZ-RWSU2U Installation Manual (PDF)
- Parts List - U-36LE1U6
- Mini VRF System Air Conditioner (PDF)
- Installation Instructions - U36LE1U6 (PDF)
- U-36LE1U6 BIM Model (BIM) (PDF)
Product Specifications
| SKU | U-36LE1U6 |
|---|---|
| Capacity (BTU) | 36000 |
| Capacity (Tons) | 3 |
| Capacity Cooling (BTU/H) | Ducted: 37,000 Non-Ducted: 39,000 Mix: 39,000 |
| Cooling Mode: Indoor Conditions (°F WB/°F DB) | 80/67 |
| Cooling Mode: Outdoor Conditions (°F DB) | 95 |
| Capacity Heating (BTU/H) | Ducted: 38,500 Non-Ducted: 43,000 Mix: 41,500 |
| Heating Mode: Indoor Conditions (°F DB) | 70 |
| Minimum Circuits Amps (MCA) (A) | 18 |
| Outdoor Capacity | Up to 42000 BTU |
| Outdoor Unit | Mini ECOi |
| Power Input - Cooling (W) | 2.76 |
| Power Input - Heating (W) | 2.88 |
| Power Supply (V, Phase, Hz) | 208 / 230V 60Hz |
| Salt Protection | Yes |
| System | Mini ECOi |
| Type | Heat Pump |
| Unit | ECOi VRF System |
