discontinued

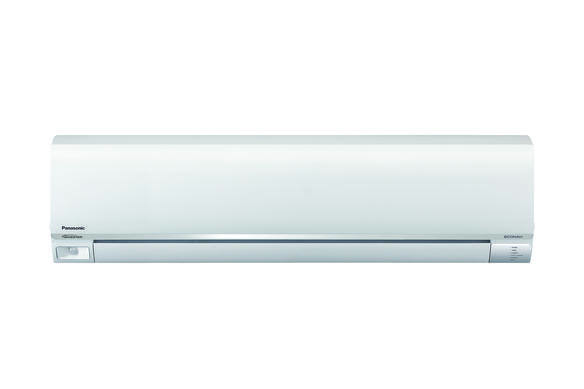

Single or Multi-Zone - Interior Wall Mount Unit
24,000 Btu indoor wall mount unit for single or multi-zone installations. Use with specified single-zone outdoor unit or one of multi-zone outdoor units.
- Residential_Air_Conditioning_Catalog_en
- Submittal Sheet - HVAC - Interior Wall Mount - CS-E24RKUAW
- Installation Manual / Manuel d'installation - E24RKUA (English-Français)
- Operating Manual / Manuel d'utilisation - E24RKUA (English / Français)
- Service Manual - HVAC - E24RKUA
- Replacement Parts List - HVAC - Indoor Unit - E24RKUA
- Heat Pump Solutions Catalog (R410 refrigerant)
Featured Specs
| SKU | CS-E24RKUAW |
|---|---|
| Indoor Unit | CS-E24RKUAW |
| Outdoor Unit | Single/Multi Zone |
| Capacity Cooling (Btu/h) / KW | 24,000 (5,800 - 27,200) |
| Capacity Heating (Btu/h) / KW | 28,800 (5,800 - 29,200) |
| Moisture Removal - High (pints/H) | 7.6 |
| Dry Air Flow - High (CFM) | 715 |
| SEER - Cooling | -- |
| EER - Cooling | -- |
| HSPF - Heating | -- |
| Power Supply (V, Phase, Hz) | 230 / 208V, Single phase, 60Hz |
| Power Input - Cooling (W) | 2,350 (430-2,720) |
| Power Input - Heating (W) | 2,500 (380-2,660) |
| Dimensions (indoor) (H x W x D) | 11-7/16" x 42-5/32" x 9-15/32" |
| Dimensions (outdoor) (H x W x D) | -- |
| Weight (indoor/outdoor) (Lbs) | 26/-- |
