discontinued

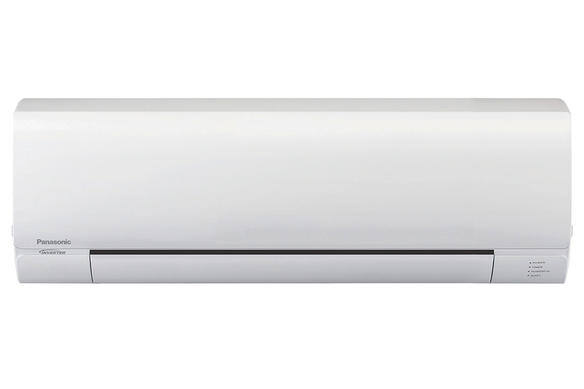

Single or Multi-Zone - Interior Wall Mount Unit (12K BTU)
12,000 Btu Indoor wall mount unit for single or multi-zone installations. Use with specified single-zone outdoor unit or one of multi-zone outdoor units.
- Residential Heat Pump Solutions Catalog - 2020
- Submittal Sheet - HVAC - Interior Wall Mount - CS-E12RKUAW
- Installation Manual / Manuel d'installation - E12RKUA (English-Français)
- Operating Manual / Manuel d'utilisation - E12RKUA (English-Français)
- Service Manual - HVAC - E12RKUA
- Replacement Parts List - HVAC - Indoor Unit - E12RKUA
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | CS-E12RKUAW |
|---|---|
| Indoor Unit | CS-E12RKUAW |
| Outdoor Unit | Single or Multi Zone |
| Capacity Cooling (Btu/h) / KW | 10,900 (6,100-13,000) |
| Capacity Heating (Btu/h) / KW | 15,300 (4,100-19,000) |
| Moisture Removal - High (pints/H) | 1.3 |
| Dry Air Flow - High (CFM) | 475 |
| SEER - Cooling | -- |
| EER - Cooling | -- |
| HSPF - Heating | -- |
| Power Supply (V, Phase, Hz) | 230 / 208V, Single phase, 60Hz |
| Power Input - Cooling (W) | 800 (340-1,360) |
| Power Input - Heating (W) | 1,230 (200-2,100) |
| Dimensions (indoor) (H x W x D) | 11-7/16" x 34-9/32" x 8-7/16" |
| Dimensions (outdoor) (H x W x D) | -- |
| Weight (indoor/outdoor) (Lbs) | 20/-- |
