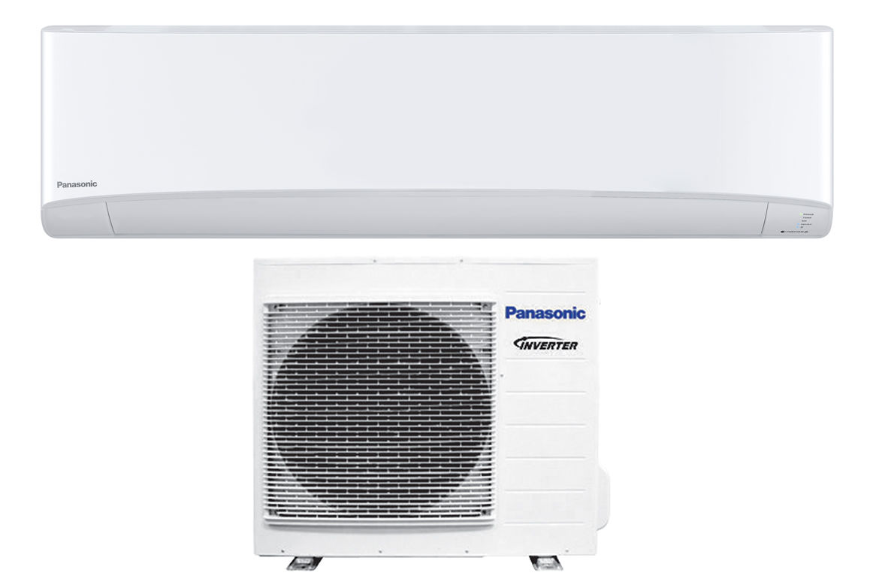

ClimaPure® XE Series Single Split System (18K BTU)
The new ClimaPure™ XE ductless heating and air conditioning system features nanoe™ X — a built-in air purification technology that provides a comfortable environment for occupants by reducing pollutants and odors. nanoe™ X penetrates deep into the fibers of carpets and furniture to inhibit pollutants and odors. Featuring whisper-quiet heating and cooling and advanced built-in air purification technology, the XE series sets a new standard for a comfortable indoor environment.
- Nanoe™ X air and surface purification system
- -15°F cold climate heating operation
- Built-in Wi-Fi connects to Panasonic control app
- High SEER2 and ENERGY STAR® rated
- Commonly specified where rebate programs apply
- XE18WKUA Specification Guide (PDF)
- Mini Split Product Line Sheet (PDF)
- XE18WKUA Indoor Parts List (PDF)
- XE18WKUA Outdoor Parts List (PDF)
- XE18WKUA Operation Manual (PDF)
- XE18WKUA Installation Manual (PDF)
- XE18WKUA Service Manual (PDF)
- XE18WKUA Submittal Sheet (PDF)
- CS-XE18WKUAW Submittal Sheet (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specification
| SKU | XE18WKUA |
|---|---|
| Indoor Unit | CS-XE18WKUAW |
| Outdoor Unit | CU-XE18WKUA |
| Capacity Cooling (Btu/h) / KW | 17200(3300~19800) |
| Capacity Heating (Btu/h) / KW | 20400(5800~30000) (14000 at 17°F) |
| Moisture Removal - High (pints/H) | 3.6 |
| Dry Air Flow - High (CFM) | 560 |
| SEER2 | 22.00 |
| EER2 | 13.20 |
| HSPF2 - Region 4 / Region 5 | 10.90 / 8.50 |
| Power Supply (V, Phase, Hz) | 230/208V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 6.2/6.9 |
| Power Input - Cooling (W) | 1300 |
| Running Amps - Heating (A) | 7.7/8.7 |
| Power Input - Heating (W) | 1630 |
| Low Ambient Control | Equipped |
| Fuse or Circuit Breaker Capacity (A) | 25 |
| Wi-Fi | Built-in |
| Wireless Remote Controller | Included |
| Wired Remote Controller (optional) | Optional |
| Fan Speeds | 5 speeds + Auto |
| Timer | 24hr Program |
| Air Filter | Stage 1 (Included) Stage 2 (Optional) |
| Refrigerant | R410a |
| Refrigerant Control | Electric Expansion Valve |
| Refrigerant Pipe Length (ft) | 9.8 - 65.6 |
| Refrigerant Piping -Type | Flare |
| Elevation Difference - Outdoor Above (ft) | Max. 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max. 49.2 |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 47/39/36 |
| Operation Sound - Outdoor (Hi) (dB-A) | 52 |
| Height Indoor (Inches) | 11-29/32 |
| Width Indoor (Inches) | 43-13/32 |
| Depth Indoor (Inches) | 9-5/8 |
| Height Outdoor (inches) | 31-5/16 |
| Width Outdoor (Inches) | 34-15/32 |
| Depth Outdoor (Inches) | 12-5/8 |
| Net Weight Indoor (Lbs.) | 33 |
| Net Weight Outdoor (Lbs.) | 132 |
| ENERGY STAR® Certified | Yes |
Ozone concentration during the nanoe™ X generating mode has been verified by California Air Resources Board (CARB) and INTERTEK respectively per authorized testing standards.
- Standard value of California Air Resources Board (CARB): 0.05ppm or lower
- Standard value of INTERTEK “Verified Zero Ozone”: 0.005ppm or lower
