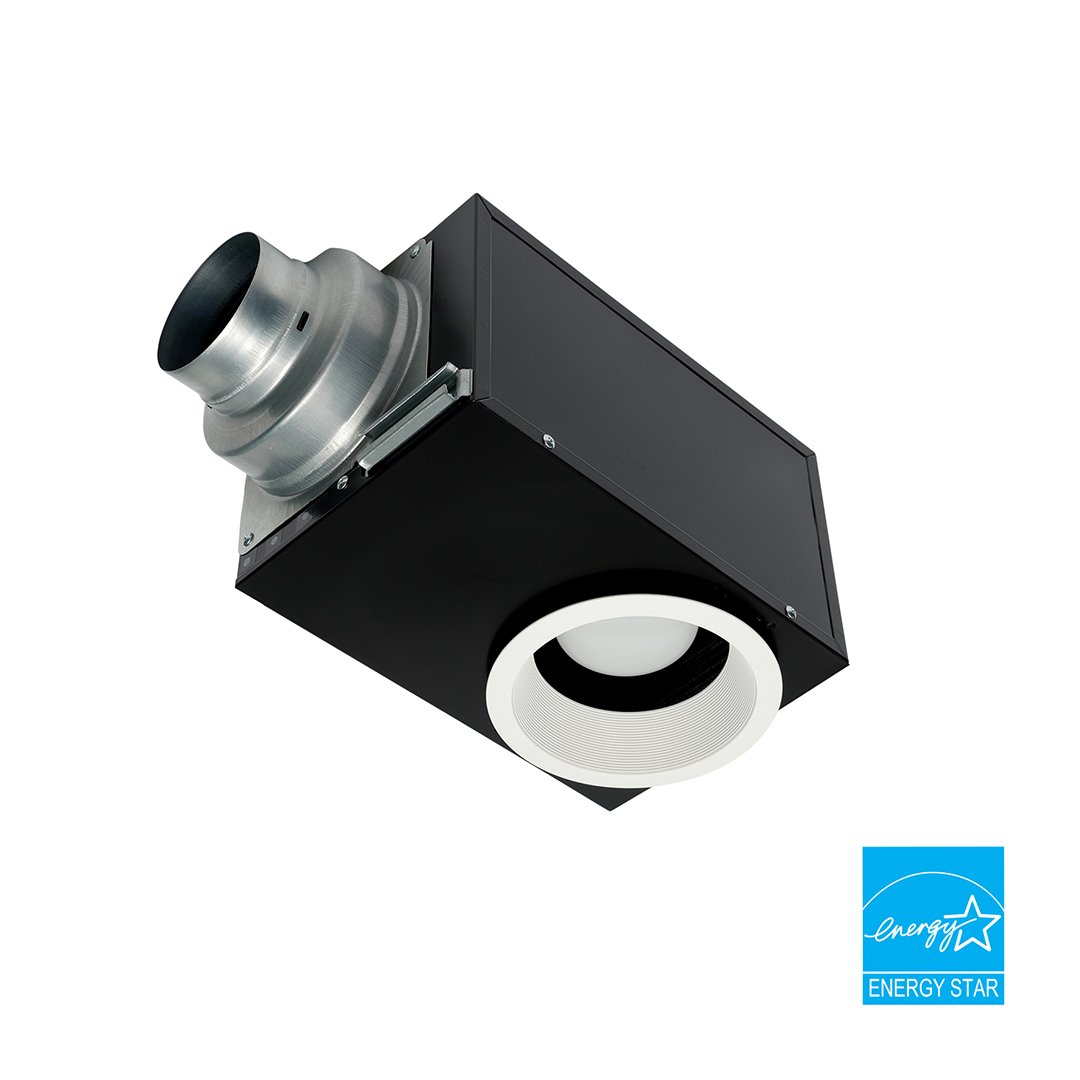

WhisperRecessed® LED Designer Fan|Light 80 CFM

Model:

  • FV-08VRE2
Featured Specs
WhisperRecessed LED incorporates a powerful, yet quiet 80 CFM fan behind an elegant recessed LED light. Includes a dimmable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp, beautiful lighting with 6" aperture and advanced luminaire design. Can be used to comply with the latest codes and standards.
Contact Sales Find A Dealer

  • Architectural grade recessed fan/LED light
  • Ideal for use in bathrooms, living rooms or laundry rooms
  • Quiet and powerful 80 CFM ventilation hidden above the ceiling
  • (1) replaceable 8W, ENERGY STAR® 2.0 certified GU24 base LED lamp
  • Beautiful lighting with 6" aperture and advanced luminaire design

Featured Specs

Model FV-08VRE2
Additional info *Can be used to comply with CALGreen when controlled by the Panasonic Condensation Sensor Plus. NOTE: 0.25" w.g. = Installed Performance
Advanced Features Single Speed
Air Volume (CFM) 80, 66
Air Volume Exhaust (CFM) 80 @ 0.1" SP, 66 @ 0.25" SP
Blower Wheel Type Sirocco
CALGreen Yes*
California Title 24 Compliant Yes
CFM 80
Color Rendering Index 92
Color Temperature (Kelvin) 2,700
Construction Type single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
Current (Amps) 0.15
Ventilation Design Approach Continuous Ventilation. Spot Ventilation
Duct Diameter 4" & 6"
Energy Efficiency (CFM/Watt)

4.4
ENERGY STAR® Certified Yes
Fan Type Fan/Light - LED
Gross Weight (lbs) 10.4
Housing Collar Opening (Inches) 6-1/2" Round
Industry Residential. Light Commercial
Lamp Model # (Green Creative) 8BR30DIM927/GU24
Lamp Watts 1 x 11
Lumens (lm) 720
MAX. Current (Amps) 0.19
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) AC
Mounting Options Ceiling Mount (UL). Tub/Shower (UL)
Noise (Sones) 80 @ 0.1" SP = 1.0, 66 @ 0.25" SP = 0.8
Power Consumption (Watts) 18.5
Power Rating (V/Hz) 120/60
Product Family Name WhisperRecessed LED
Rated Life (hours) 25,000
Speed (RPM) 1342 1480 1342
Static Pressure in inches w.g. 0.1, .25
Thermal Fuse Protection Yes
Trim Outer Diameter (Inches) 7-1/4" Round
Type of Lamp Socket GU24
Type of Motor Bearing

Ball
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes

WhisperRecessed LED FV-08VRE2 80 CFM, Architectural Designed, Ceiling Mount Fan/Light

Panasonic continues to light the way in innovative ventilation technology, and now we're putting a spotlight on design with an architectural grade recessed light fixture that provides powerful, yet quiet ventilation. This 80 CFM exhaust fan disappears behind the ceiling and doesn't skimp on function: ideal for bathroom, living room and laundry room. Clean air and clean design add up to a cleaner environment with energy efficient WhisperRecessed LED™.

LED Lamp Provides Warm, Energy Efficient Illumination

WhisperRecessed LED now includes a more cost effective, energy efficient 8W ENERGY STAR® 2.0 certified, GU24 base, dimmable LED lamp. WhisperRecessed LED uses an ultra energy efficient LED lamp.

Long Life Means Reduced Costs

When you have a household or business to run, you don't want to have to replace little things like a vent fan. Panasonic fan/light combinations use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation Flexibility

WhisperRecessed LED incorporates an integrated dual 4 in. or 6 in. duct adapter to give you flexibility in duct layout and design. For short runs, you can go with a smaller duct size, but long runs are OK, too - just move up to 6 in. duct. The double hanger-bar system (expandable up to 24 in.) is ideal for positioning the fan exactly where you want it. Panasonic fan/light combinations are also UL listed for tub/shower enclosure (just install them on a GFCI-protected circuit). With these great features, your installation options open up.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
