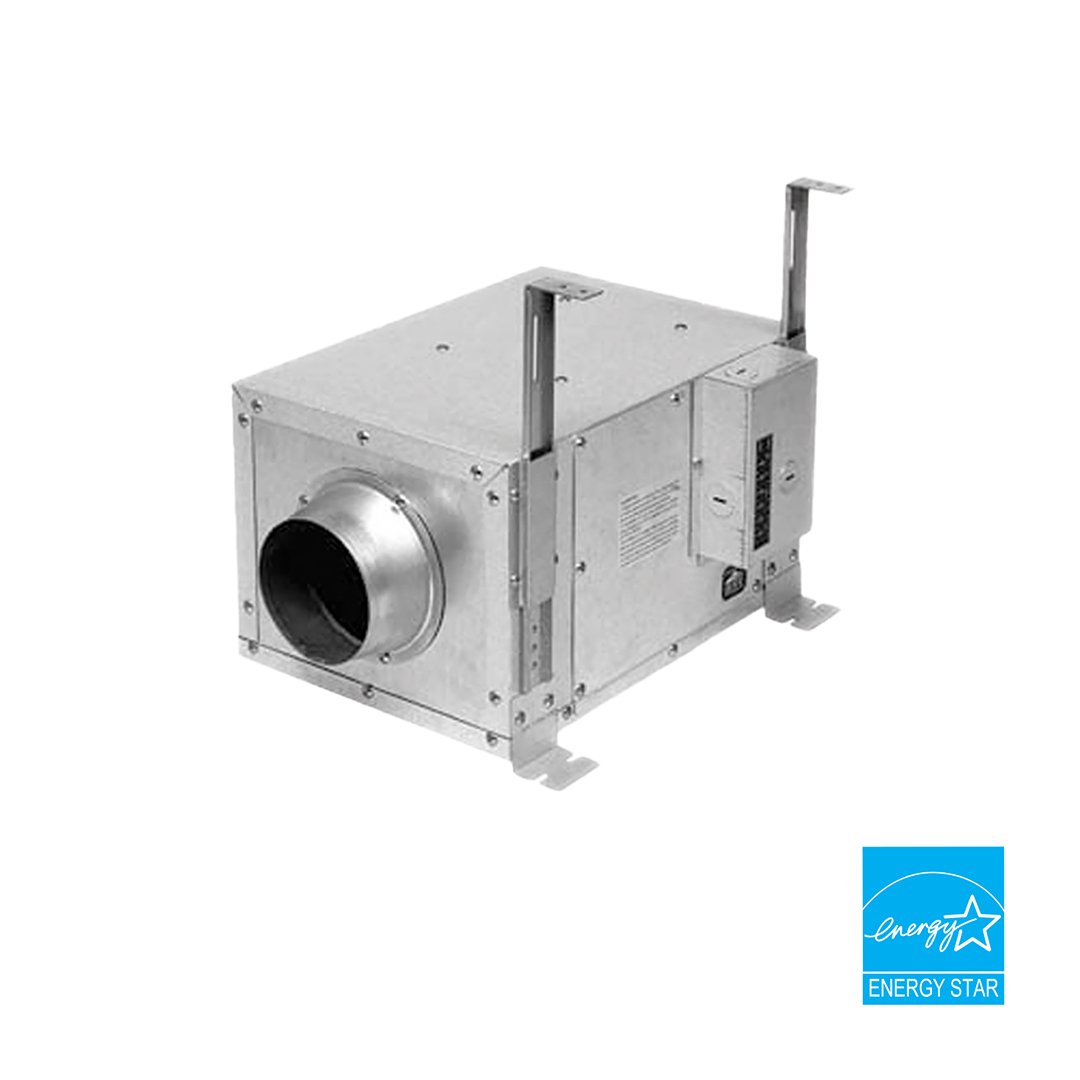

WhisperLine® Remote-Mount, In-Line Fan, 240 CRM

Model:

  • FV-20NLF1
Featured Specs
The WhisperLine® remote-mount, in-line fan is for single or multiple inlets. Its insulated housing prevents condensation and noise; the tapered 8” duct adapter provides an easy connection. It features five positions for installation. Joist or truss attachment brackets and suspension brackets are included. It can be used to comply with the latest codes and standards.
Contact Sales Find A Dealer

  • Remote-mount, in-line fan for single or multiple inlets
  • Insulated housing to prevent condensation and noise
  • Tapered duct adapter for easy connection
  • Five positions for installation
  • Joist or truss attachment brackets included

Featured Specs

Model FV-20NLF1
Advanced Features Single Speed
Air Volume Exhaust (CFM) 240 @ 0.2" SP, 225 @ 0.3" SP, 200 @ 0.4" SP
Master Carton Dimensions (HxWxD) 14-11/16 x 20-3/8 x 11-3/8
CFM Greater than 150
Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Construction Type Single Family/Manufactured Housing. Renovation/Remodeling.
Current (Amps) 0.46A
Ventilation Design Approach Spot Ventilation. Continuous Ventilation.
Duct Diameter 6"
Energy Efficiency (CFM/Watt) 4.1 CFM/W
ENERGY STAR® Certified Yes
Fan Type Fan Only
Industry Residential. Light Commercial.
Motor Type (AC/DC) AC
Mounting Options Ceiling Mount
Power Consumption (Watts) 240 @ 0.2" SP = 55.5W, 225 @ 0.3" SP = 53.5W, 200 @ 0.4" SP = 51.1W
Power Rating (V/Hz) 120/60
Product Family Name WhisperLine
Radiation Damper Available No
Warranty 3 Year on Parts
Master Carton Gross Weight (lbs.) 19.1

WhisperLine® Remote-Mount, In-Line Ventilation Solution

The WhisperLine® fans are designed for multiple-task ventilation. This means that you can ventilate multiple areas or multiple rooms with just one fan. WhisperLine fans are a great way to remotely mount a fan and run single or multiple inlets for over the shower, tub, toilet and/or vanity in a single bathroom. The WhisperLine fan features a blower wheel that is designed to draw air in both sides allowing more area for air to enter the wheel. This versatile product can be installed in five different positions and joist; truss and suspension brackets are included.

Multi-Task Ventilation Fan

This remote-mounted fan can exhaust stale, humid or contaminated air from multiple points of a room or multiple rooms. Place inlets over the shower, tub, toilet and vanity in a single bathroom, or in a bathroom, laundry, and craft room to exhaust with a single remote-mounted WhisperLine fan.

Fine-Tune the Airflow for Each Inlet

Low profile grilles are adjustable so you can balance airflow between the nearest and furthest inlets to create even circulation.

Installation Flexibility

This in-line fan can be installed in five different positions between joists and trusses. Additional suspension brackets simplify installation.

ENERGY STAR® Certified for Energy Savings

Panasonic ventilation fans are ENERGY STAR® certified, where guidelines exist. They have been engineered to comply with the ENERGY STAR 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.
