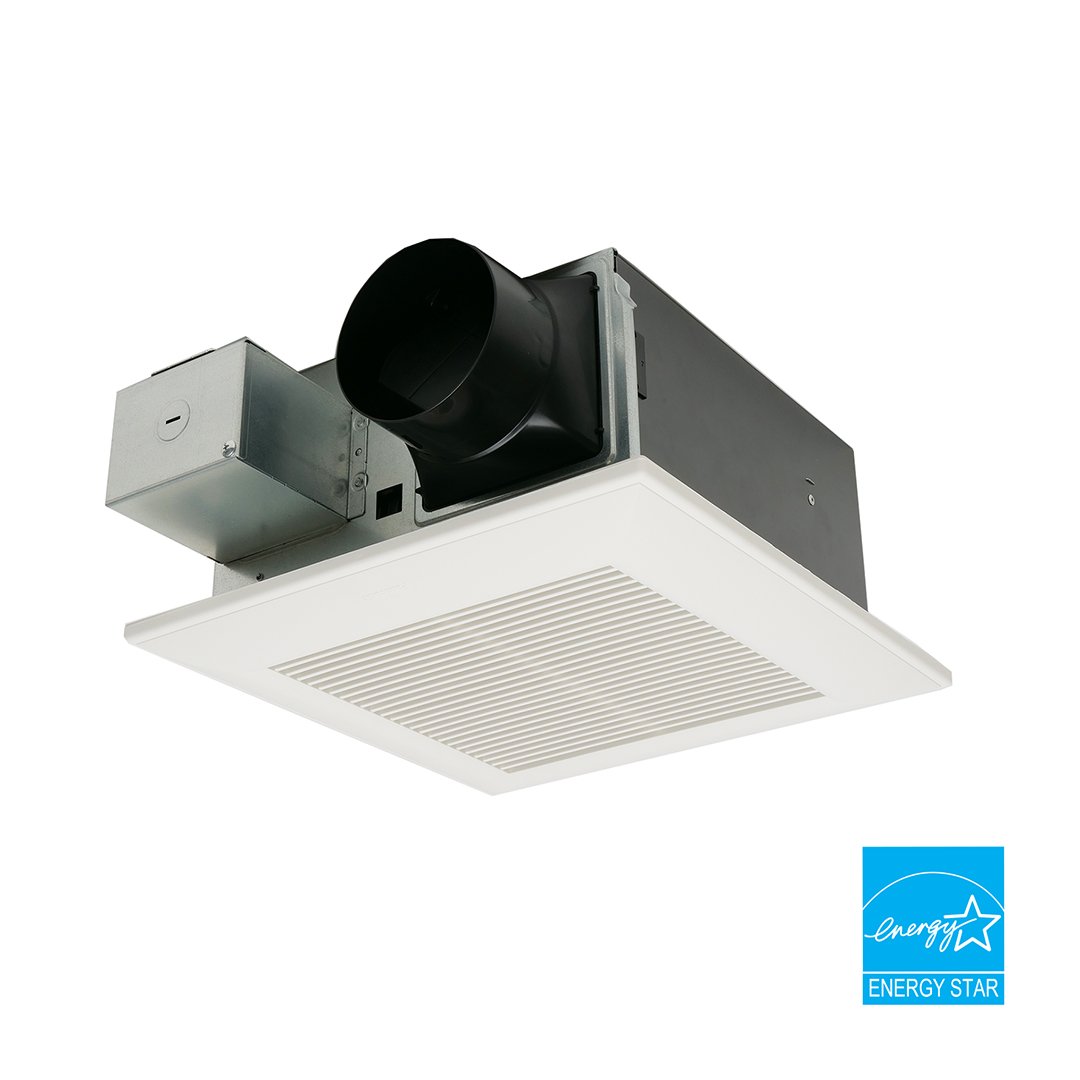

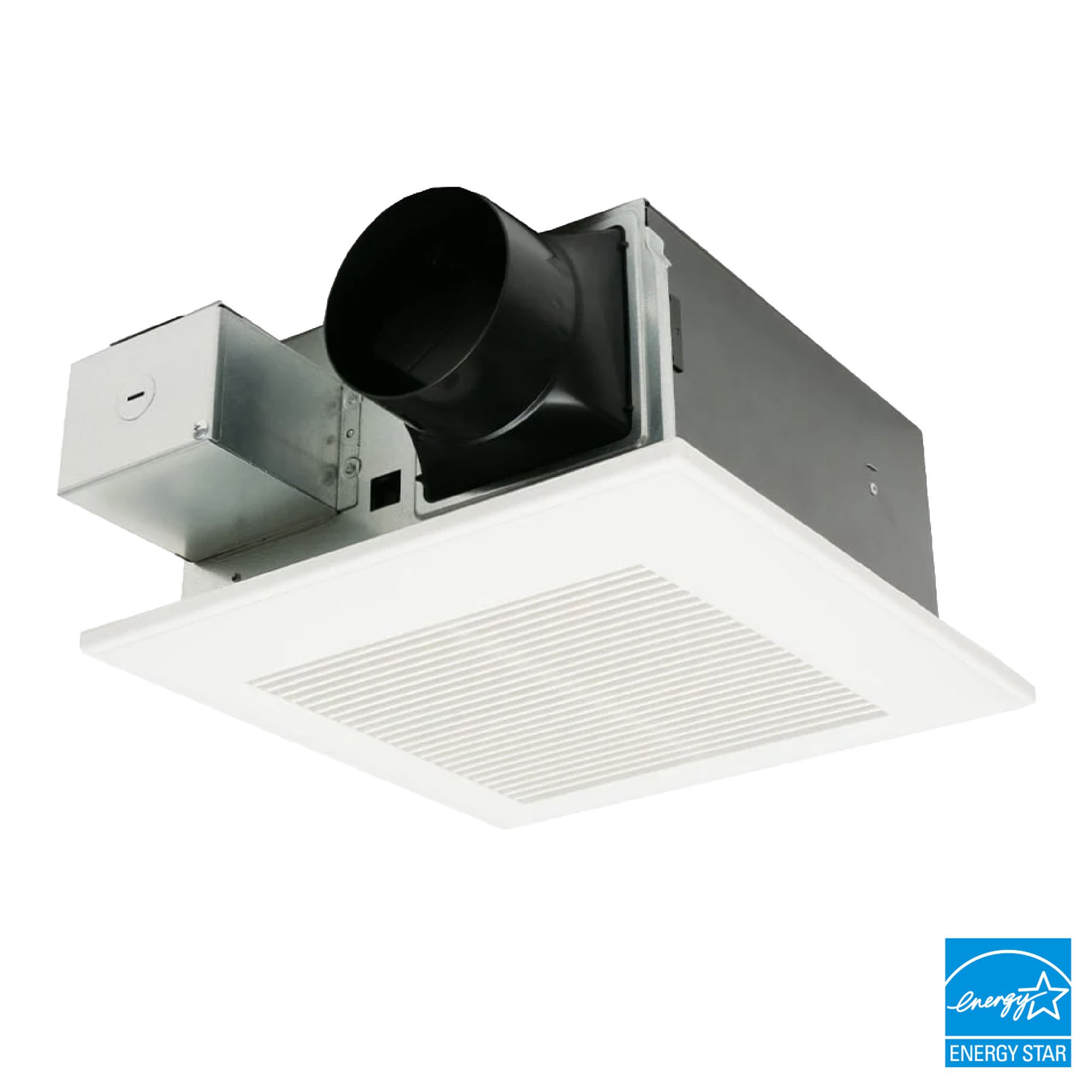

Bathroom exhaust fan with square grille
Bathroom exhaust fan with labeled dimensions
Bathroom exhaust fan showing airflow and LED light
Bathroom exhaust fan being installed with Flex-Z Fast mounting system
Bathroom mirror comparison showing foggy versus clear
Bathroom exhaust fan shown for use in multiple rooms

WhisperFit® DC Fan, 50-80-110 CFM

Model:

  • FV-0511VF1
Designed for renovation and retrofit projects, this ENERGY STAR® certified ventilation solution features quiet operation and installation from below the ceiling for added convenience. The Pick-A-Flow® airflow selector allows airflow customization to match the needs of different room sizes, helping deliver efficient ventilation and reliable performance in bathrooms, laundry rooms, and other living spaces.
Contact Sales Find A Distributor

  • Low-profile 5-5/8" housing depth fits in 2" x 6" joist size or larger
  • Pick-A-Flow® Airflow Selector, 50-80-110 CFM, and ECM motor with SmartFlow™ Technology for optimum CFM performance to meet code and reduce callbacks
  • Single-hinged Flex-Z-Fast® bracket for flexible, fast and easy installation
  • Slide and snap-in junction box and duct collar; pre-installed alignment guides; temporary retaining clip
  • Pre-installed alignment guides; temporary retaining clip
  • Designed to meet residential ventilation, energy-efficiency, and green building requirements, including ASHRAE 62.2, LEED®, IAP, and California Title 24.

Featured Videos

Pick-A-Flow® Airflow Technology – One Fan, You Choose The CFM

Built-in, Pick-A-Flow® airflow selector provides the unique ability to select your required airflow (50, 80 or 110 CFM) with the simple flip of a switch. With the flexibility to choose the proper CFM level, you are assured that one fan will satisfy a range of ventilation design requirements and perform, as promised, even with a complicated duct run.

Superior Installed Performance with True Flow ratings at 0.375" w.g.

ASHRAE, ENERGY STAR®, LEED for Homes, and HVI have set the industry standard for performance measurement at 0.1" and 0.25" w.g. WhisperFit DC fans provide powerful CFM airflow at 0.375" w.g. that is more representative of most installations. Sones have also been certified at 0.25 w.g. to provide a more realistic, installed value.

Fast, Flexible and Easy Installation

THe WhisperFit® DC Fan is the perfect solution for any remodeler looking to quickly and easily replace an existing fan from beloAw the ceiling. This fan enables you to utilize existing duct, while its low profile housing design ensures a proper fit in any ceiling with at least 5 5/8” depth. The single-hinged Flex-Z Fast® bracket provides flexible, fast and easy installation for easy positioning through a ceiling cavity. The slide and snap-in junction box and duct collar provide greater flexibility when wiring and attaching the duct. The fan includes preinstalled plastic alignment guides and a temporary retaining clip. These clips molded into the casting will allow the fan to stay in place while the installer fastens the fan into the can. Once installed, use the Pick-A-Flow® airflow selector to customize the airflow to meet your customers’ needs. Combined, all of these features make WhisperFit® DC Fan/Light a fast and easy to install ENERGY STAR® retrofit solution.

ENERGY STAR® Certified for Energy Savings

ENERGY STAR® certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR® certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.

Additional Benefits

• Plastic standard 4” adapter with backdraft damper/shutter allows for better air tightness. (3" reducer included in box)

• Slide and snap-in junction box and duct collar provide even greater installation flexibility

• Pre-installed alignment guides help guide adaptor assembly into place during installation for a tight precision fit

• Temporary clip molded into casing holds fan in place while installer fastens fan to can safely

• Built-in metal flange provides blocking for penetrations through drywall as an air barrier, and assists with the decrease in leakage in the building envelope during blower door testing

• UL listed for tub/shower enclosure when GFCI protected and UL listed for use with the Panasonic Ceiling Radiation Damper (model # PC-RD05C5)

• 6-year warranty ECM motor, 3-year warranty on parts, 5-year warranty on LED chip panel
