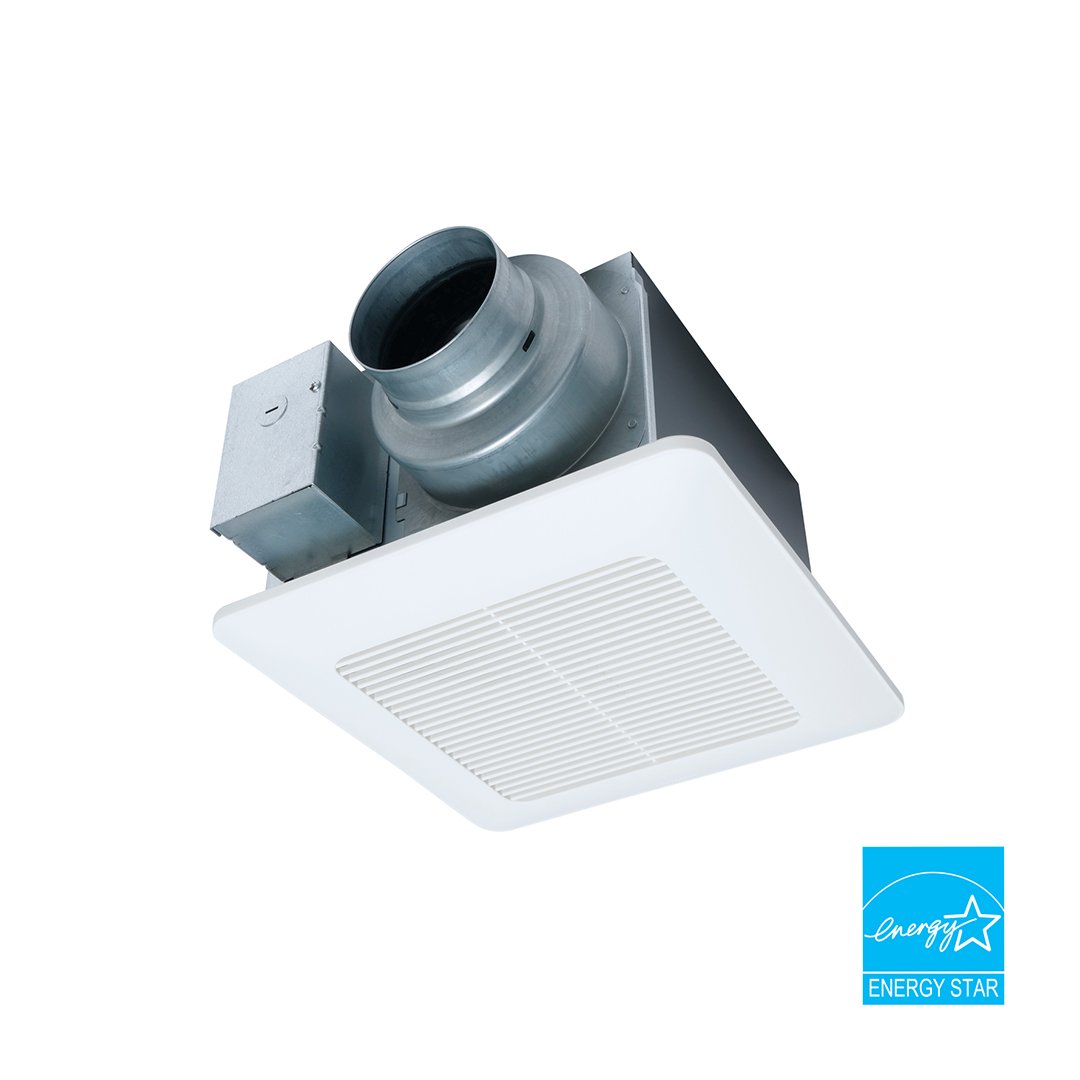

Ceiling-mounted bathroom exhaust fan with square white grille and rear duct connection.
FV-0511VQ1 dimensions-2000x2000
Graphic highlighting powerful airflow performance, selectable speeds, and whisper-quiet operation.

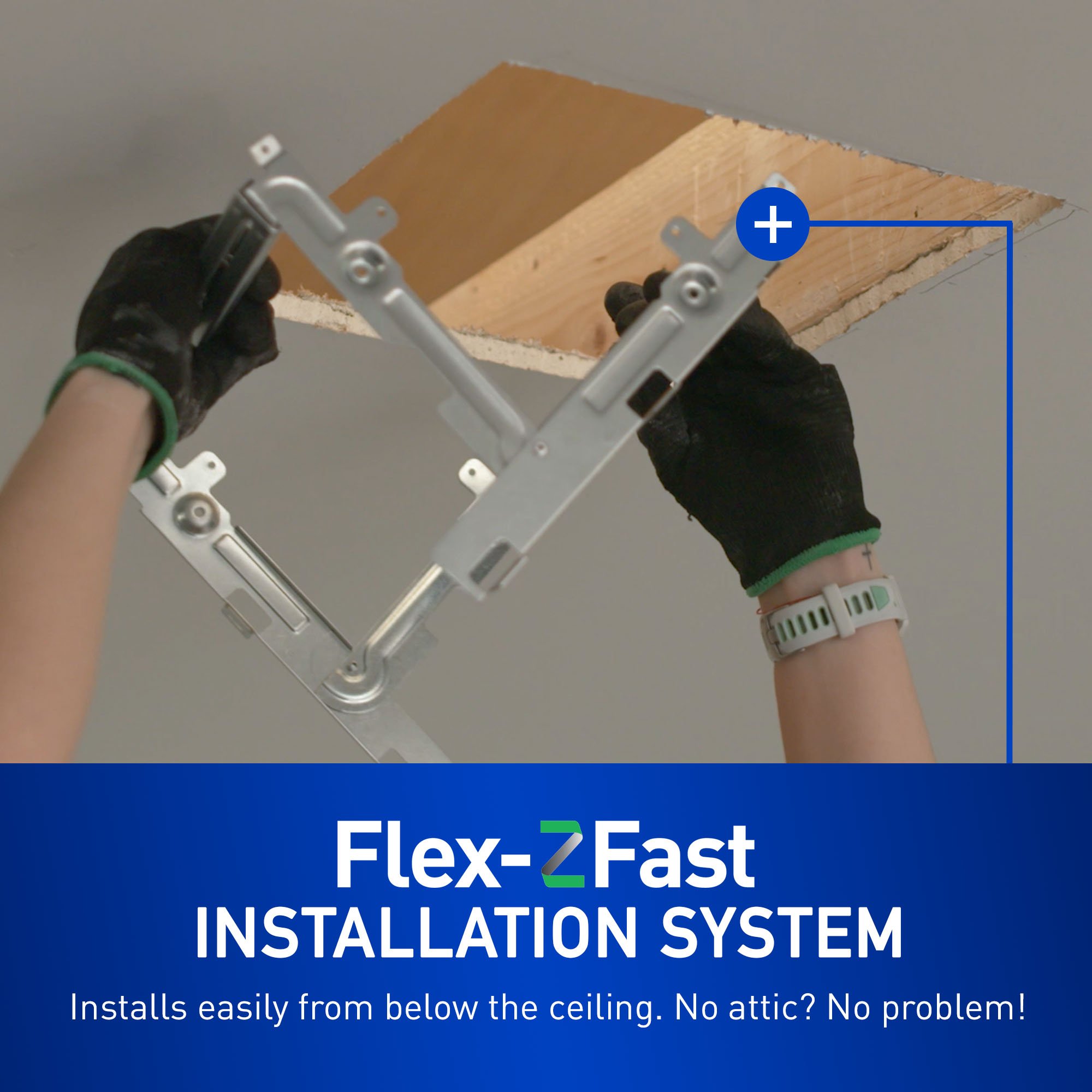

Installer mounting bathroom exhaust fan using Flex-Z-Fast installation system from below the ceiling.
Bathroom exhaust fan shown in laundry room, bathroom, and entryway to illustrate suitability for multiple room types.
Panasonic_WhisperCeiling_FV-0511VQ1_Perfect_Every_Room

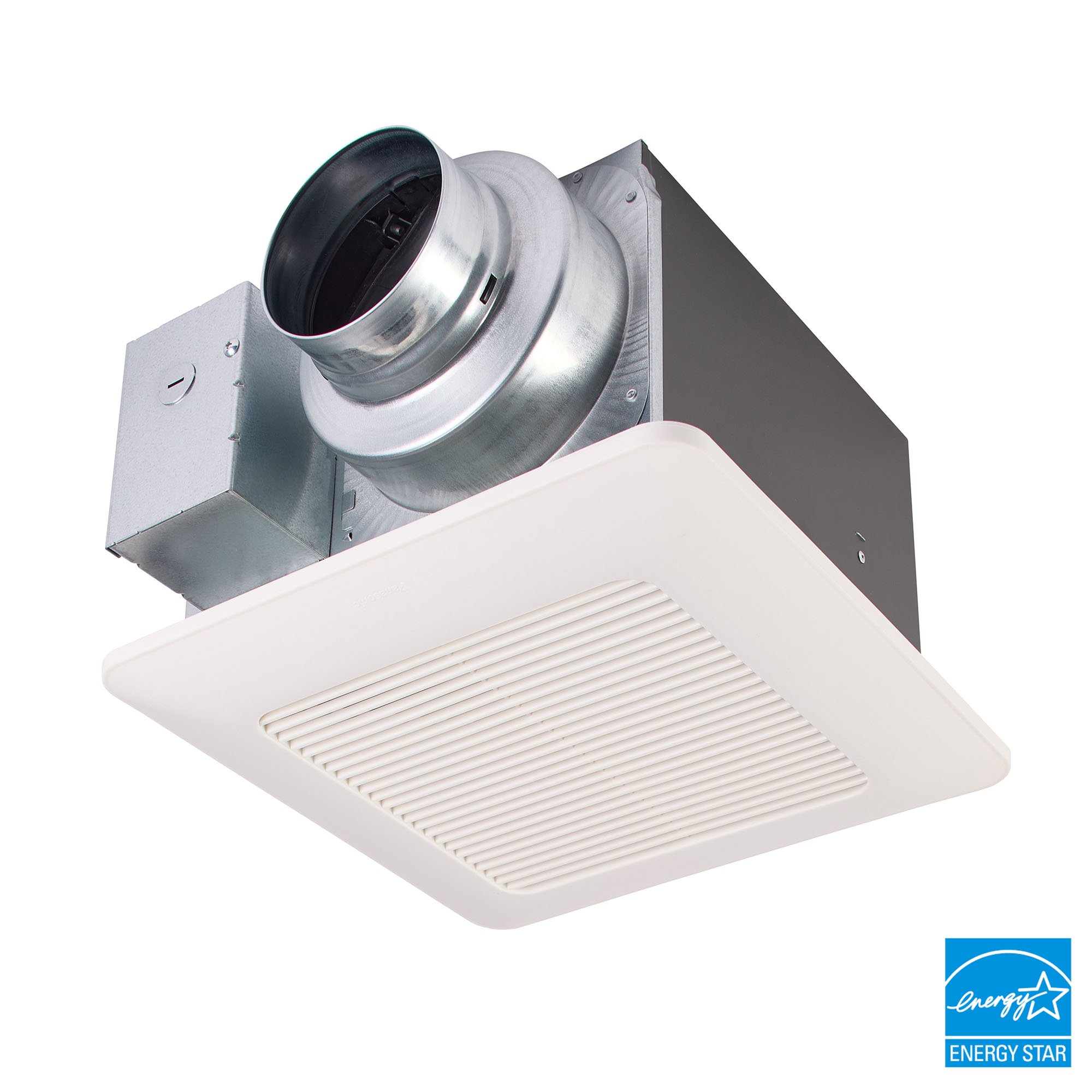

WhisperCeiling® DC, Precision Spot Ventilation Fan, 50-80-110 CFM

Model:

  • FV-0511VQ1
Featured Specs

Featuring the built-in Pick-A-Flow® airflow selector, this ENERGY STAR® certified bathroom exhaust fan offers customizable airflow settings to help optimize ventilation performance. Ideal for bathrooms, laundry rooms, sunrooms, basements, garages, and other residential spaces, it helps reduce excess moisture, improve air circulation, and enhance indoor air quality while delivering energy-efficient operation.

Contact Sales Find A Distributor

  • Pick-A-Flow® Airflow Selector, 50-80-110 CFM, and ECM motor with SmartFlow™ Technology for optimum CFM performance to meet code and reduce callbacks
  • Elegant grille design compliments the aesthetics of any bathroom
  • Single-hinged Flex-Z-Fast® bracket provides flexible, fast and easy installation
  • Designed to meet residential ventilation, energy-efficiency, and green building requirements, including ASHRAE 62.2, LEED®, IAP, and California Title 24

Featured Specs

Model FV-0511VQ1
Advanced Features Single Speed
Air Volume (CFM) 110, 111, 80, 83, 50, 53
Blower Wheel Type Sirocco
California Title 24 Compliant Yes
Current (Amps) 0.18, 0.26, 0.11, 0.18, 0.07, 0.13
Duct Diameter 4" or 6"
Energy Efficiency (CFM/Watt) 10.6, 6.9, 13.6, 7.7, 12.5, 7.4
ENERGY STAR® Certified Yes
Grille Size (in sq.) 13"
Gross Weight (lbs) 11.0
MAX. Current (Amps) 0.27
Mfg in ISO 9001 Certified Facility Yes
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Noise (Sones) <0.3, 0.9, <0.3, 0.6, <0.3, 0.4
Power Consumption (Watts) 10.6, 16.4, 5.9, 10.8, 4.0, 7.2
Power Rating (V/Hz) 120/60
Product Family Name WhisperCeiling DC
Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
Thermal Fuse Protection Yes
Type of Motor Bearing Ball
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
UL tub/Shower Enclosure Yes
Washington VIAQ Code Yes

Features & Benefits

Performance and efficiency perfected with precision spot ventilation fan

WhisperCeiling DC SmartFlow™ fans come from a line of time-tested and customer-approved quiet yet powerful and energy-efficient ventilation fans. This precision spot ventilation solution improves IAQ by effectively removing moist, polluted air from your bathroom, laundry room, sun room, basement or garage.

ECM motor with SmartFlow™ technology

WhisperCeiling® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run.

Pick-A-Flow® Speed Technology

Built-in Pick-A-Flow® speed selector provides the unique ability to select your required airflow (110-130-150 CFM) with the flip of a switch.

Long life and lower operating costs

When you have a household or business to run, you do not want to have to replace little things like a vent fan. Panasonic fans use less energy to move larger volumes of air than other brands. Consequently, Panasonic fans run cooler so they last longer. They are also much less likely to overheat and result in motor failure. The motor is also equipped with a thermal-cutoff fuse.

Installation flexibility

The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. An integrated dual 4" or 6" duct adapter gives greater flexibility in duct layout and design.

ENERGY STAR® certified for energy savings

Panasonic ventilation fans are ENERGY STAR certified, where guidelines exist. They've been engineered to comply with the ENERGY STAR® 4.0 requirement for increased efficiency (CFM/Watt), ensuring low cost, energy efficient operation. ENERGY STAR® vent fans meet strict parameters set by the US Environmental Protection Agency (EPA). They provide better efficiency and comfort with less noise, and feature high performance motors and improved blade design, providing better performance and longer life.

WhisperCeiling® DC fans with Smartflow™ technology were awarded 2021 Most Efficient. This mark recognizes this fan as delivering cutting-edge, energy- efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.
