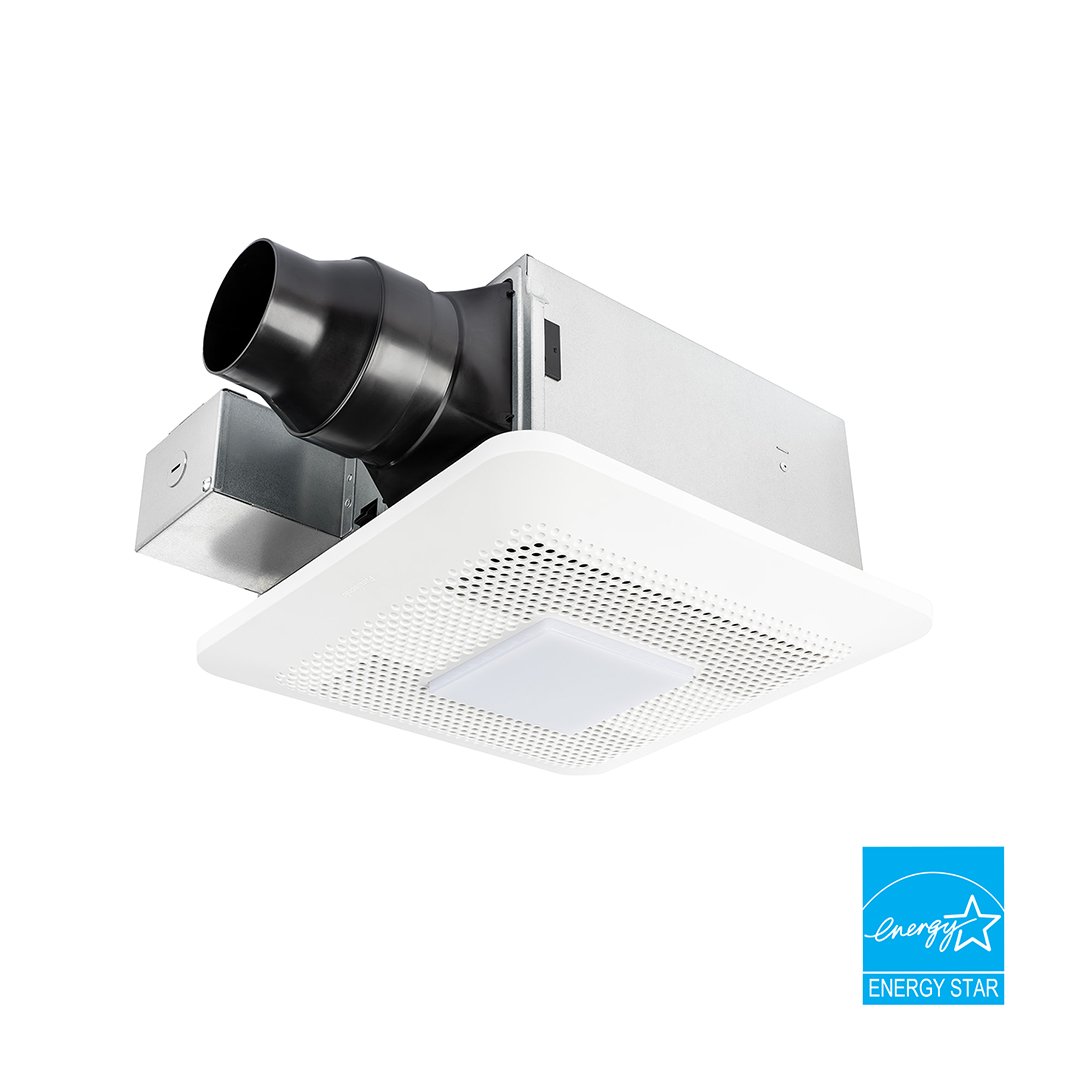

Whisper Remodel® DC Fan with LED Light and Humidity Sensor

Model:

  • RG-R811LHA
The Whisper Remodel® DC exhaust fan with LED lighting and built-in Humidity Sensor is ideal for bathroom ventilation. It is customizable with Pick-A-Flow® Speed Selector. You have the flexibility to choose 80 or 110 CFM airflow – one fan - two speed choices. Set the switch in the fan box to choose your CFM ensuring optimum CFM performance.  The DC-ECM Motor technology offers reduced energy costs, long life and is environmentally friendly. In addition to bathrooms, it is your ventilation solution for medium- to-large sized rooms – laundry room, sunroom, basement, or garage. The grill design compliments any room design. Panasonic ventilation fans use less energy to move larger volumes of air. Less energy leads to less overheating and motor failure, saving you on repair costs.

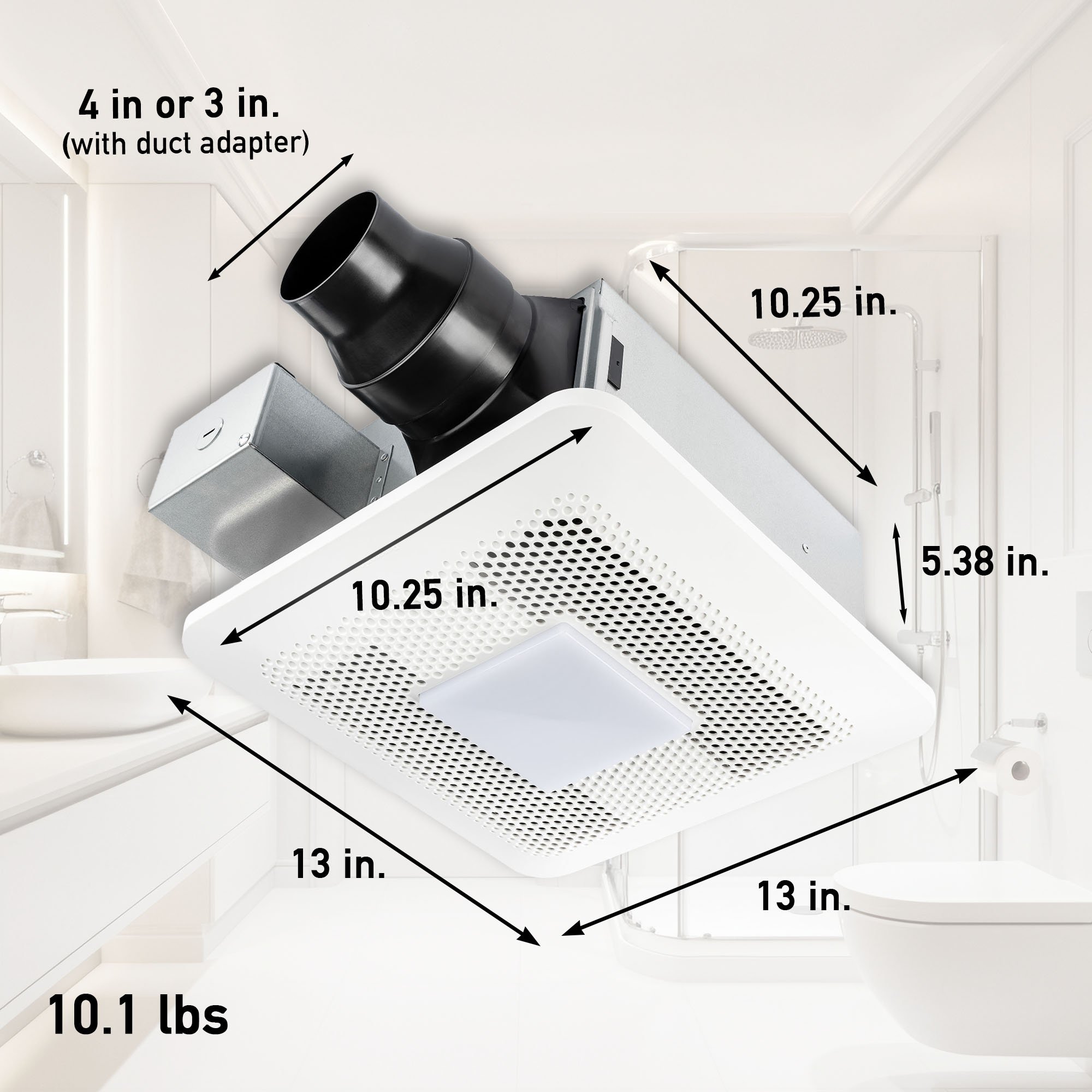

  • Sizing/Construction: Housing depth of 5 5/8” fits 2 in. x 6 in. stud construction with 4” duct and 3” duct reducer for older existing projects. All mounting hardware is included
  • Lighting: Includes a 10W dimmable LED Chip Panel in a 3000K warm white color with 700 lumens for a 50,000-hour rated average life plus a less than 1W LED nightlight (nightlight must be wired separately)
  • Humidity Sensor Technology: Detects moisture with an adjustable delay timer from 30 seconds to 60 minutes eliminating humidity, mold, mildew, and other air pollutants from the room – ultimately increasing your air quality
  • Extremely Quiet: with less than 0.4 sones at 80 CFM and 1.1 sones at 110 CFM. This fan is a great solution for outdated noisy fans
  • Easy to Install: The Flex-Z Fast® Installation Bracket helps position the fan where you want it, providing flexible, fast, and simplifying your installation
  • Code Compliant: ENERGY STAR Certified, HVI (Home Ventilation Institute) Rated and complies with California Title 24 and Washington VIAQ codes and standards.
  • Warranty: 6 years on DC Motor and 3 years on all Parts - from the date of original purchase.

Installation Video

Humidity Sensor

Humidity Sensor Technology: Detects moisture with an adjustable delay timer from 30 seconds to 60 minutes eliminating humidity, mold, mildew, and other air pollutants from the room – ultimately increasing your air quality

Code Compliant: ENERGY STAR Certified, HVI (Home Ventilation Institute) Rated and complies with California Title 24 and Washington VIAQ codes and standards.
Warranty: 6 years on DC Motor and 3 years on all Parts - from the date of original purchase.

Pick-A-Flow® Airflow selector - one fan, you choose the CFM

Built-in, Pick-A-Flow® airflow selector provides the unique ability to select your required airflow of 80 or 110 CFM with the flip of a switch. With the flexibility to choose the proper CFM level, you are assured that one fan will satisfy a range of ventilation design requirements and perform, as promised, even with a complicated duct run.

Easy roomside installation for contractors and DIYers

Flex-Z Fast® installation bracket with articulating joints provides fast and trouble-free roomside installation from below the ceiling. The detachable installation adapter makes it easy to work with as it simply slides off the fan housing for effortless wiring and duct attachment, all from beneath the ceiling.

No rewiring or new wall switches nee ed. UL Listed® for tub and shower enclosures when GFCI protected.

Long life, lower cost of ownership

Panasonic fans use less energy to move larger volumes of air than other fans, and they run cooler so they last longer, providing efficient ventilation and healthy indoor air for many years. The built-in thermal-cutoff fuse practically eliminates chances of overheating which can result in motor failure, which means this may be the last vent fan you ever buy.

ENERGY STAR® certified for energy efficiency & savings

ENERGY STAR®-certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR certified and provide greater efficiency and healthier indoor air quality with less noise. High performance motors and improved blade design deliver the superior performance and long-life operation you expect from a Panasonic ventilation fan.
