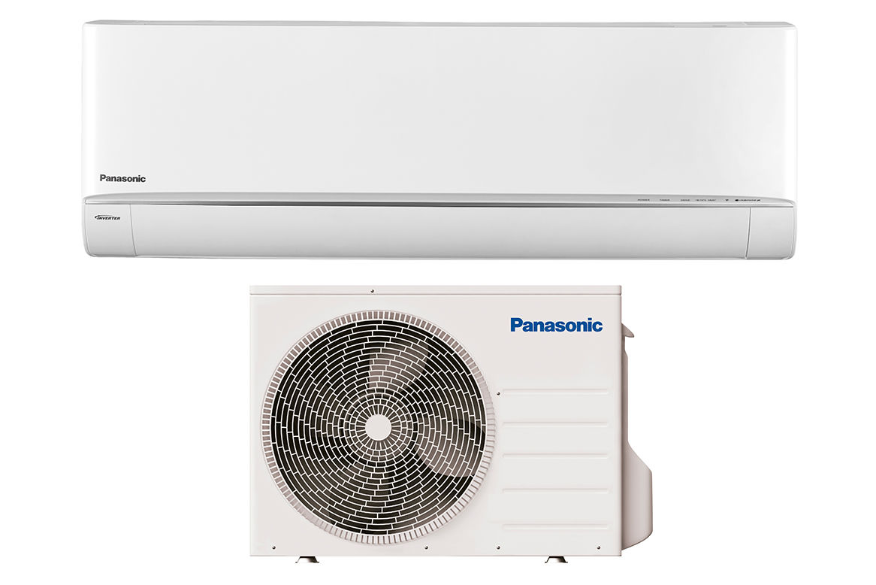

ClimaPure® XE Series Single Split System (9K BTU)
The new ClimaPure™ XE ductless heating and air conditioning system features nanoe™ X — a built-in air purification technology that provides a comfortable environment for occupants by reducing pollutants and odors. nanoe™ X penetrates deep into the fibers of carpets and furniture to inhibit pollutants and odors. Featuring whisper-quiet heating and cooling and advanced built-in air purification technology, the XE series sets a new standard for a comfortable indoor environment.
- nanoe™ X air and surface purification system
- -15°F cold climate heating operation
- Built-in Wi-Fi connects to Panasonic control app
- High SEER2 and ENERGY STAR® rated
- Commonly specified where rebate programs apply
- XE9WKUA Specification Guide EN
- Mini Split Product Line Sheet (PDF)
- Resident Heat Pump Solutions Full Line Catalog - Mini Split (PDF)
- XE9WKUA Operation Manual (PDF) EN-FR
- XE9WKUA Indoor Parts List (PDF)
- XE9WKUA Outdoor Parts List (PDF)
- XE9WKUA Service Manual (PDF) EN
- XE9WKUA Install Manual (PDF)
- CS-XE9WKUAW_Submittal_Ver2.0
- CS-XE9WKUAW-IDU_Submittal_Sheet_en
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specification
| SKU | XE9WKUA |
|---|---|
| Indoor Unit | CS-XE9WKUAW |
| Outdoor Unit | CU-XE9WKUA |
| Capacity Cooling (Btu/h) / KW | 8,700(2,800~12,000) |
| Capacity Heating (Btu/h) / KW | 10,900(3,000~18,000) (8,000 at 17°F) |
| Moisture Removal - High (pints/H) | 1.3 |
| Dry Air Flow - High (CFM) | 380 |
| SEER2 | 27.30 |
| EER2 | 16.10 |
| HSPF2 - Region 4 / Region 5 | 12.00 / 9.00 |
| Power Supply (V, Phase, Hz) | 230/208V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 2.6/2.9 |
| Power Input - Cooling (W) | 540 |
| Running Amps - Heating (A) | 3.2/3.6 |
| Power Input - Heating (W) | 670 |
| Low Ambient Control | Equipped |
| Fuse or Circuit Breaker Capacity (A) | 15 |
| Wi-Fi | Built-in |
| Wireless Remote Controller | Included |
| Wired Remote Controller (optional) | Optional |
| Fan Speeds | 5 speeds + Auto |
| Timer | 24hr Program |
| Air Filter | Stage 1 (Included) Stage 2 (Optional) |
| Refrigerant | R410a |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 42/25/20 |
| Operation Sound - Outdoor (Hi) (dB-A) | 48 |
| Refrigerant Pipe Length (ft) | 9.8 - 65.6 |
| Refrigerant Piping -Type | Flare |
| Elevation Difference - Outdoor Above (ft) | Max. 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max. 49.2 |
| Height Indoor (Inches) | 11-5/8 |
| Width Indoor (Inches) | 34-9/32 |
| Depth Indoor (Inches) | 9-1/16 |
| Width Outdoor (Inches) | 32-15/32 |
| Height Outdoor (inches) | 24-1/2 |
| Depth Outdoor (Inches) | 11-25/32 |
| Net Weight Indoor (Lbs.) | 24 |
| Net Weight Outdoor (Lbs.) | 82 |
| ENERGY STAR® Certified | Yes |
