discontinued

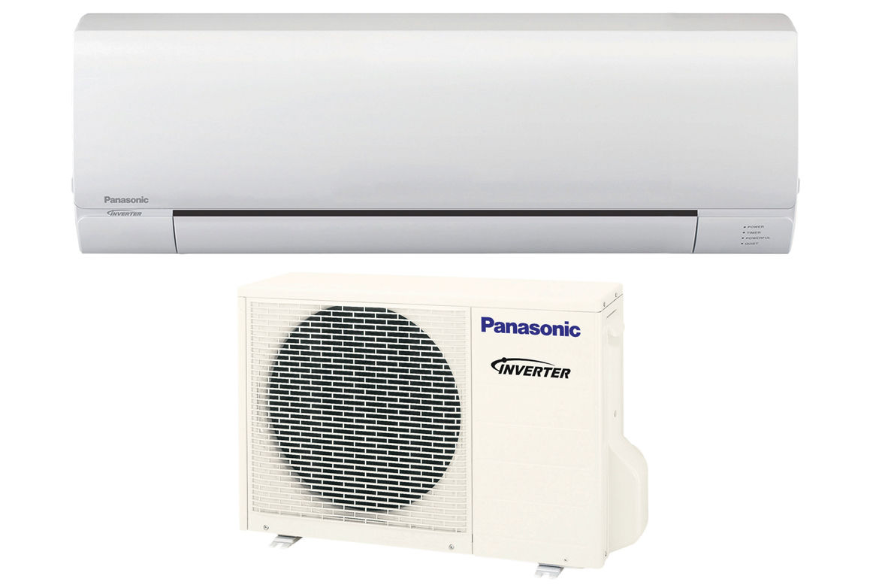

Single Split System Wall Mounted Heat Pump (24 BTU)
The Pro series provides all of Panasonic's component design and manufacturing quality assurance. These heating and cooling single zone mini-split units are designed to 16 SEER to provide high-value, energy efficiency, comfort and long-life operation.
- CS-RE24SKUA Indoor unit (single zone); CU-RE24SKUA Outdoor unit (single zone)
- Cooling Capacity: 22,000 (5,800 – 23,000) Btu/h; Heating Capacity: 22,000 (5,800 – 25,400) Btu/h
- SEER2 16.0 / EER0 9.20 / HSPF2 Region 4 - Region 5 8.50 / 6.70
- Wireless controller included
- Blue Fin Condenser anti-rust coating corrosion resistant.
- Mini Split Product Line Sheet (PDF)
- Install Manual - RE24SKUA (English) (PDF)
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Operating Manual - Manuel d-utilisation - RE24SKUA (English-Francais) (PDF)
- Service Manual - RE24SKUA (English) (PDF)
- Submittal Sheet - HVAC - Single Zone Wall System - RE24SKUA
- Indoor Units Parts List - RE24SKUA (English) (PDF)
- Outdoor Units Parts List - RE24SKUA (English) (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | RE24SKUA |
|---|---|
| Indoor Unit | CS-RE24SKUA |
| Outdoor Unit | CU-RE24SKUA |
| Capacity Cooling (Btu/h) / KW | 22,000 (5,800~23,000) |
| Capacity Heating (Btu/h) / KW | 22,000 (5,800~25,400) |
| Moisture Removal - High (pints/H) | 6.8 |
| Dry Air Flow - High (CFM) | 670 |
| SEER2 | 16.00 |
| EER2 | 9.20 |
| HSPF2 - Region 4 / Region 5 | 8.50 / 6.70 |
| Power Supply (V, Phase, Hz) | 208 / 230V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 11.7 / 10.5 |
| Running Amps - Heating (A) | 8.8 / 7.9 |
| Power Input - Cooling (W) | 23,900(430-25,500) |
| Power Input - Heating (W) | 17,800(380-24,500) |
| Fuse or Circuit Breaker Capacity (A) | 25 |
| Controls | Microprocessor |
| Low Ambient Control | Built -In |
| Wireless Remote Controller | Included |
| Fan Speeds | 5 Speeds + Auto |
| Timer | 24 hr Program |
| Air Deflection - Horizontal | Automatic |
| Air Deflection - Vertical | Automatic |
| Air Filter | Washable |
| Refrigerant | R-410A |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 51 / 40 / 37 |
| Operation Sound - Outdoor (Hi) (dB-A) | 55 |
| Refrigerant Piping -Type | Flare |
| Refrigerant Piping - Discharge (in) | 1 / 4 |
| Refrigerant Piping - Suction (in) | 1 / 2 |
| Refrigerant Pipe Length (ft) | Max. 65.6 |
| Elevation Difference - Outdoor Above (ft) | Max . 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max . 50.0 |
| Height Indoor (Inches) | 11-7/16” |
| Height Outdoor (inches) | 27-3 / 8" |
| Width Indoor (Inches) | 42-5 / 32" |
| Width Outdoor (Inches) | 34-15 / 32" |
| Depth Indoor (Inches) | 9-15 / 32" |
| Depth Outdoor (Inches) | 12-5 / 8" |
| Net Weight Indoor (Lbs.) | 26 |
| Net Weight Outdoor (Lbs.) | 108 |
