discontinued

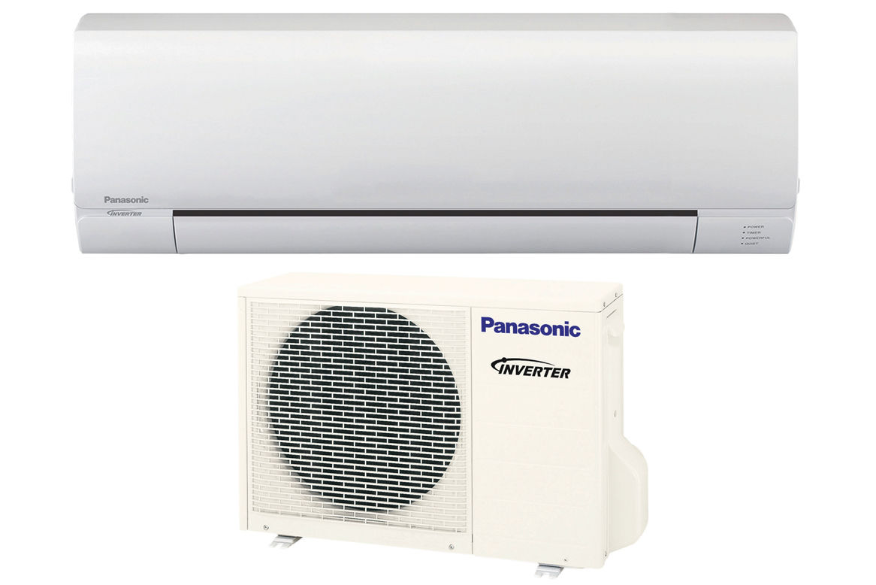

Single Split System Wall Mounted Heat Pump (12K BTU)
The Pro series provides all of Panasonic's component design and manufacturing quality assurance. These heating and cooling single zone mini-split units are designed to 16 SEER to provide high-value, energy efficiency, comfort and long-life operation.
- CS-RE12SKUA Indoor unit (single zone); CU-RE12SKUA Outdoor unit (single zone)
- Cooling Capacity: 12,000 (4,100 – 13,200) Btu/h; Heating Capacity: 12,000 (4,100 – 16,300) Btu/h
- SEER2 16.00 / EER2 10.60 / HSPF2 Region 4 - Region 5 8.50 / 6.70
- Wireless controller included
- Blue Fin Condenser anti-rust coating corrosion resistant
- Mini Split Product Line Sheet (PDF)
- Install Manual - RE12SKUA (English) (PDF)
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Operating manual - Manuel d-utilisation - RE12SKUA (English-Francais) (PDF)
- Service Manual - RE12SKUA (English) (PDF)
- Submittal Sheet - RE12SKUA (English) (PDF)
- Indoor Units Parts List - RE12SKUA (English) (PDF)
- Outdoor Unit Parts List - RE12SKUA (English) (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | RE12SKUA |
|---|---|
| Indoor Unit | CS-RE12SKUA |
| Outdoor Unit | CU-RE12SKUA |
| Capacity Cooling (Btu/h) / KW | 12,000 (4,100~13,300) |
| Capacity Heating (Btu/h) / KW | 12,000 (4,100~16,300) |
| Moisture Removal - High (pints/H) | 2.3 |
| Dry Air Flow - High (CFM) | 450 |
| SEER2 | 16.00 |
| EER2 | 10.60 |
| HSPF2 - Region 4 / Region 5 | 8.50 / 6.70 |
| Power Supply (V, Phase, Hz) | 208 / 230V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 5.5 / 5.0 |
| Running Amps - Heating (A) | 4.5 / 4.0 |
| Power Input - Cooling (W) | 1,130(250-1,300) |
| Power Input - Heating (W) | 910(200-1,710) |
| Fuse or Circuit Breaker Capacity (A) | 15 |
| Controls | Microprocessor |
| Low Ambient Control | Built -In |
| Wireless Remote Controller | Included |
| Fan Speeds | 5 Speeds + Auto |
| Timer | 24 hr Program |
| Air Deflection - Horizontal | Manual |
| Air Deflection - Vertical | Automatic |
| Air Filter | Washable |
| Refrigerant | R-410A |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 44 / 36 / 32 |
| Operation Sound - Outdoor (Hi) (dB-A) | 52 |
| Refrigerant Piping -Type | Flare |
| Refrigerant Piping - Discharge (in) | 1 / 4 |
| Refrigerant Piping - Suction (in) | 1 / 2 |
| Refrigerant Pipe Length (ft) | Max. 49.2 |
| Elevation Difference - Outdoor Above (ft) | Max . 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max . 50.0 |
| Height Indoor (Inches) | 11-7/16” |
| Height Outdoor (inches) | 21-11 / 32" |
| Width Indoor (Inches) | 34-9 / 32" |
| Width Outdoor (Inches) | 30-23 / 32" |
| Depth Indoor (Inches) | 8-7 / 16" |
| Depth Outdoor (Inches) | 11-13 / 32" |
| Net Weight Indoor (Lbs.) | 20 |
| Net Weight Outdoor (Lbs.) | 75 |
