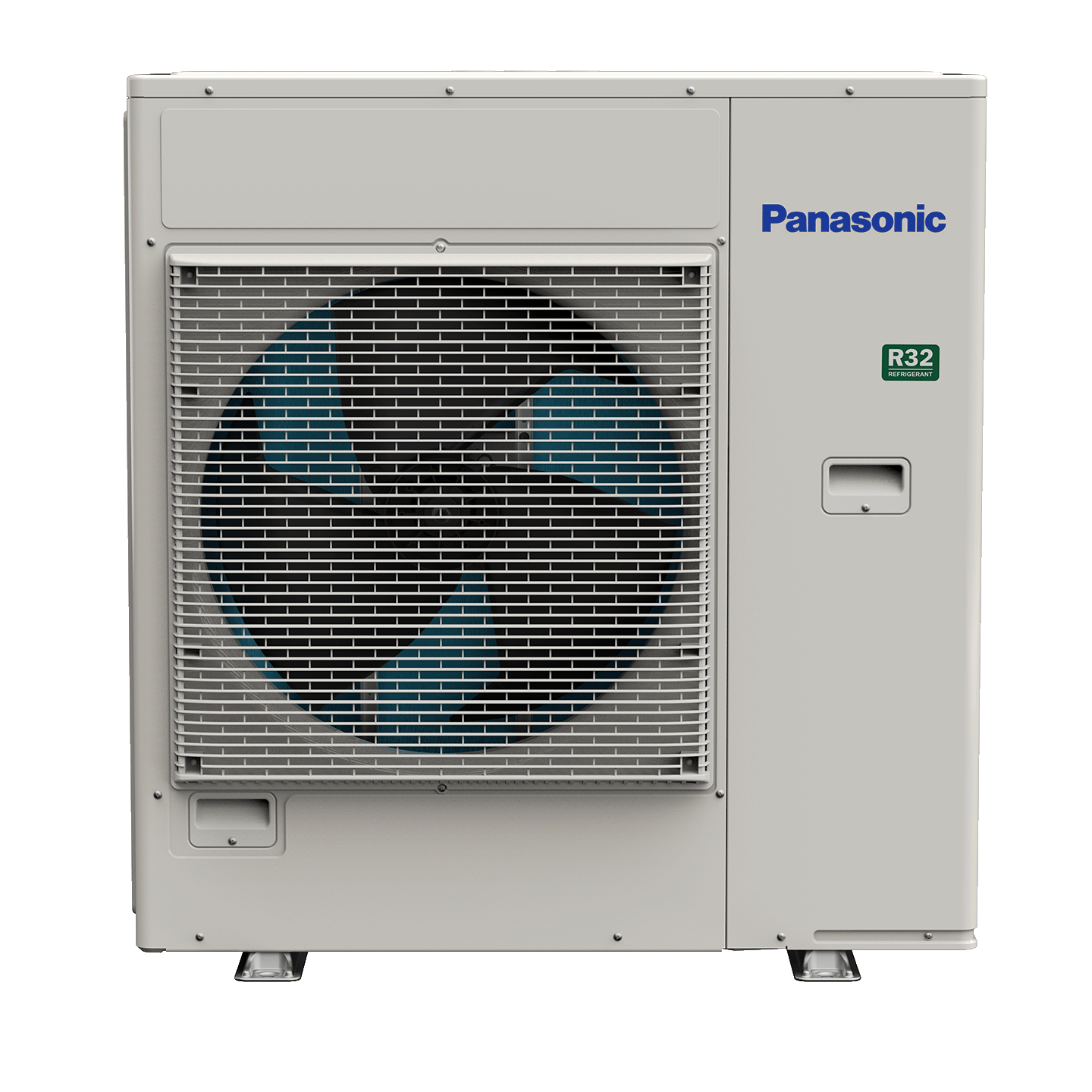

Multi-Zone Outdoor Condenser (2-5 Zone)
This Panasonic multi-zone outdoor condenser unit provides heating and cooling for 2 - 5 indoor units and cold climate heating operation down to -26 °C (-15 °F). Choose the optimum indoor wall units for each room from 5k - 24k Btu.
- Works with indoor units (CS-MXZ5AKUAW, CS-MXZ7AKUAW, CS-XZ Series & CS-Z Series)
- -26 °C (-15 °F) Cold climate heating operation
- R32 Refrigerant for zero impact on the ozone layer
- Blue Fin condenser (anti-corrosion coating)
- Base pan heater included
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | CU-5Z36BBUC |
|---|---|
| Indoor Unit | CS-MXZ5AKUA, CS-MXZ7AKUA, CS-XZ Series & CS-Z Series (4 x CS-MXZ7AKUA & 1 x CS-XZ9AKUAW)* *Specs shown below are when used with outdoor unit indicated. |
| Outdoor Unit | CU-5Z36BBUC |
| Capacity Cooling (Btu/h) / KW | 36,000 (9,900 - 39,000) / 10.56 |
| Capacity Heating (Btu/h) / KW | 36,000 (8,500 - 49,500) / 10.56 |
| Outdoor Air Flow | 2697 CFM |
| SEER2 | 22.0 |
| HSPF2 - Region IV / Region V | 10.3 / 7.5 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 3050 |
| Power Input - Heating (W) | 2730 |
| Dimensions (Outdoor) (H x W x D) | 39-11/32" x 37-1/32" x 13-13/32" (999 x 940 x 340 mm) |
| Weight | 179 lbs (81 kg) |
