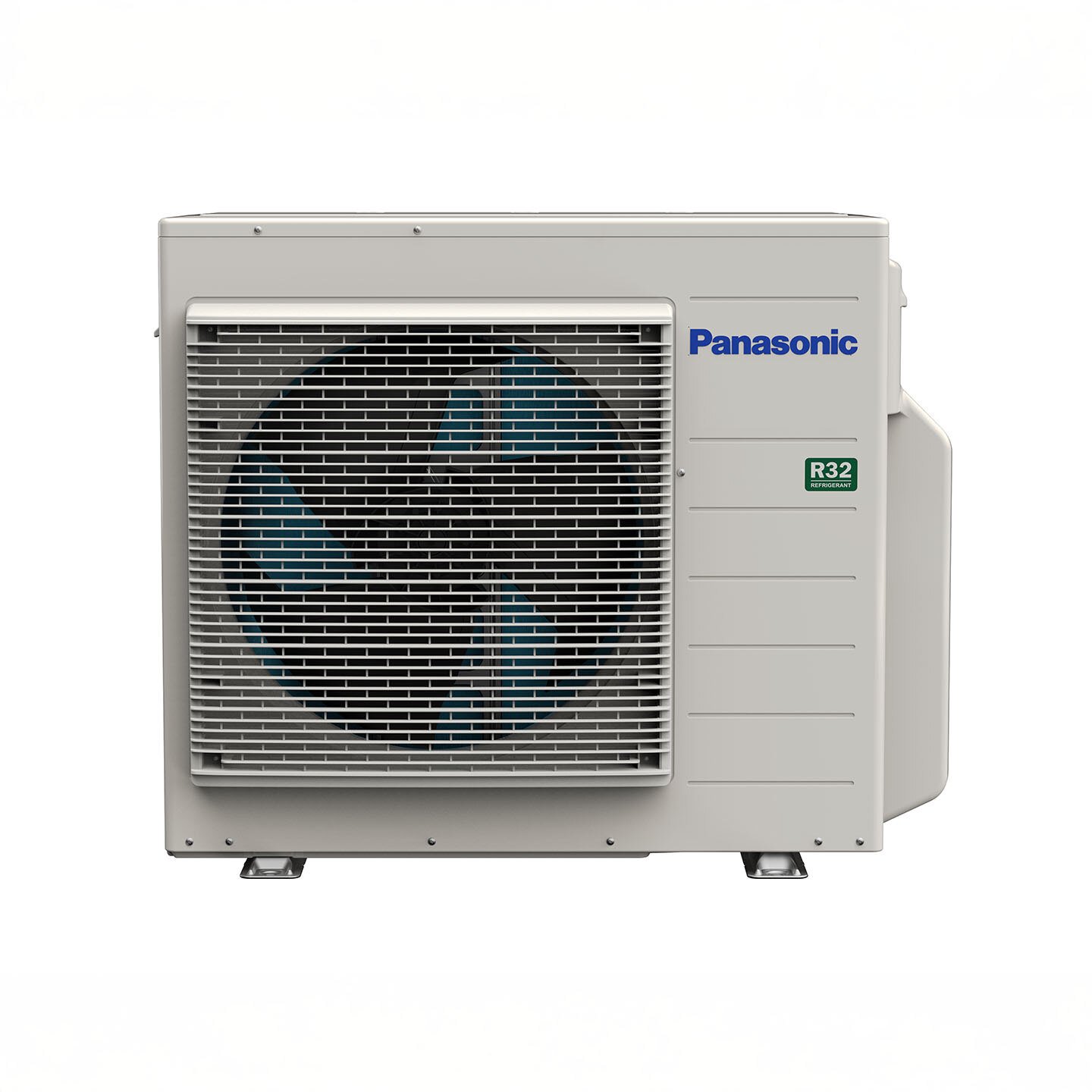

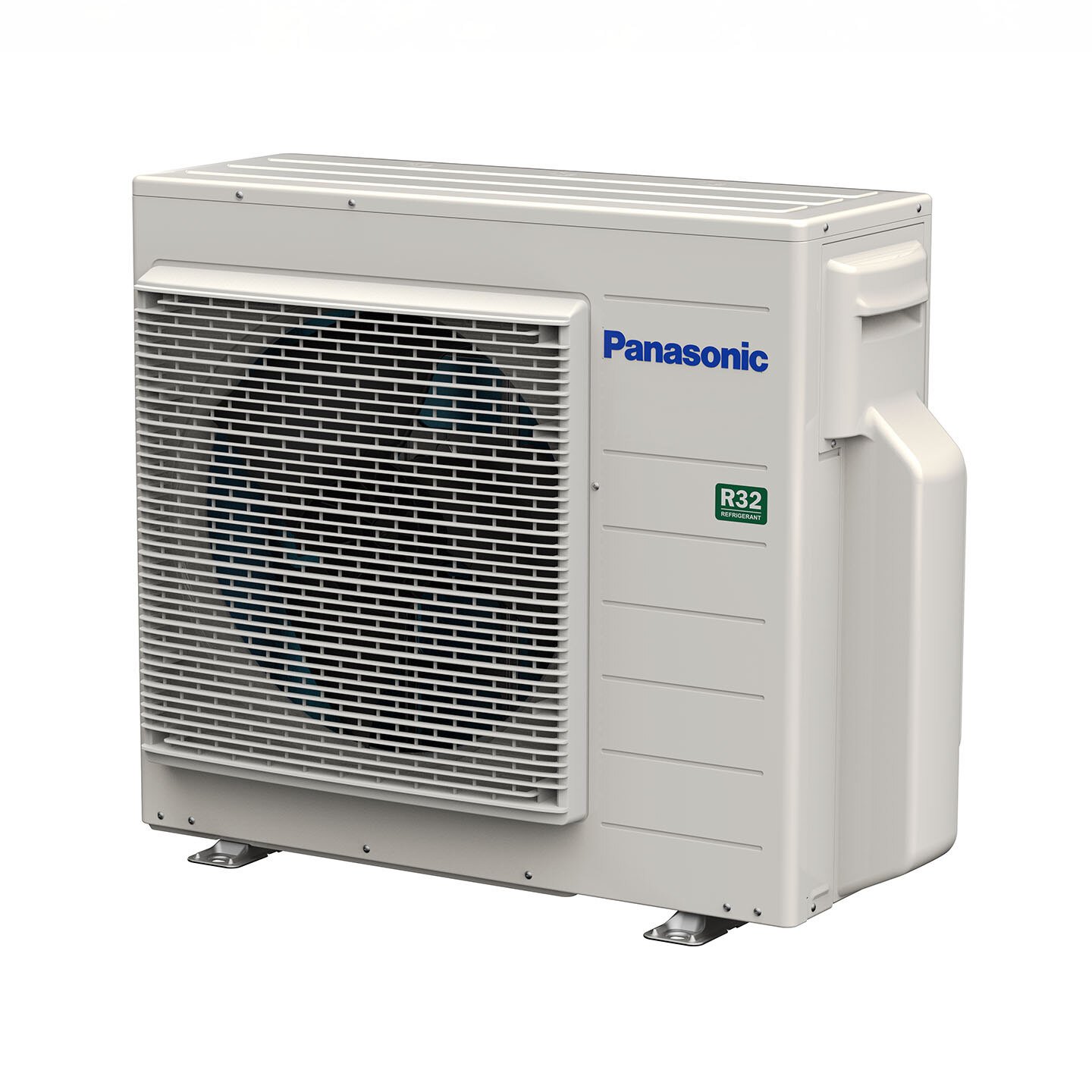

Multi-Zone Outdoor Condenser (2-3 Zone)
This Panasonic multi-zone outdoor condenser unit provides heating and cooling for 2 or 3 indoor units and cold climate heating operation down to -26 °C (-15 °F). Choose the optimum indoor wall units for each room from 5k - 18k Btu.
- Works with indoor units (CS-MXZ5AKUAW, CS-MXZ7AKUAW, CS-XZ Series & CS-Z Series)
- -26 °C (-15 °F) Cold climate heating operation
- R32 Refrigerant for zero impact on the ozone layer
- Blue Fin condenser (anti-corrosion coating)
- Base pan heater included
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | CU-3Z22ABUC |
|---|---|
| Indoor Unit | CS-MXZ5AKUA, CS-MXZ7AKUA, CS-XZ Series & CS-Z Series (CS-XZ9AKUAW x2)* *Specs shown below are when used with outdoor unit indicated. |
| Outdoor Unit | CU-3Z22ABUC |
| Capacity Cooling (Btu/h) / KW | 22,000 (7,200 - 30,000) / 6.45 KW |
| Capacity Heating (Btu/h) / KW | 26,000 (5,500 - 34,200) / 7.65 KW |
| Outdoor Air Flow | 1991 CFM |
| SEER2 | 24.50 |
| HSPF2 - Region IV / Region V | 10.70 / 8.70 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 1.72 kW (380 - 2.42 kW) |
| Power Input - Heating (W) | 1.76 kW (320 - 2.78 kW) |
| Dimensions (Outdoor) (H x W x D) | 31-5/16" x 34-15/32" x 12-5/8" (795 x 875 x 320 mm) |
| Weight | 128 lbs (58 kg) |
