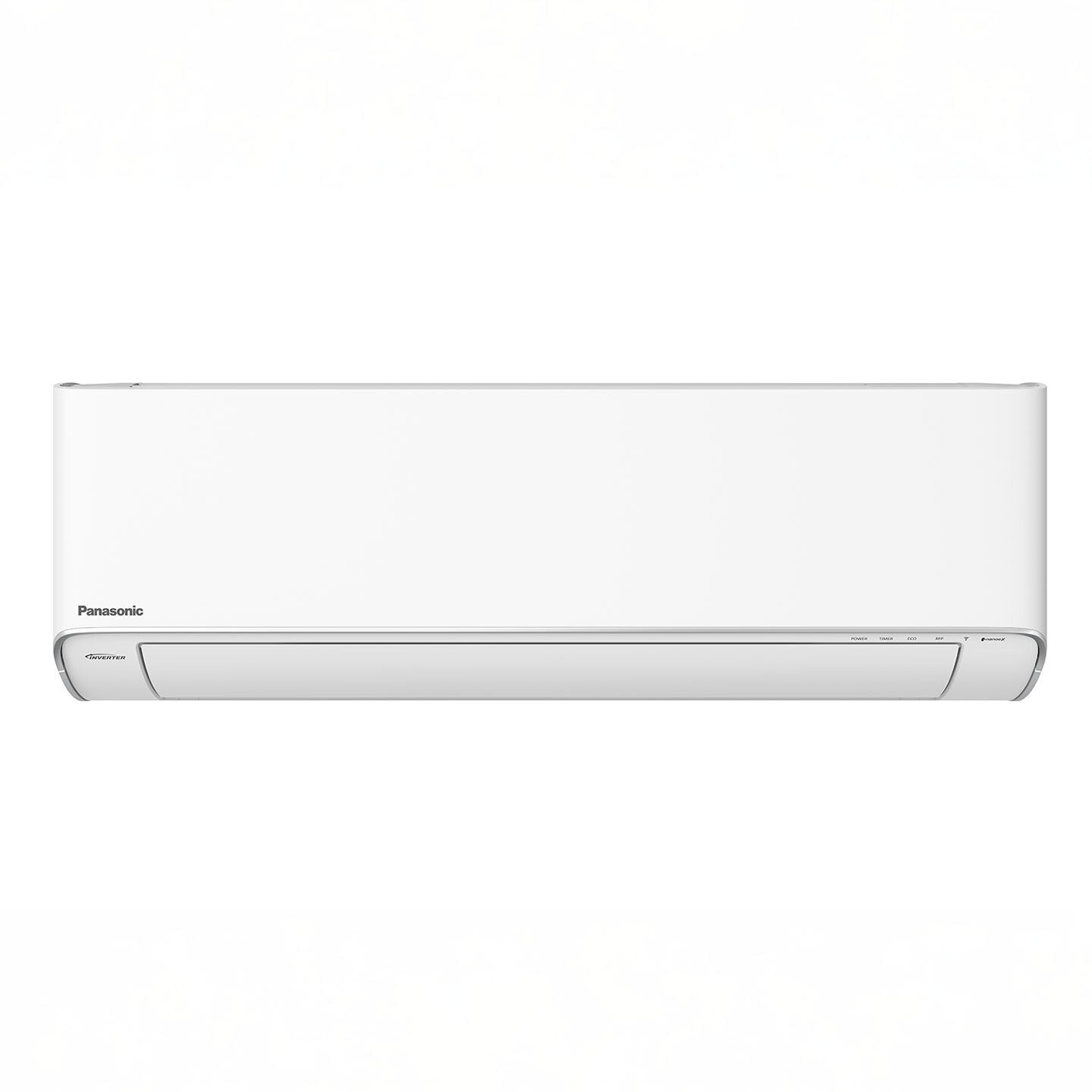

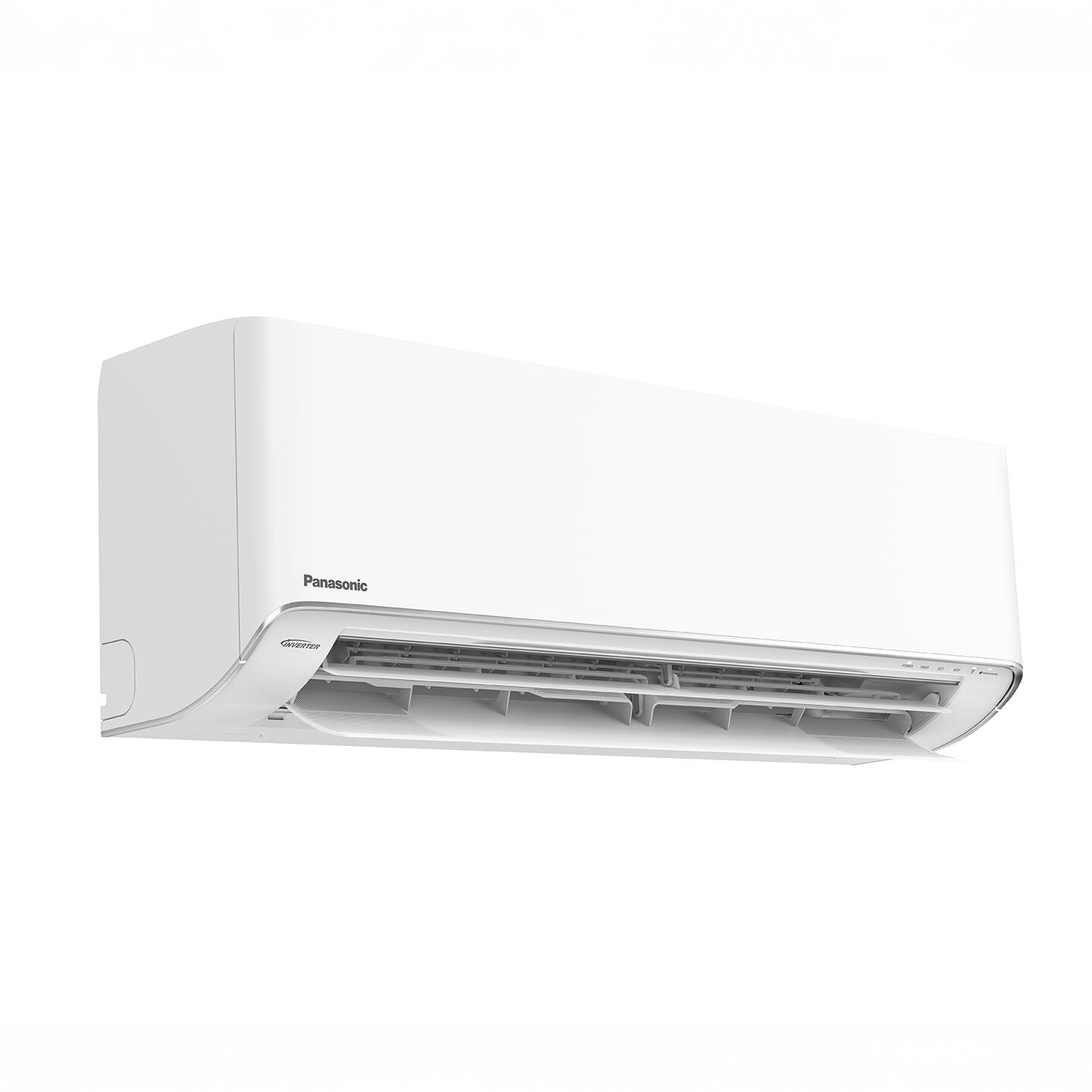

Multi-Zone Indoor Wall Mount Unit
Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control and R32 refrigerant. This 5,000 Btu Indoor wall mount unit was designed for multi-zone installations, in combination with one of the applicable multi-zone outdoor units.
- Works with multi-zone outdoor units (CU-2Z18ABUC & CU-3Z22ABUC)
- -26 °C (-15 °F) Cold climate heating operation
- R32 Refrigerant for zero impact on the ozone layer
- Improved nanoe™ X - air and surface purification
- AI ECO intelligently balances energy savings and comfort

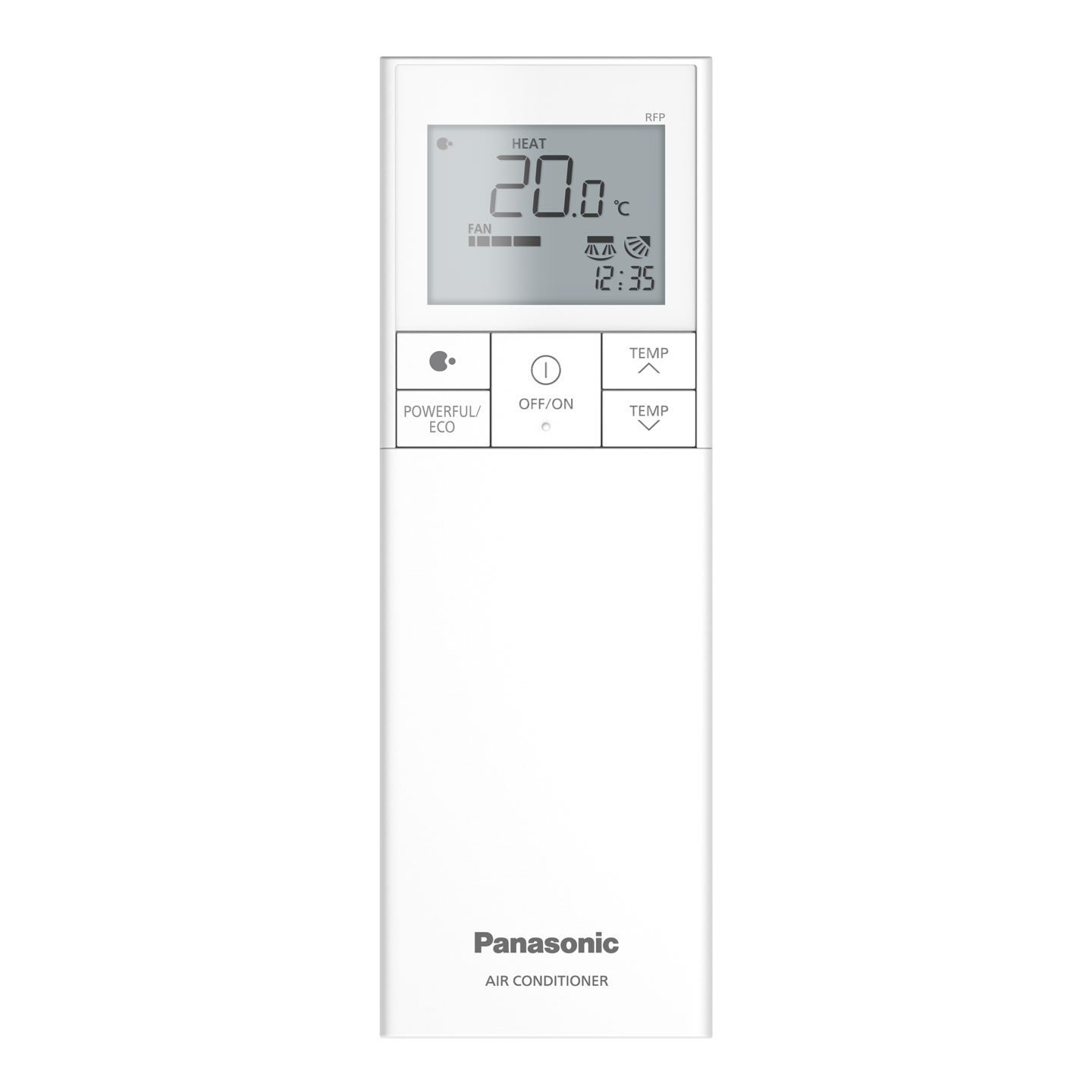

- Wireless remote control included (New modern design)
- Improved comfort cloud app
- Built-in Wi-Fi (easy to connect)
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | CS-MXZ5AKUA |
|---|---|
| Indoor unit | CS-MXZ5AKUA |
| Outdoor Unit | Multi-Zone (CU-2Z18ABUC / CU-3Z22ABUC) |
| Capacity Cooling (Btu/h) / KW | 5,500 (4,400 - 7,800) / 1.62 KW |
| Capacity Heating (Btu/h) / KW | 8,900 (4,100 - 10,900) / 2.61 KW |
| Moisture Removal - High (pints/H) | 0.6 |
| Indoor Air Flow - Cool / Heat (High) | 405 / 405 CFM |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 350 (250 - 470) |
| Power Input - Heating (W) | 640 (300 - 910) |
| Dimensions (indoor) (H x W x D) | 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm) |
| Weight | 22 lbs (10 kg) |
