EXTERIOS® Z Series Single Split System
The Panasonic EXTERIOS® Z series is a wall mounted heating and cooling mini-split heat pump. AI ECO intelligently balances energy savings and comfort. With great energy efficiency and -26°C (-15°F) heating operation, this model is often selected for rebate programs and cold climate solutions.

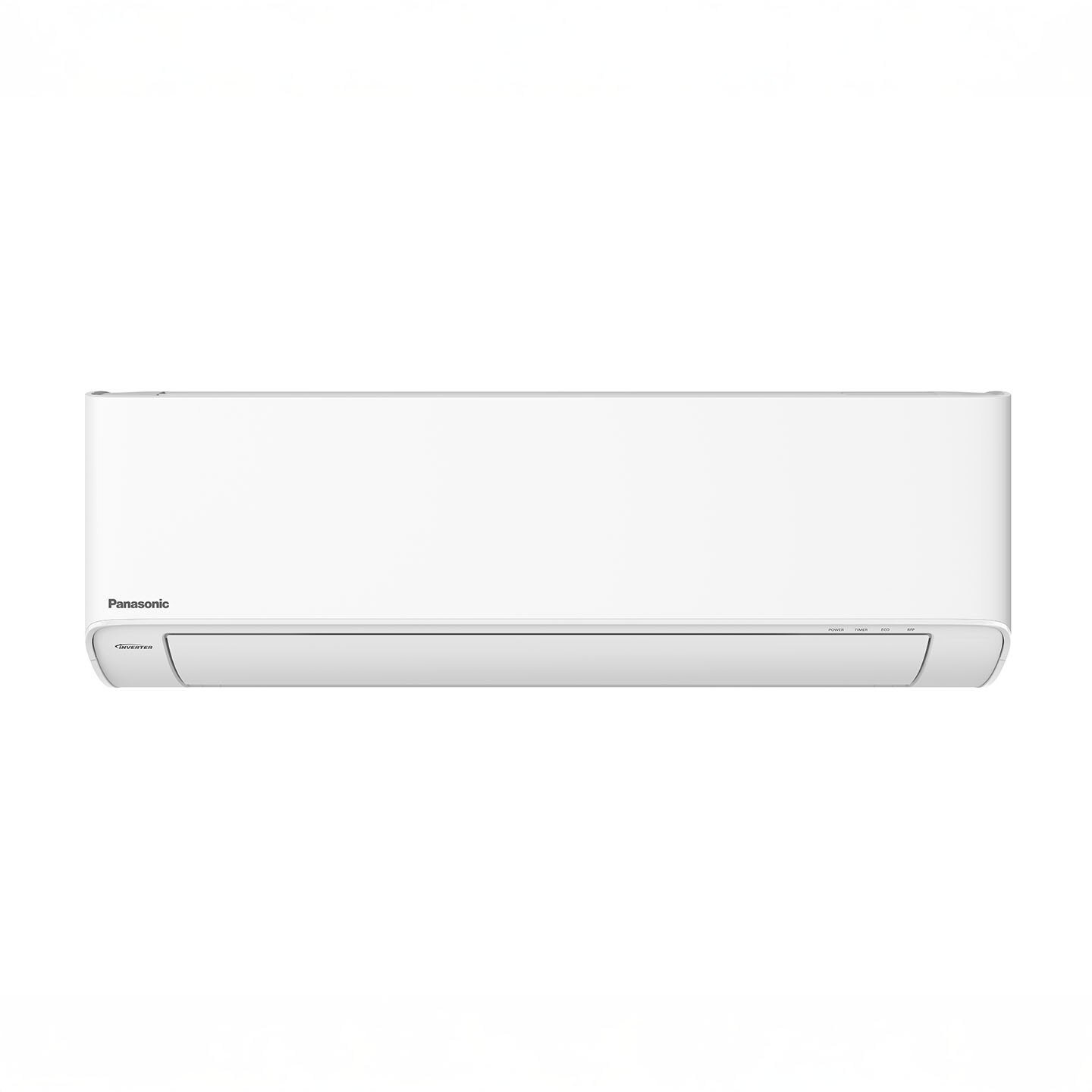

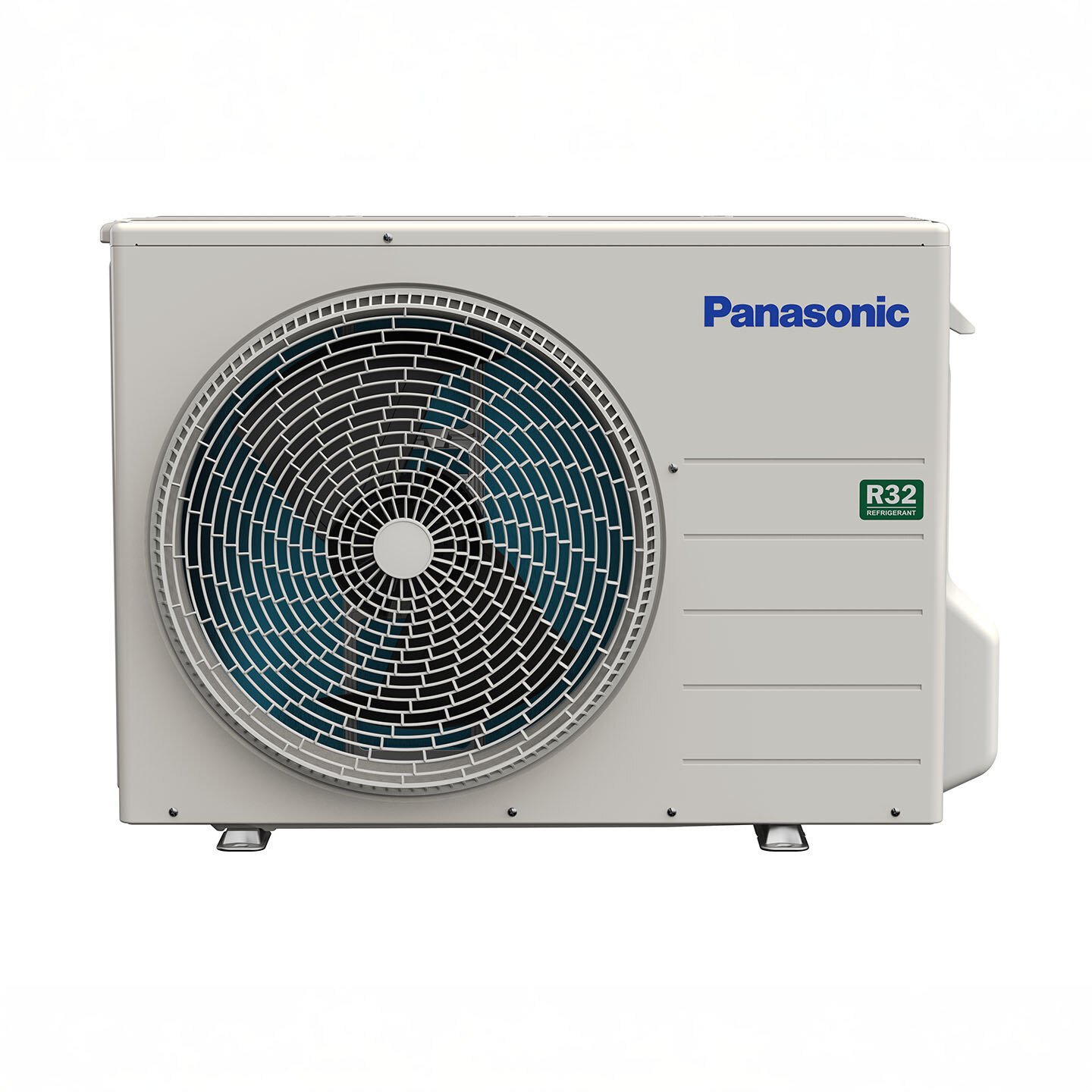

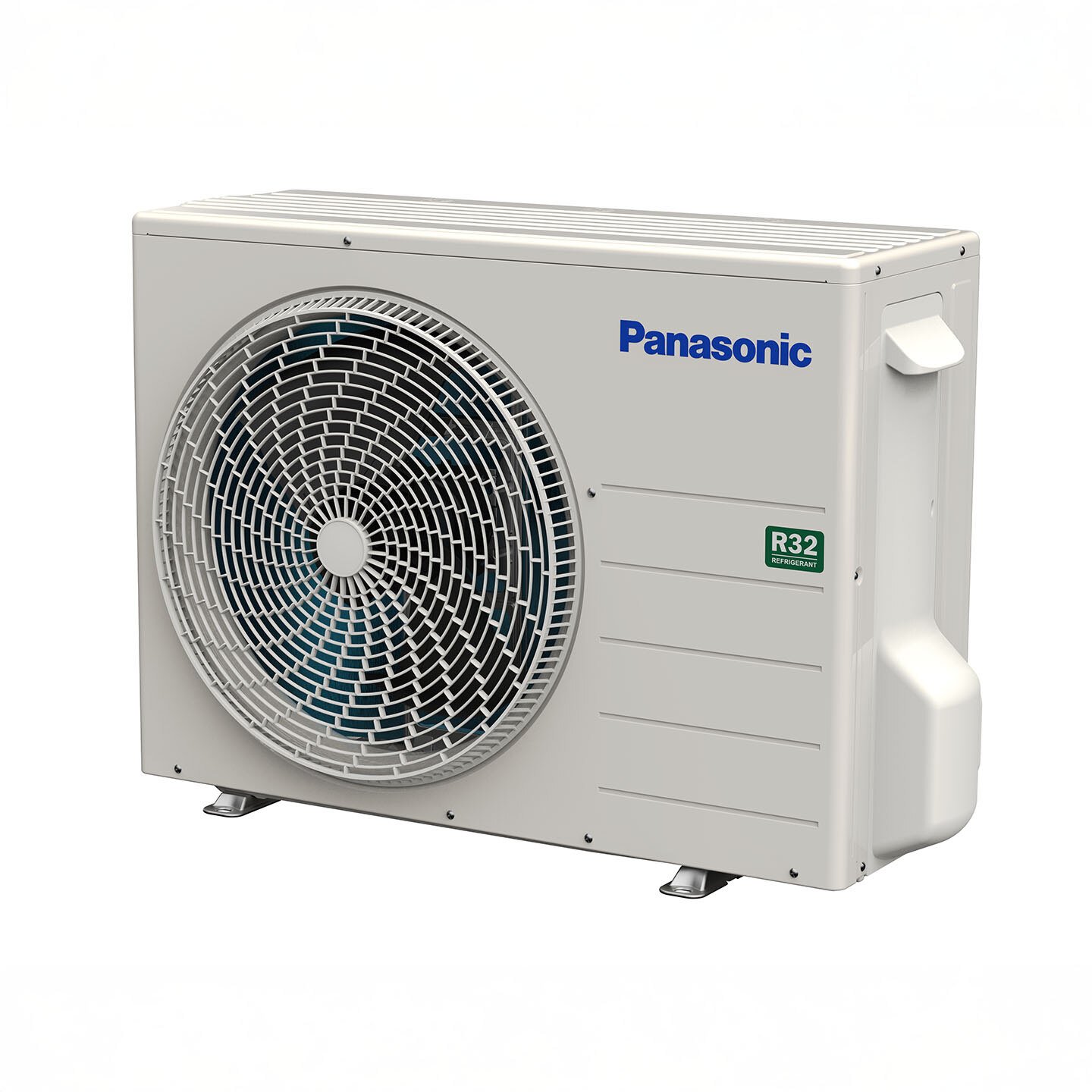

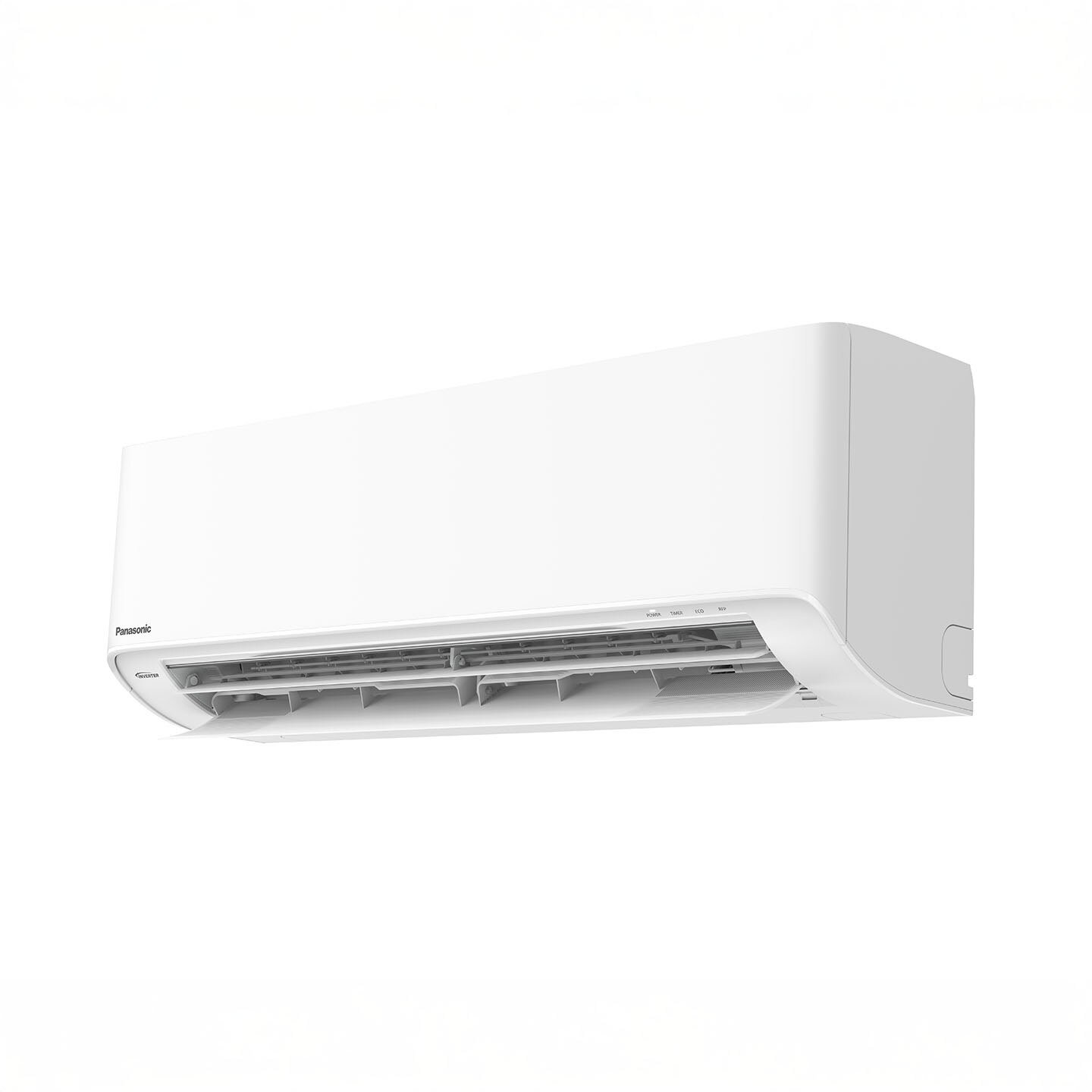

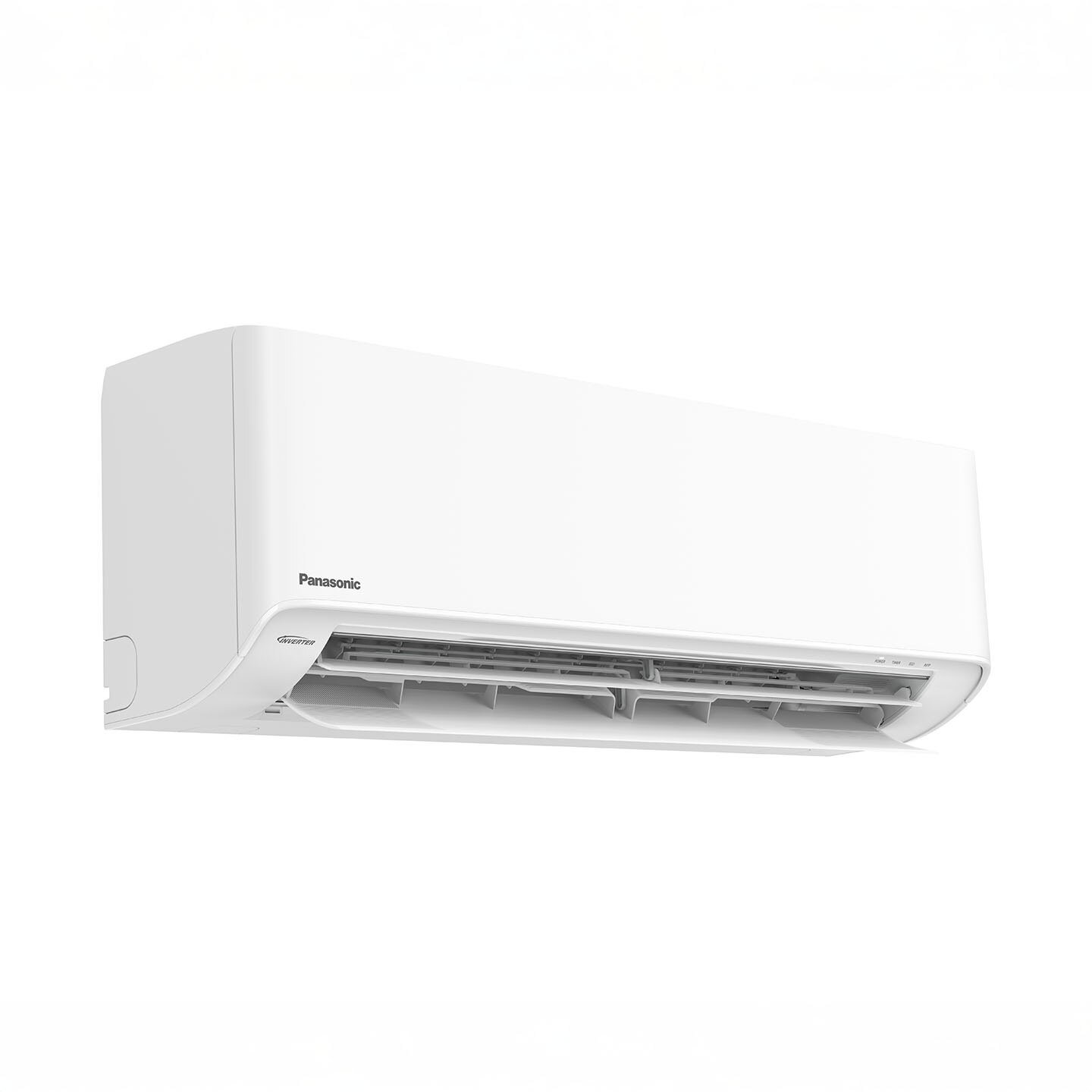

- Indoor unit: CS-Z12AKUAW / Outdoor unit: CU-XZ12AKUAC
- The indoor unit CS-Z12AKUAW can also be used for Multi-Zone Installations
- -26 °C (-15 °F) Cold climate heating operation
- R32 Refrigerant for zero impact on the ozone layer

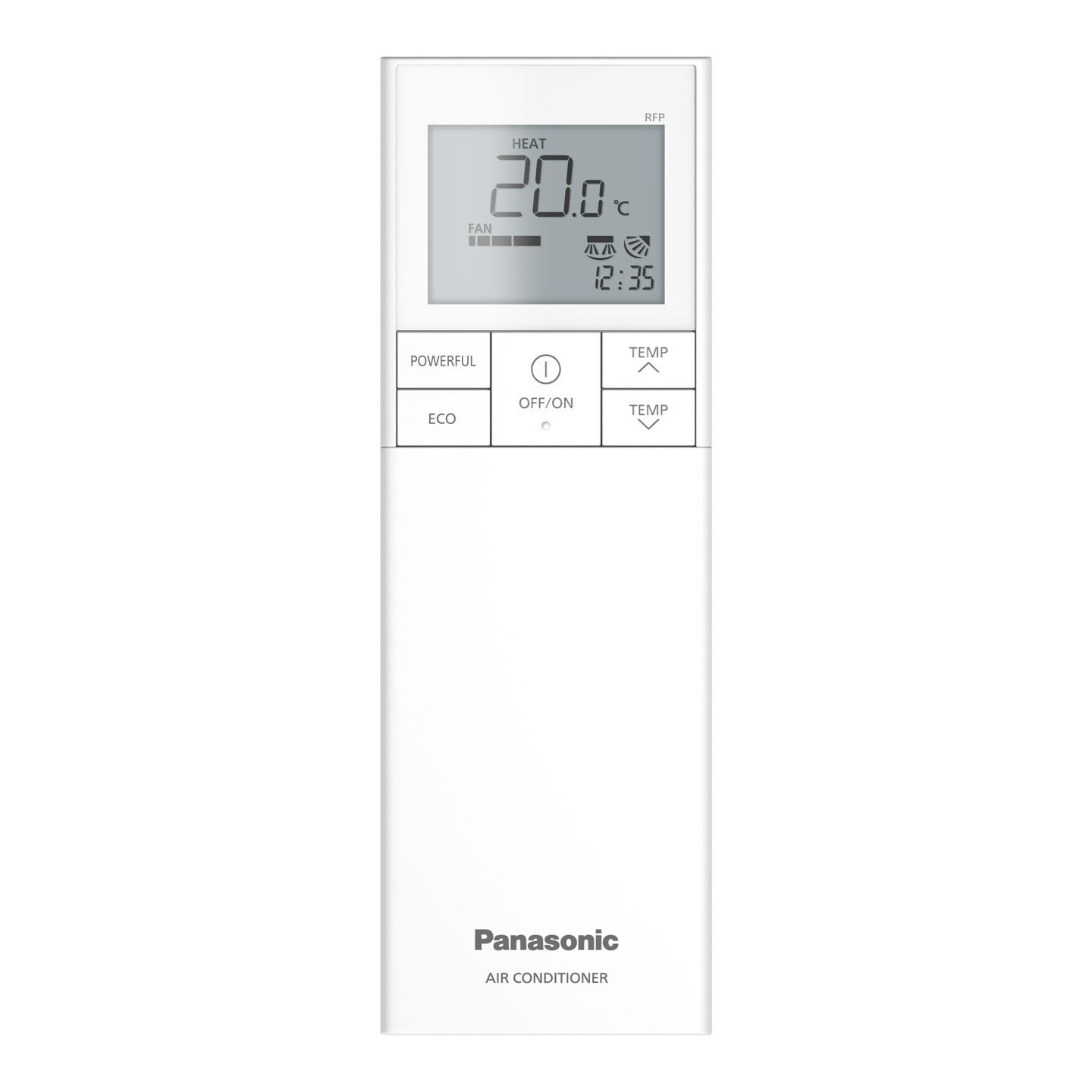

- Wireless remote control included (New modern design)
- AI ECO intelligently balances energy savings and comfort
- Fireplace function
- Base pan heater included
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | Z12AKUA |
|---|---|
| Indoor Unit | CS-Z12AKUAW |
| Outdoor Unit | CU-XZ12AKUAC |
| Capacity Cooling (Btu/h) / KW | 11,500 (2,900 - 16,100) / 3.36 KW |
| Capacity Heating (Btu/h) / KW | 12,000 (3,200 - 23,600) / 3.51 KW |
| Moisture Removal - High (pints/H) | 2.5 |
| Indoor Air Flow - Cool / Heat (High) | 430 / 460 CFM |
| SEER2 | 25 |
| EER2 | 14.35 |
| HSPF2 - Region 4 / Region 5 | 11.70 / 8.90 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 800 |
| Power Input - Heating (W) | 790 |
| Dimensions (indoor) (H x W x D) | 11-5/8" x 34-9/32" x 9-1/32" (295 x 870 x 229 mm) |
| Dimensions (outdoor) (H x W x D) | 24-1/2" x 32-15/32" x 11-25/32" (622 x 824 x 299 mm) |
| Weight (indoor unit/outdoor unit) | 24 lbs (11 kg) / 79 lbs (36 kg) |
