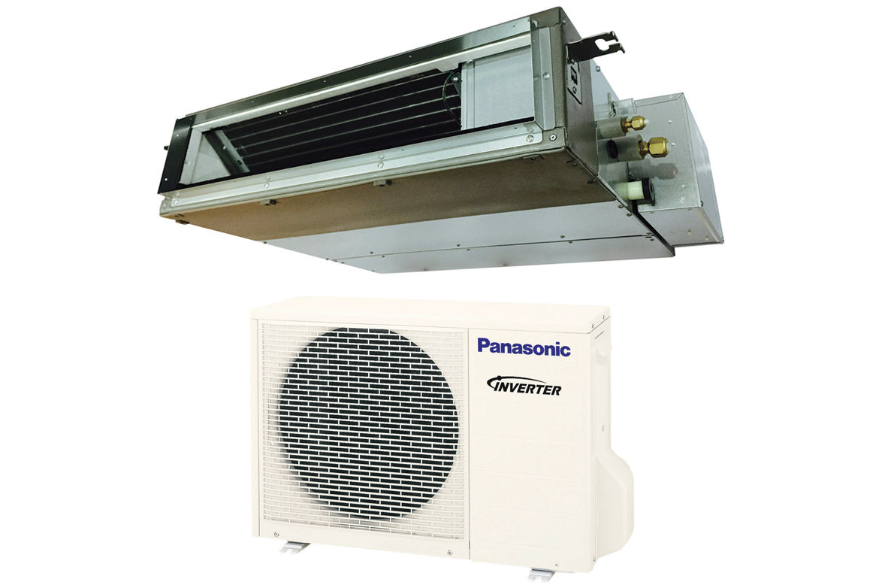

Slim Duct Low-Profile Cool & Heat (9K BTU)
Panasonic Slim-Duct heating and cooling single-zone mini-split air conditioners operate down to -5F and are often selected for rebate programs and cold climate applications. Hidden installation in ceiling, attic, floor or closet. These low-profile indoor units connect to single or multi-zone outdoor units.
- CS-E9SD3UAW Indoor (use w/ single or multi zone outdoor); CU-E9SD3UA Outdoor (single zone)
- Cooling Capacity: 9,000 (4,100 – 10,200) Btu/h; Heating Capacity: 12,000 (4,100 – 14,100) Btu/h
- ENERGY STAR / SEER2 20.5 / EER2 13.0 / HSPF2 Region 4 - Region 5 9.90 / 7.30
- -5ºF Cold Climate Heat Operation
- Wireless controller included; Wired controller option: CZ-RD52DU; WIFI option available
Product Specifications
| SKU | E9SD3UA |
|---|---|
| Indoor Unit | CS-E9SD3UAW |
| Outdoor Unit | CU-E9SD3UA |
| Capacity Cooling (Btu/h) / KW | 9,000 (4100 - 10200) |
| Capacity Heating (Btu/h) / KW | 12000 (4100 - 14100) |
| Moisture Removal - High (pints/H) | 1.3 |
| Dry Air Flow - High (CFM) | 475 |
| Static Pressure in inches w.g. | 0.10 / .022 |
| SEER2 | 20.50 |
| EER2 | 13.00 |
| HSPF2 - Region 4 / Region 5 | 9.90 / 7.30 |
| Power Supply (V, Phase, Hz) | 208 / 230V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 3.6 / 3.2 |
| Running Amps - Heating (A) | 5.7 / 5.1 |
| Power Input - Cooling (W) | 690(250-850) |
| Power Input - Heating (W) | 1.12k(200-1500) |
| Fuse or Circuit Breaker Capacity (A) | 15 |
| Controls | Microprocessor |
| Low Ambient Control | Built -In |
| Wireless Remote Controller | Included |
| Wired Remote Controller (optional) | CZ-RD52DU |
| Fan Speeds | 5 Speeds + Auto |
| Air Filter | NA |
| Refrigerant | R-410A |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 35 / 28/ 25 |
| Operation Sound - Outdoor (Hi) (dB-A) | 48 |
| Refrigerant Piping -Type | Flare |
| Refrigerant Piping - Discharge (in) | 1/4" |
| Refrigerant Piping - Suction (in) | 3/8" |
| Refrigerant Pipe Length (ft) | Max 65.6 |
| Elevation Difference - Outdoor Above (ft) | 49.2 |
| Elevation Difference - Outdoor Below (ft) | 49.2 |
| Height Indoor (Inches) | 7 - 7 / 8" |
| Width Indoor (Inches) | 29 - 17 / 32" |
| Depth Indoor (Inches) | 25 - 7 / 32" |
| Height Outdoor (inches) | 21-11 / 32" |
| Width Outdoor (Inches) | 30-23 / 32" |
| Depth Outdoor (Inches) | 11-13/32” |
| Net Weight Outdoor (Lbs.) | 82 |
