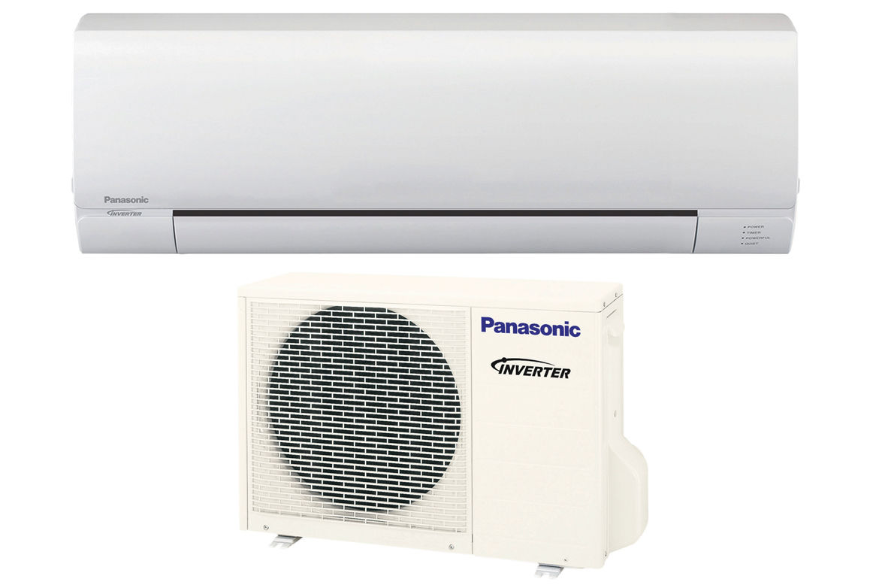

Exterios E Single Split System Wall Mounted Heat Pump
The Panasonic Exterios E series is a Deluxe line of wall mounted single-zone heating and cooling mini-split air conditioners. With energy efficiency and -5F heating operation, these models are often selected for rebate programs and cold climate solutions. ECONAVI sensor technology manages energy efficiency and comfort by continually scanning for occupancy and vacancy.
- CS-E9RKUAW Indoor unit (use with single or multi zone outdoor); CU-E9RKUA Outdoor unit (single zone)
- Cooling Capacity: 9,000 (4,100 – 10,200) Btu/h; Heating Capacity: 12,000 (4,100 – 14,000) Btu/h
- ENERGY STAR / SEER2 23.0 / EER2 13.00 / HSPF2 Region 4 - Region 5 10.30 / 7.40
- -5F Cold Climate Heat Operation; Cooling only operation configure during installation
- ECONAVI energy savings and comfort through sensor technology
- Mini Split Product Line Sheet (PDF)
- Installation Manual / Manuel d'installation - E9RKUA (English-Français)
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Operating Manual / Manuel d'utilisation - E9RKUA (English-Français)
- Service Manual - E9RKUA (English) (PDF)
- Submittal Sheet - HVAC - Single Split System - E9RKUA
- Indoor Units Parts List - E9RKUA (English) (PDF)
- Outdoor Units Parts List - E9RKUA (English) (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | E9RKUA |
|---|---|
| Indoor Unit | CS-E9RKUAW |
| Outdoor Unit | CU-E9RKUA |
| Capacity Cooling (Btu/h) / KW | 9,000 (4,100 - 10,200)/Btu |
| Capacity Heating (Btu/h) / KW | 12,000 (4,100 - 14,100)/Btu |
| Moisture Removal - High (pints/H) | 1.3 |
| Dry Air Flow - High (CFM) | 455 |
| SEER2 | 23.00 |
| EER2 | 13.00 |
| HSPF2 - Region 4 / Region 5 | 10.30 / 7.40 |
| Power Supply (V, Phase, Hz) | 208 / 230V, 1PH, 60Hz |
| Running Amps - Cooling (A) | 3.2 / 3.6 |
| Running Amps - Heating (A) | 5.1 / 5.7 |
| Power Input - Cooling (W) | 690 (250-850) |
| Power Input - Heating (W) | 1,120 (200-1,500) |
| Fuse or Circuit Breaker Capacity (A) | 15 |
| Controls | Microprocessor |
| Low Ambient Control | Equipped |
| Wireless Remote Controller | Included |
| Wired Remote Controller (optional) | CZ-RD516C-1 |
| Fan Speeds | 5 Speeds + Auto |
| Timer | 24 hr Program |
| Air Deflection - Horizontal | Manual |
| Air Deflection - Vertical | Automatic |
| Air Filter | Washable + Anti Microbial Filter |
| Refrigerant | R-410A |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 42 / 29 / 26 |
| Operation Sound - Outdoor (Hi) (dB-A) | 48 |
| Refrigerant Piping -Type | Flare |
| Refrigerant Piping - Discharge (in) | 1 / 4" |
| Refrigerant Piping - Suction (in) | 3 / 8" |
| Refrigerant Pipe Length (ft) | Max. Line Length- 65.6 |
| Elevation Difference - Outdoor Above (ft) | Max . 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max . 49.2 |
| Height Indoor (Inches) | 11-7 / 16" |
| Height Outdoor (inches) | 21-9 / 32" |
| Width Indoor (Inches) | 34-9 / 32" |
| Width Outdoor (Inches) | 30-23 / 32" |
| Depth Indoor (Inches) | 8-7 / 16" |
| Depth Outdoor (Inches) | 11-13 / 32" |
| Net Weight Indoor (Lbs.) | 20 |
| Net Weight Outdoor (Lbs.) | 82 |
| ECONAVI | ECONAVI Mono Sensor |
| ENERGY STAR | ENERGY STAR |
