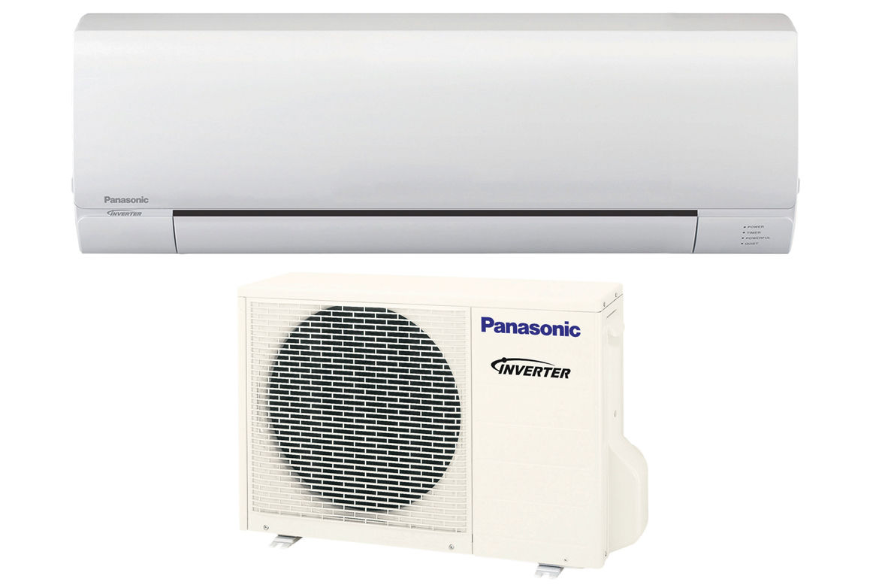

Exterios E Single Split System Wall Mounted Heat Pump (24K BTU)
The Panasonic Exterios E series is a Deluxe line of wall mounted single-zone heating and cooling mini-split air conditioners. With energy efficiency and -5F heating operation, these models are often selected for rebate programs and cold climate solutions. ECONAVI sensor technology manages energy efficiency and comfort by continually scanning for occupancy and vacancy.
- CS-E24RKUAW Indoor unit (use with single or multi zone outdoor); CU-E24RKUA Outdoor unit (single zone)
- Cooling Capacity: 24,000 (5,800 – 27,200) Btu/h; Heating Capacity: 28,800 (5,800 – 29,200) Btu/h
- SEER2 19.00 / EER2 10.20 / HSPF2 Region 4 - Region 5 9.00 / 6.90
- -5ºF Cold Climate Heat Operation; Cooling only operation - configure during installation
- ECONAVI energy savings and comfort through sensor technology
- Mini Split Product Line Sheet (PDF)
- Installation Manual / Manuel d'installation - E24RKUA (English-Français)
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Operating Manual / Manuel d'utilisation - E24RKUA (English-Français)
- E24RKUA Service Manual EN (PDF)
- Submittal Sheet - HVAC - Single Split System - E24RKUA
- CS-E24RKUAW Indoor Parts List (PDF)
- CU-E24RKUA Outdoor Parts List (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | E24RKUA |
|---|---|
| Indoor Unit | CS-E24RKUAW |
| Outdoor Unit | CU-E24RKUA |
| Capacity Cooling (Btu/h) / KW | 24,000 (5,800 ~ 27,200)/Btu |
| Capacity Heating (Btu/h) / KW | 28,800 (5,800 ~ 29,200)/Btu |
| Moisture Removal - High (pints/H) | 7.6 |
| Dry Air Flow - High (CFM) | 715 |
| SEER2 | 19.00 |
| EER2 | 10.20 |
| HSPF2 - Region 4 / Region 5 | 9.00 / 6.90 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single phase, 60Hz |
| Running Amps - Cooling (A) | 10.8 / 11.9 |
| Running Amps - Heating (A) | 11.4 / 12.6 |
| Power Input - Cooling (W) | 2,350 (430-2,720) |
| Power Input - Heating (W) | 2,500 (380-2,660) |
| Fuse or Circuit Breaker Capacity (A) | 25 |
| Controls | Microprocessor |
| Low Ambient Control | Equipped |
| Wireless Remote Controller | Included |
| Wired Remote Controller (optional) | CZ-RD516C-1 |
| Fan Speeds | 5 Speeds + Auto |
| Timer | 24 hr Program |
| Air Deflection - Horizontal | Automatic |
| Air Deflection - Vertical | Automatic |
| Air Filter | Washable + Anti Microbial Filter |
| Refrigerant | R-410A |
| Refrigerant Control | Electric Expansion Valve |
| Operation Sound - Indoor (Hi/Me/Lo) (dB-A) | 48 / 40 / 37 |
| Operation Sound - Outdoor (Hi) (dB-A) | 51 |
| Refrigerant Piping -Type | Flare |
| Refrigerant Pipe Length (ft) | Max. Line Length- 100 |
| Refrigerant Piping - Discharge (in) | 1 / 4 |
| Refrigerant Piping - Suction (in) | 5 / 8 |
| Elevation Difference - Outdoor Above (ft) | Max . 49.2 |
| Elevation Difference - Outdoor Below (ft) | Max . 49.2 |
| Height Indoor (Inches) | 11-7 / 16" |
| Height Outdoor (inches) | 31-5 / 16" |
| Width Indoor (Inches) | 42-5 / 32" |
| Width Outdoor (Inches) | 34-15 / 32" |
| Depth Indoor (Inches) | 9-15 / 32" |
| Depth Outdoor (Inches) | 12-5 / 8" |
| Net Weight Indoor (Lbs.) | 26 |
| Net Weight Outdoor (Lbs.) | 132 |
| ECONAVI | ECONAVI Mono Sensor |
