discontinued

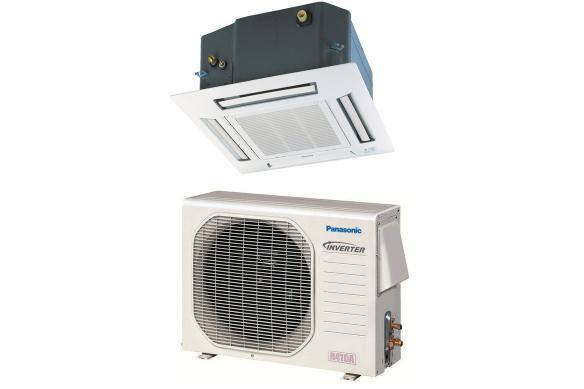

4-Way Ceiling Cassette Cool & Heat (18K BTU)
Panasonic 4-Way ceiling cassette heating and cooling single-zone mini-split air conditioner provides 4 directional air flow from a flush to ceiling inset unit. Indoor unit operates with single and multi-zone outdoor units.
- CS- E18RB4UW indoor unit (use w/ single or multi zone outdoor); CU-E18RB4U outdoor unit (single zone)
- CZ-BT20U indoor grille sold separately
- Cooling capacity: 17,500 (4,400 – 18,700) Btu/h; Heating capacity: 24,400 (4,400 – 21,000) Btu/h
- SEER2 17.50 / EER2 10.25 / HSPF2 (Region 4 / Region 5) 7.90 / 6.00
- Wireless controller included and wired controller CZ-RD52CU optional, WIFI option also available
- Residential_Air_Conditioning_Catalog_en
- Submittal Sheet - CS-E18RB4UW (English) (PDF)
- Operating Manual - Manuel d-utilisation - CS-E18RB4UW (English - Francais) (PDF)
- Install Manual - CS-E18RB4UW (English) (PDF)
- Outdoor Units Parts List - CS-E18RB4UW (English) (PDF)
- Indoor Units Parts List - CS-E18RB4UW (English) (PDF)
- Service Manual - CS-E18RB4UW (English) (PDF)
- Mini Split Product Line Sheet (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | E18RB4U |
|---|---|
| Indoor Unit | CS-E18RB4UW |
| Outdoor Unit | CU-E18RB4U/Multizone |
| Capacity Cooling (Btu/h) / KW | 17,500 (4,400 – 18,700) |
| Capacity Heating (Btu/h) / KW | 24,400 (4,400 – 21,000) |
| Moisture Removal - High (pints/H) | 6.1 |
| Dry Air Flow - High (CFM) | 495/450 |
| SEER2 | 17.50 |
| EER2 | 10.25 |
| HSPF2 - Region 4 / Region 5 | 7.90 / 6.00 |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single phase, 60Hz |
| Power Input - Cooling (W) | 1,700 (250-1,850) |
| Power Input - Heating (W) | 2,340 (270-2,500) |
| Dimensions (indoor) (H x W x D) | 10-1/4" x 22-3/4" x 22-3/4" |
| Dimensions (outdoor) (H x W x D) | 32-1/2" x 34-1/2" x 12-3/4" |
| Weight (indoor/outdoor) (Lbs) | 40/132 |
