discontinued

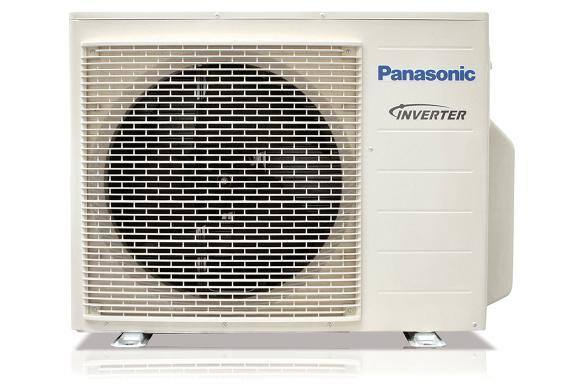

Outdoor Multi-Zone Split - 2 Zone
2 Zone; 1.5 Ton Multi-Zone outdoor condenser unit provides heating and cooling for 2 indoor units. -5F Cold Climate Heat Operation. Select wall mount, 4-Way Cassette or Slim Duct units for indoor installation.
- Cooling capacity: 16,700 (7,200 - 20,000) Btu/h, heating capacity: 20,200 (7,200 - 24,600) Btu/h
- SEER2 Non-Ducted 19.00 / Ducted 19.00
- EER2 Non-Ducted 12.55 / Ducted 12.55
- HSPF2 (Region 4 / Region 5) Non-Ducted 9.10 / 7.40 and Ducted 8.80 / 7.40
- ENERGY STAR
Product Specifications
| SKU | CU-2E18SBU-5 |
|---|---|
| Indoor Unit | Wall mount, 4-Way cassette, slim duct |
| Outdoor Unit | CU-2E18SBU-5 |
| Capacity Cooling (Btu/h) / KW | 16,700 (7,200-20,000) |
| Capacity Heating (Btu/h) / KW | 20,200 (7,200-24,600) |
| Moisture Removal - High (pints/H) | -- |
| Dry Air Flow - High (CFM) | 1,447 |
| SEER2 | Non-Ducted 19.00 / Ducted 19.00 |
| EER2 | Non-Ducted 12.55 / Ducted 12.55 |
| HSPF2 - Region 4 / Region 5 | Non-Ducted 9.10 / 7.40 and Ducted 8.80 / 7.40 |
| Power Supply (V, Phase, Hz) | 230 / 208 V, Single phase, 60 Hz |
| Power Input - Cooling (W) | 1,330 |
| Power Input - Heating (W) | 1,750 |
| Dimensions (indoor) (H x W x D) | -- |
| Dimensions (outdoor) (H x W x D) | 31-5/16" x 34-15/32" (+3-3/4") x 14-3/6" |
| Weight (indoor/outdoor) (Lbs) | --/157 |
