discontinued

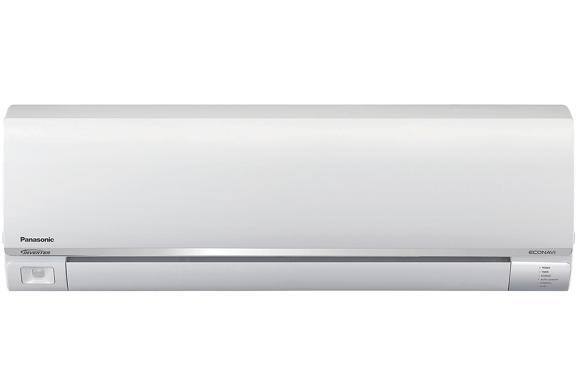

Multi-Zone - Indoor Wall Mount Unit (5K BTU)
5,000 Btu Indoor wall mount unit for multi-zone installations. Use with one of the multi-zone outdoor units.
- Service Manual - HVAC - CS-ME5RKUA
- Operating manual / Manuel d'utilisation - CS-ME5RKUA (English-Français)
- Installation Manual / Manuel d'installation - CS-ME5RKUA (English-Français)
- Submittal Sheet - HVAC - Multi-Split Indoor - CS-ME5RKUA
- Replacement Parts List - HVAC - Indoor Unit - CS-ME5RKUA
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | CS-ME5RKUA |
|---|---|
| Indoor Unit | CS-ME5RKUA |
| Outdoor Unit | Multi-Zone |
| Capacity Cooling (Btu/h) / KW | 5,500 (4,400-7,800) |
| Capacity Heating (Btu/h) / KW | 8,900 (4,100-10,900) |
| Moisture Removal - High (pints/H) | 0.6 |
| Dry Air Flow - High (CFM) | 415 |
| SEER2 | -- |
| EER2 | -- |
| HSPF - Heating | -- |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Power Input - Cooling (W) | 400 (250-640) |
| Power Input - Heating (W) | 600 (300-960) |
| Dimensions (indoor) (H x W x D) | 11-7/16" x 34-9/32" x 8-7/16" |
| Dimensions (outdoor) (H x W x D) | -- |
| Weight (indoor/outdoor) (Lbs) | 20/-- |
