discontinued

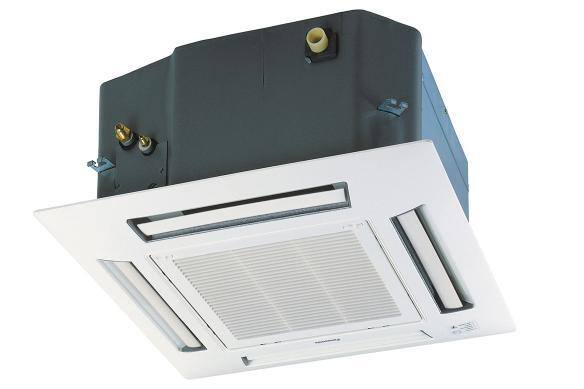

Single or Multi-Zone - Indoor 4-Way Cassette (12K BTU)
12,000 Btu Indoor 4-Way ceiling cassette for single or multi-zone installations. Use with specified single-zone outdoor unit or one of multi-zone outdoor units.
- Service Manual - CS-E12RB4UW (English)
- Operating Manual - Manuel d-utilisation - CS-E12RB4UW (English - Francais) (PDF)
- Install Manual - CS-E12RB4UW (English) (PDF)
- Submittal Sheet - CS-E12RB4UW (English) (PDF)
- Indoor Units Parts List - CS-E12RB4UW (English) (PDF)
- Outdoor Units Parts List - CS-E12RB4UW (English) (PDF)
- Residential Heat Pump Solutions Catalog (English) (PDF)
- Heat Pump Solutions Catalog (R410 refrigerant)
Product Specifications
| SKU | CS-E12RB4UW |
|---|---|
| Indoor Unit | CS-E12RB4UW |
| Outdoor Unit | Single/Multi Zone |
| Capacity Cooling (Btu/h) / KW | 10,900 (6100-13,000) |
| Capacity Heating (Btu/h) / KW | 15,300 (4,100-19,800) |
| Moisture Removal - High (pints/H) | 3.2 |
| Dry Air Flow - High (CFM) | 310 (Cooling) / 390 (Heating) |
| SEER2 | -- |
| EER2 | -- |
| HSPF - Heating | -- |
| Power Supply (V, Phase, Hz) | 208 / 230V, Single Phase, 60 Hz |
| Power Input - Cooling (W) | 1,150 |
| Power Input - Heating (W) | 1,360 |
| Dimensions (indoor) (H x W x D) | 10-1/4" x 22-3/4" x 22-3/4" |
| Dimensions (outdoor) (H x W x D) | -- |
| Weight (indoor/outdoor) (Lbs) | 40/-- |
