ClimaPure™ XZ Series Single Split System

SKU:

XZ24AKUA

Product Specifications

Ductless heating and air conditioning systems provide optimal comfort along with the reduced energy consumption that comes with zoned temperature control. The new XZ ductless system features an improved nanoe™ X — a built-in air and surface purification technology that provides a comfortable environment for everyone.

Contact Sales Find a Dealer

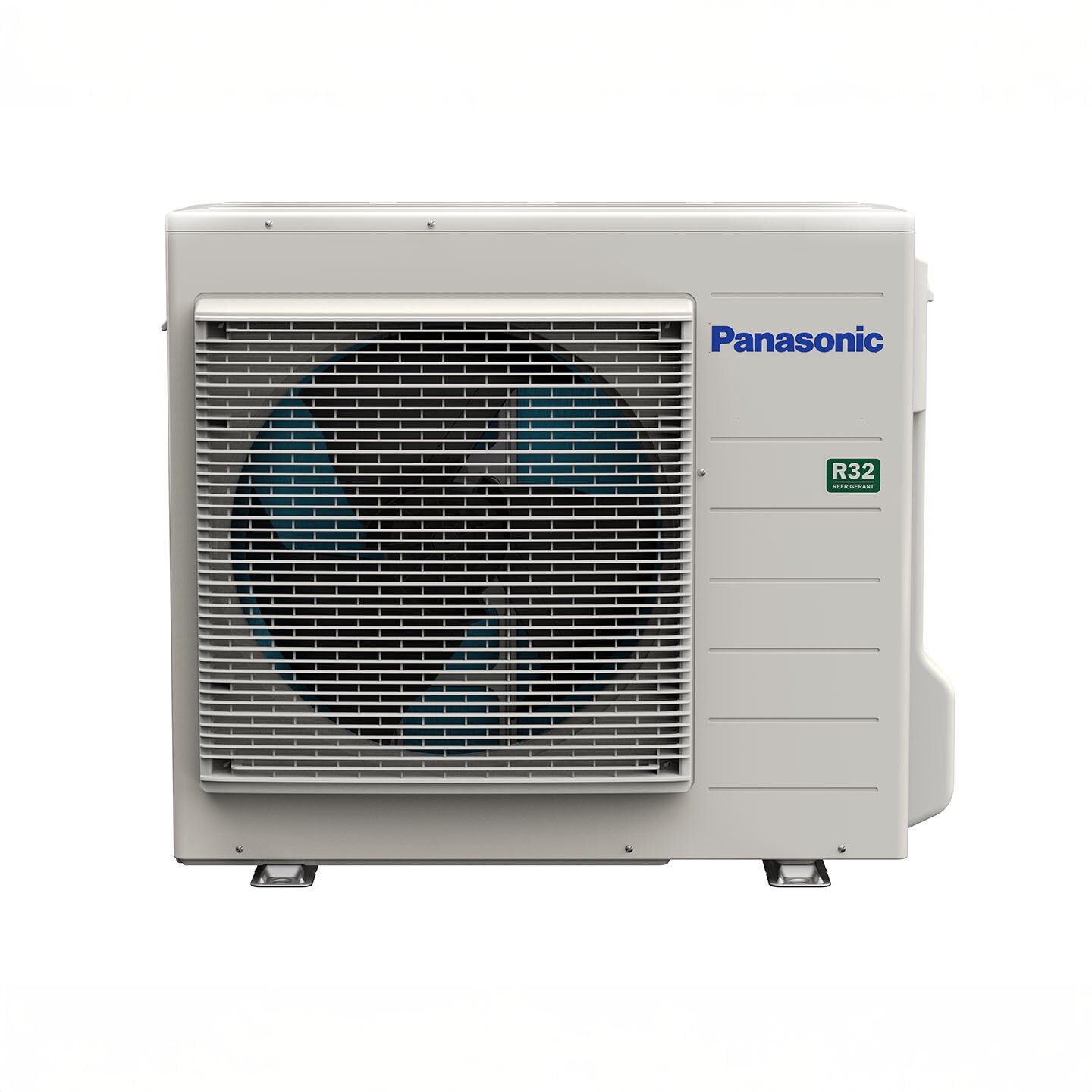

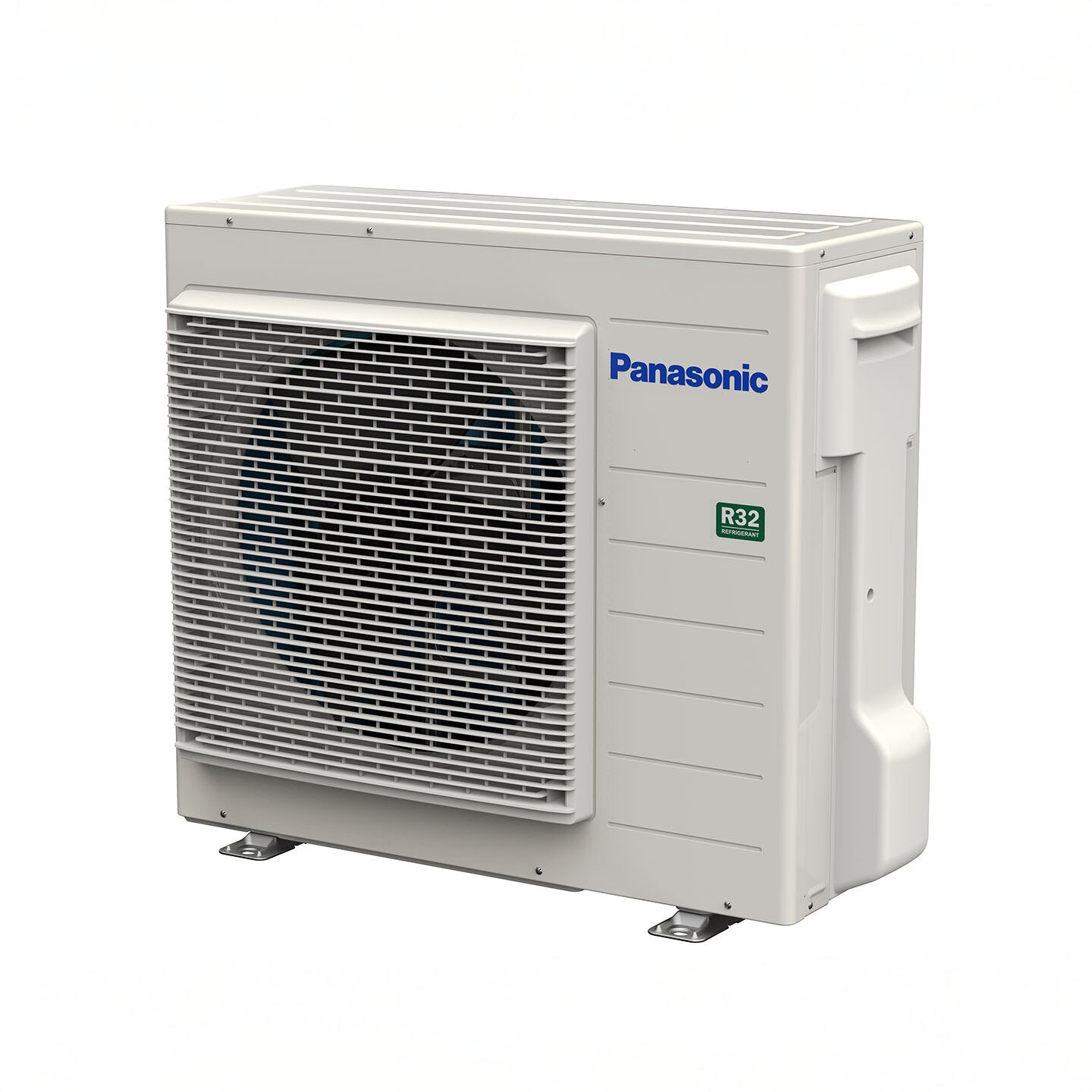

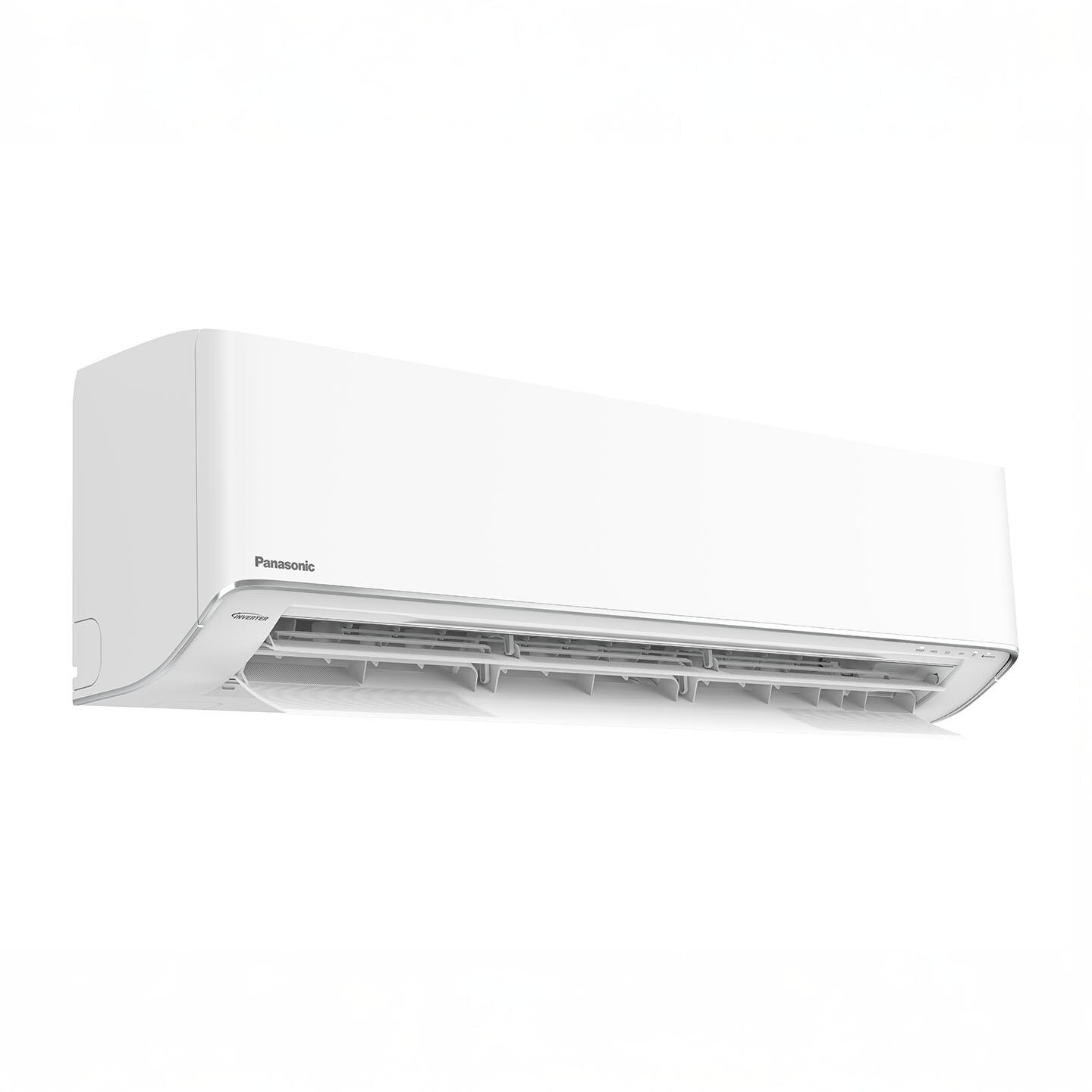

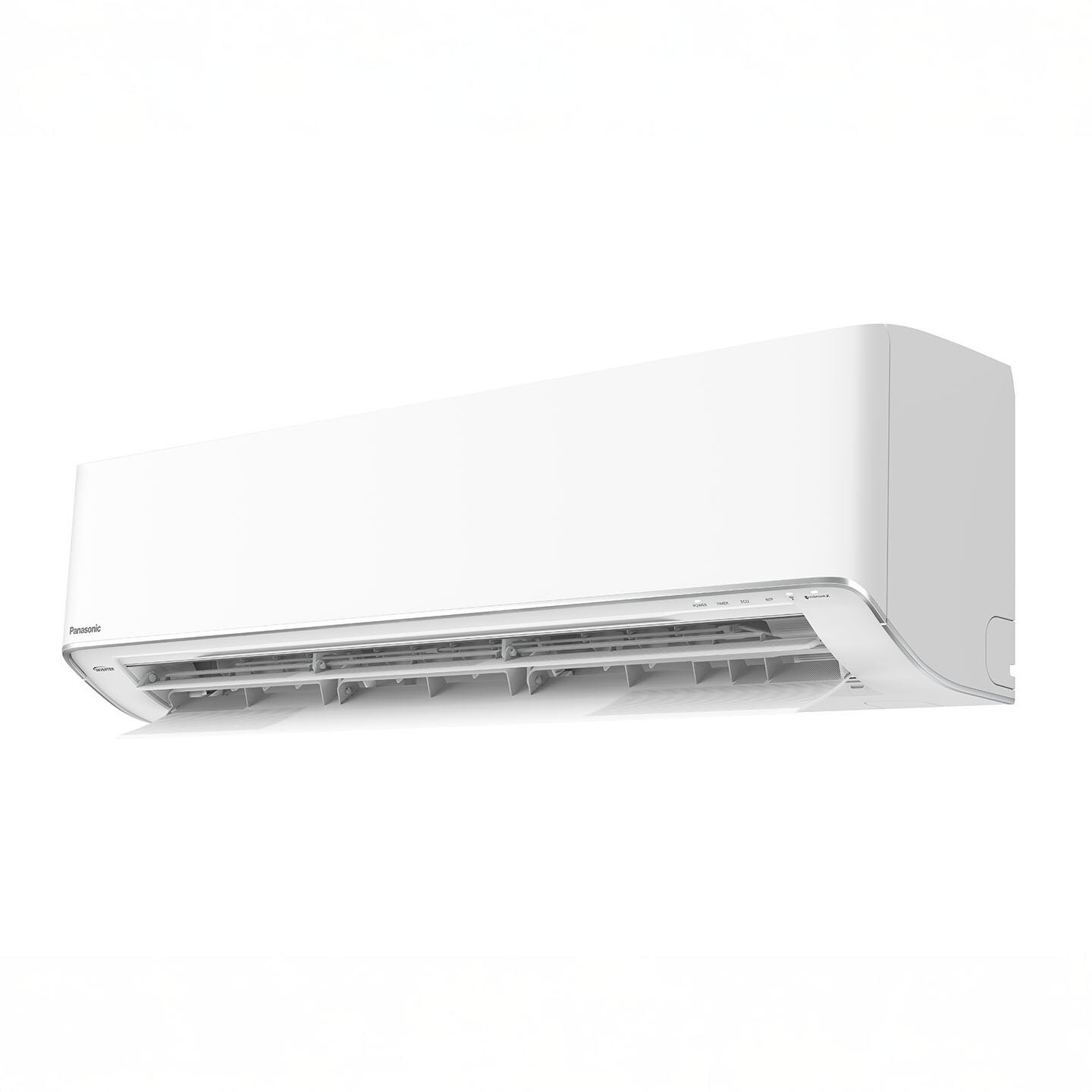

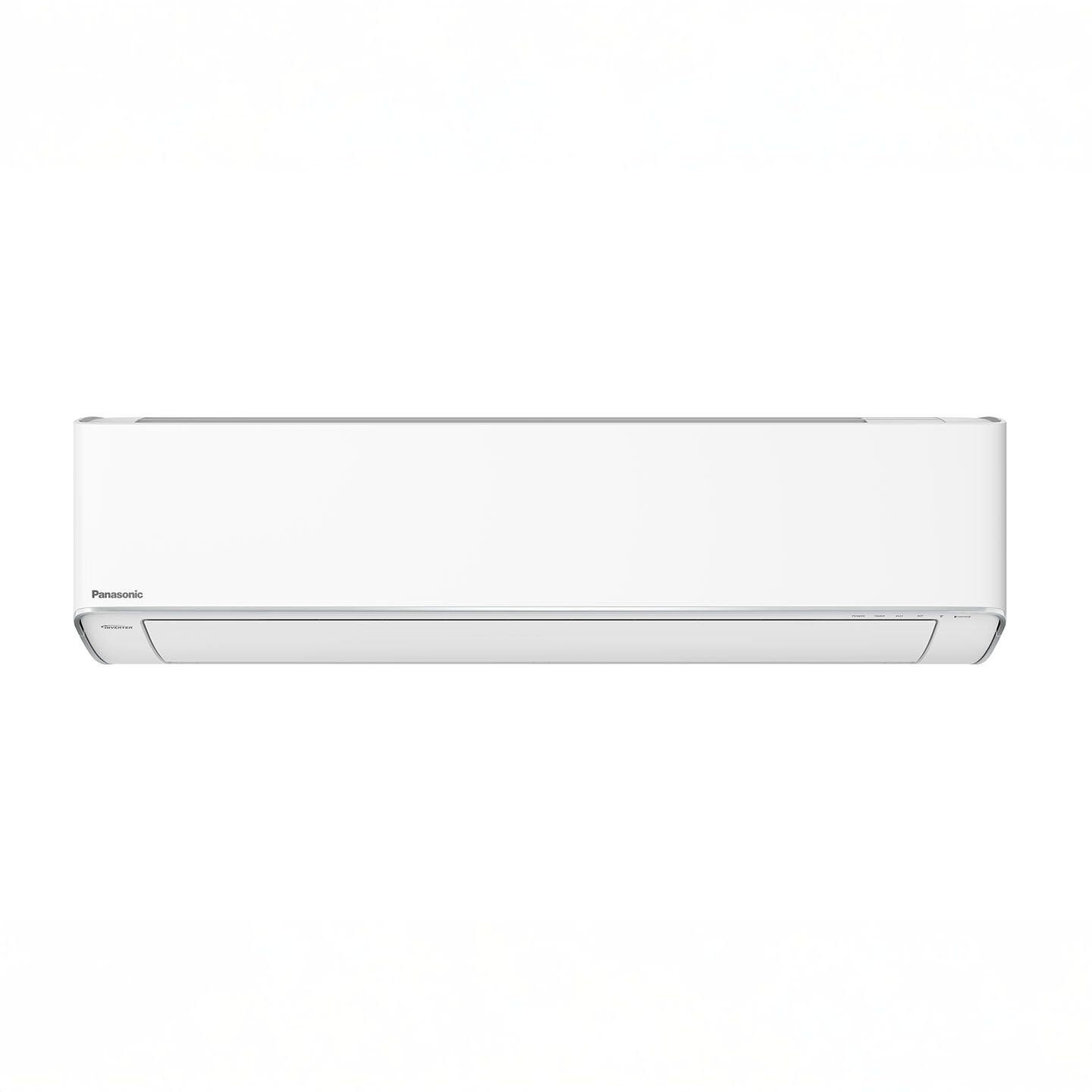

Indoor unit: CS-XZ24AKUAW / Outdoor unit: CU-XZ24AKUAC
-26 °C (-15 °F) Cold climate heating operation
R32 Refrigerant for zero impact on the ozone layer
Improved nanoe™ X - air and surface purification
AI ECO intelligently balances energy savings and comfort
Wireless remote control included (New modern design)
Improved comfort cloud app
Built-in Wi-Fi (easy to connect)
Fireplace function
Base pan heater included
ENERGY STAR® Cold Climate Certified

Product Specifications

SKU	XZ24AKUA
Indoor Unit	CS-XZ24AKUAW
Outdoor Unit	CU-XZ24AKUAC
Capacity Cooling (Btu/h) / KW	24,000 (6,100 - 27,200) / 7.02 KW
Capacity Heating (Btu/h) / KW	28,800 (6,800 / 37,200) /8.46 KW
Moisture Removal - High (pints/H)	7.6
Indoor Air Flow - Cool / Heat (High)	685 / 695 CFM
SEER2	20.50
EER2	11.75
HSPF2 - Region 4 / Region 5	11.00 / 8.30
Power Supply (V, Phase, Hz)	208 / 230V, Single Phase, 60Hz
Power Input - Cooling (W)	2040
Power Input - Heating (W)	2500
Dimensions (indoor) (H x W x D)	11-5/8" x 40-31/32" x 9-5/8" (295 x 1040 x 244 mm)
Dimensions (outdoor) (H x W x D)	31-5/16" x 34-15/32" x 12-5/8" (795 x 875 x 320 mm)
Weight (indoor/outdoor)	31 lbs (14 kg) / 110 lbs (50 kg)

Ozone concentration during the nanoe™ X generating mode has been verified by California Air Resources Board (CARB) and INTERTEK respectively per authorized testing standards.

Standard value of California Air Resources Board (CARB): 0.05ppm or lower
Standard value of INTERTEK “Verified Zero Ozone”: 0.005ppm or lower
