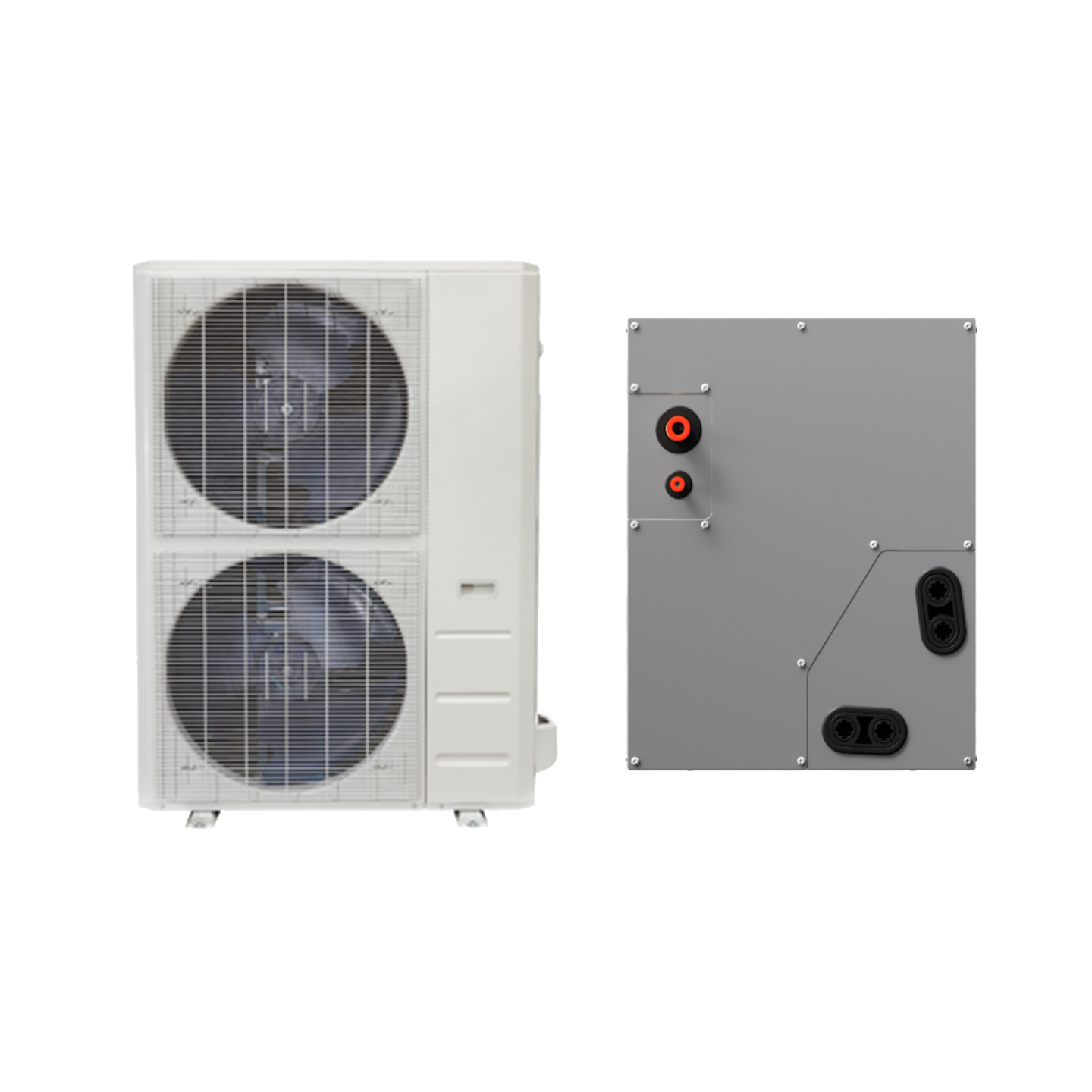

INTERIOS™ 4 - 5 Ton A-Coil Heat Pump for Hybrid Heating and Cooling
Panasonic INTERIOS™ 4 - 5 Ton Cold Climate A-Coil offers a hybrid Heat Pump solution. The A-Coil integrates with a new or existing furnace to provide energy efficient, whole home heating and cooling.
- Compatible Outdoor Units: (48K) CU-HM48BAHU or (60K) CU-HM55BAHU
- -30°C (-20°F) Heating Operation
- R454B Refrigerant for Zero Impact on the Ozone Layer
- Multi-Position Design
- A2L Sensor Included
- Easy Maintenance
Product Specifications
| SKU | CS-HM60BAMU3 | |
|---|---|---|
| Indoor Unit | CS-HM60BAMU3 | CS-HM60BAMU3 |
| Outdoor Unit | CU-HM48BAHU | CU-HM55BAHU |
| ENERGY STAR® | -- | -- |
| Power Supply - Indoor Unit (V, Phase, Hz) | 24V, Single Phase, 60Hz | 24V, Single Phase, 60Hz |
| Power Supply - Outdoor Unit (V, Phase, Hz) | 208 /230V, Single Phase, 60Hz | 208 /230V, Single Phase, 60Hz |
| Capacity (Heating / Cooling) | 48,000 Btu/h / 45,000 Btu/h | 56,000 Btu/h / 52,000 Btu/h |
| SEER2 | 15.2 | 15.9 |
| EER2 | 10 | 10 |
| HSPF2 - Region 4 / Region 5 | 8.8 / 7.4 | 8.5 / 6.9 |
| Capacity at -15°C (5°F) | 42,000 Btu/h | 45,000 Btu/h |
| COP at -15°C (5°F) | 1.85 |
1.8 |
| Refrigerant | R454B | R454B |
| Weight - Indoor Unit | 96.8 lbs (43.9 kg) | 96.8 lbs (43.9 kg) |
| Weight - Outdoor Unit | 201.1 lbs (91.2 kg) |
243 lbs (110.2 kg) |
| Dimensions (H x W x D) - Indoor Unit | 27-13/16" x 21-5/8" x 21-1/2" (706 x 549 x 546 mm) | 27-13/16" x 21-5/8" x 21-1/2" (706 x 549 x 546 mm) |
| Dimensions (H x W x D) - Outdoor Unit | 38-7/16" x 38-5/8" x 16-3/8" (975 x 980 x 415 mm) | 52-1/2" x 37-1/2" x 16-3/8" (1333 x 952 x 415 mm) |
