discontinued
INTERIOS™ 4.0 Ton Cold Climate Central A-Coil Heat Pump
4.0 Ton Cold Climate Central A-Coil Heat Pump System integrates with a furnace to provide energy efficient, whole home heating and cooling.

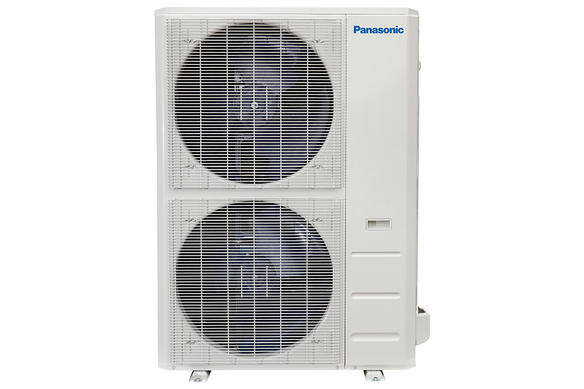

- Indoor Unit: CS-HE48YAC6 / Outdoor Unit: CU-HE48YAHK6
- -30°C (-20°F) Cold Climate Heating Operation
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | HE48YAC6 |
|---|---|
| Indoor Unit | CS-HE48YAC6 |
| Outdoor Unit | CU-HE48YAHK6 |
| ENERGY STAR® | Yes |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Capacity (Heating/Cooling) | 46,000 BTU / 51,000 BTU |
| SEER2 | 14.3 |
| EER2 | 8.6 |
| HSPF2 - Region 4 / Region 5 | 9.0/7.5 |
| Capacity at -15°C | 40,000 BTU |
| COP at -15°C | 1.8 |
| Refrigerant | R410a |
| Refrigerant Charge (oz) | 169.31 oz |
| Net Weight - Indoor Unit (lbs) | 65.26 |
| Net Weight - Outdoor Unit (lbs) | 220.24 |
| Dimensions (W x D x H) - Indoor Unit (mm) | 533 x 533 x 609 |
| Dimensions (W x D x H) - Outdoor Unit (mm) | 1090 x 495 x 1480 |
