discontinued
INTERIOS™ 3.0 Ton Cold Climate Central A-Coil Heat Pump
3.0 Ton Cold Climate Central A-Coil Heat Pump System integrates with a furnace to provide energy efficient, whole home heating and cooling.

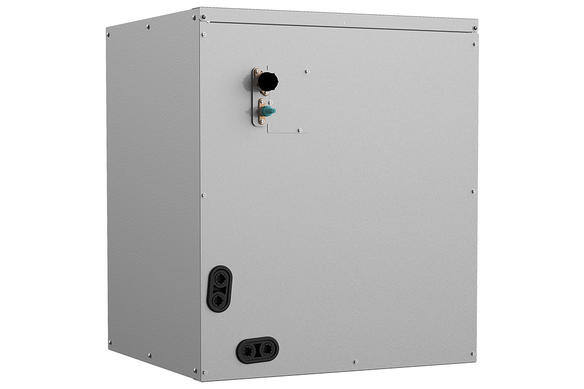

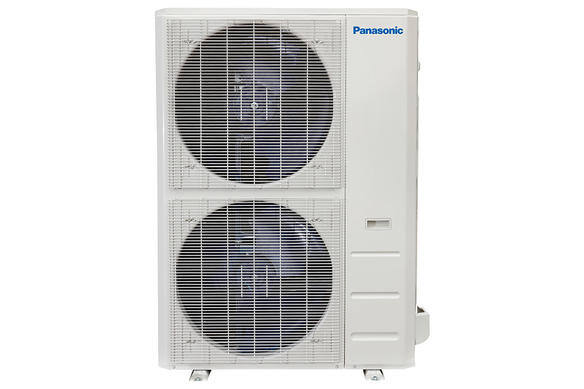

- Indoor Unit: CS-HE36YAC6 / Outdoor Unit: CU-HE36YAHK6
- -30°C (-20°F) Cold Climate Heating Operation
- ENERGY STAR® Cold Climate Certified
Product Specifications
| SKU | HE36YAC6 |
|---|---|
| Indoor Unit | CS-HE36YAC6 |
| Outdoor Unit | CU-HE36YAHK6 |
| ENERGY STAR® | Yes |
| Power Supply | 208/230V, 1Ph, 60Hz |
| Capacity (Heating/Cooling) | 35,000 BTU / 39,000 BTU |
| SEER2 | 15.2 |
| EER2 | 10 |
| HSPF2 - Region 4 / Region 5 | 10/8.0 |
| Capacity at -15°C | 32,000 BTU |
| COP at -15°C | 2 |
| Refrigerant | R410a |
| Refrigerant Charge (oz) | 165.79 oz |
| Net Weight - Indoor Unit (lbs) | 64.37 |
| Net Weight - Outdoor Unit (lbs) | 227.07 |
| Dimensions (W x D x H) - Indoor Unit (mm) | 533 x 533 x 609 |
| Dimensions (W x D x H) - Outdoor Unit (mm) | 1090 x 495 x 1480 |
