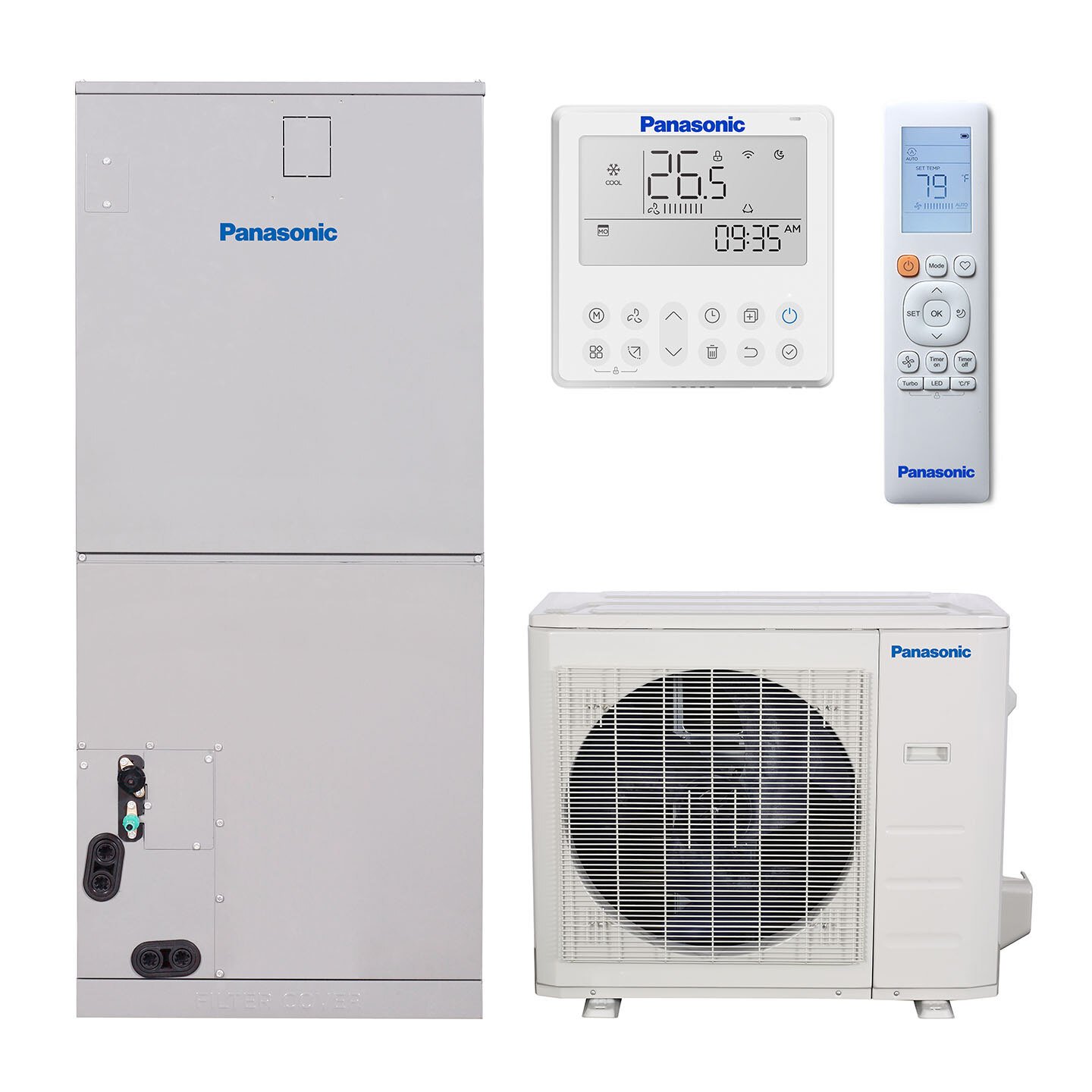

INTERIOS™ 2 Ton Cold Climate Central Heat Pump
Panasonic INTERIOS™ 2 Ton Cold Climate Central Heat Pump System utilizes R454B refrigerant to provide a more energy efficient, environmentally friendly, whole home heating and cooling solution. The system is ENERGY STAR® certified and there are back-up heating options available.

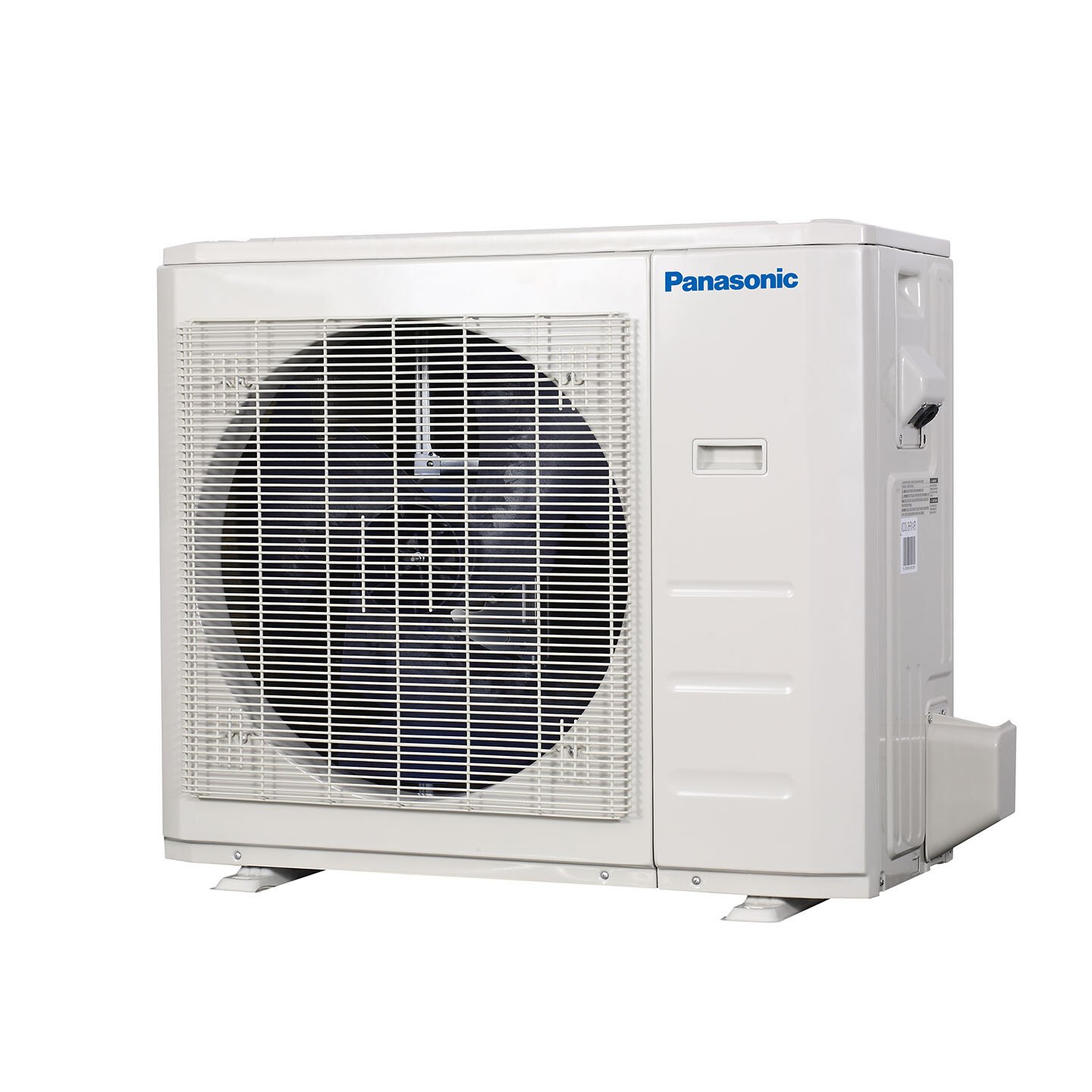

- Indoor unit: CS-HM24BAHU / Outdoor unit: CU-HM24BAHU
- -20 °F (-30 °C) Cold climate heating operation
- R454B Refrigerant for zero impact on the ozone layer
- Inverter heat pump condenser
- Multi-Position air handler

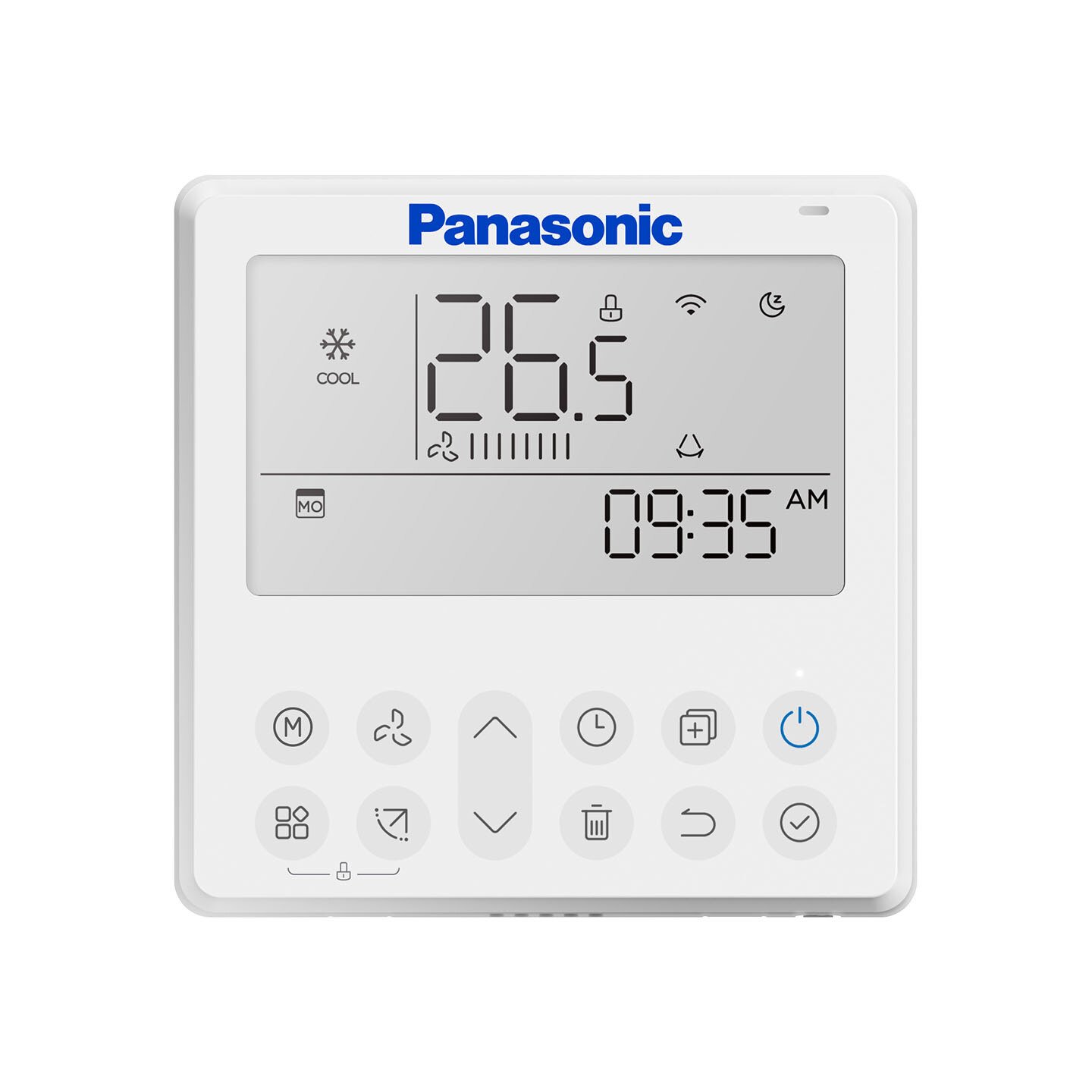

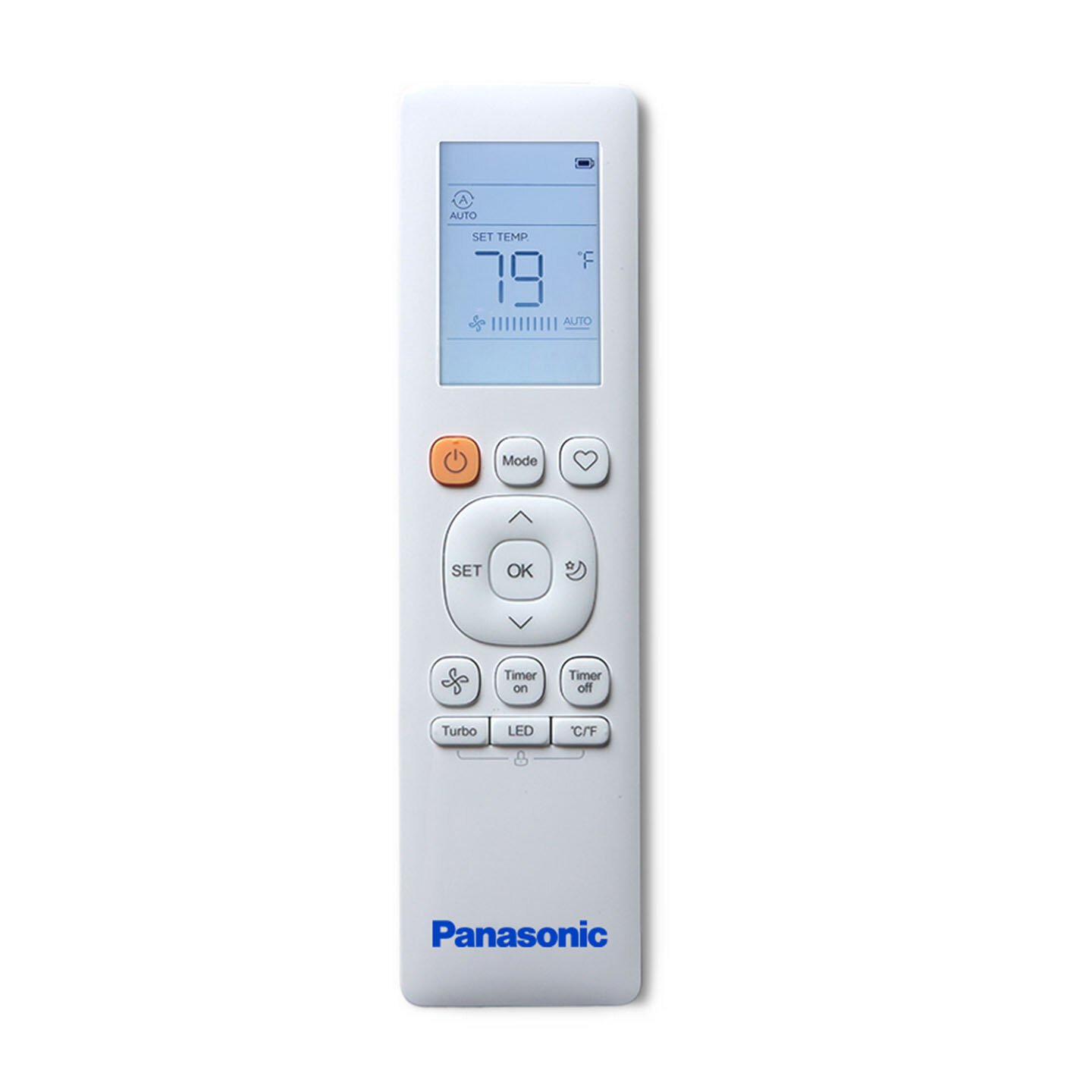

- Wired & Wireless remote controls
- Energy Star® 6.1 Cold Climate Certified
- Quiet operation
- Auxiliary electric heat kits available (Optional)
Product Specifications
| SKU | HM24BAHU |
|---|---|
| Indoor Unit | CS-HM24BAHU |
| Outdoor Unit | CU-HM24BAHU |
| ENERGY STAR® | Yes |
| Power Supply - Indoor Unit (V, Phase, Hz) | 115 /208 / 230V, Single Phase, 60Hz |
| Power Supply - Outdoor Unit (V, Phase, Hz) | 208 / 230V, Single Phase, 60Hz |
| Capacity (Heating/Cooling) | 24,000 / 23,000 Btu/h |
| SEER2 | 18.3 |
| EER2 | 11.7 |
| HSPF2 - Region 4 / Region 5 | 10.0 / 8.0 |
| Capacity at -15°C (5°F) | 21,600 Btu |
| COP at -15°C (5°F) | 1.87 |
| Refrigerant | R454B |
| Weight - Indoor Unit | 106 lbs (48 kg) |
| Weight - Outdoor Unit | 102.3 lbs (46.4 kg) |
| Dimensions (H x W x D) - Indoor Unit | 45" x 21" x 17-1/2" (1143 x 534 x 445 mm) |
| Dimensions (H x W x D) - Outdoor Unit | 26-1/2" x 35-1/32" x 13-15/32" (673 x 890 x 342 mm) |
