Intelli-Balance® 100 Any Climate ERV, Hardwire Model - 30 - 100 CFM

Intelli-Balance® 100 CLIMATE 30-50-60-70-80-90-100 CFM, Ceiling or Wall Mount ERV

Tightly built homes and buildings utilizing exhaust only fans can create negative pressure. Intelli-Balance 100 solves this by supplying air to replace exhausted air, helping to balance air pressure within the home. Intelli-Balance 100 ERV uses four integrated dual 4” or 6” round duct adaptors – two to exhaust stale air and two to supply fresh air. Its low, continuous run helps remove moist, stale air and replace it with fresh air. Intelli-Balance 100 can be ceiling or wall mounted, does not require connection to the Central HVAC or the addition of a condensation line. This allows it to be installed in many places throughout the home to meet IAQ, health and comfort needs.

DC Motor Technology - The Best Performing, Most Energy Efficient Motor Available

Intelli-Balance 100 uses two (2) DC brushless motors with built-in SmartFlow™ technology. When the ERV senses static pressure, its speed is automatically increased to ensure optimal CFM output; regardless of a complicated duct run. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the ERV’s performance. Both DC motors are rated for continuous run and are totally enclosed to ensure long-life and continuous quiet operation. Each motor also comes equipped with a thermal cutoff fuse.

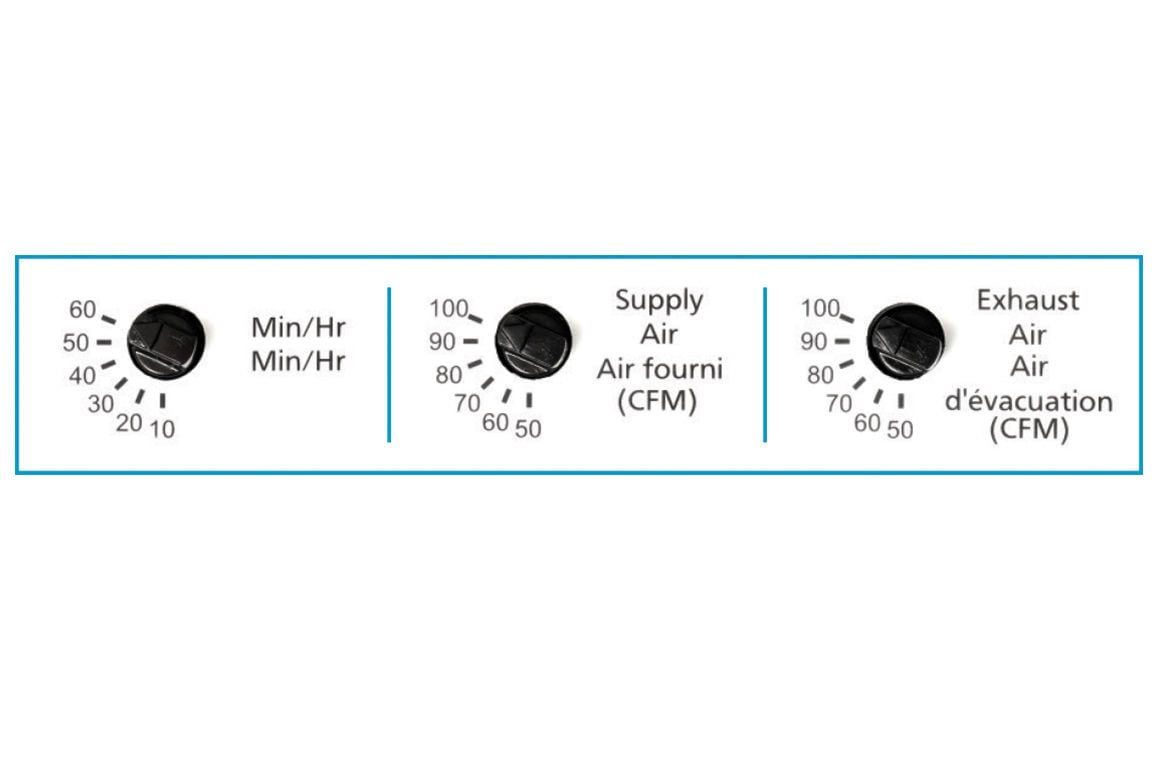

Multi-Speed Selector

Intelli-Balance®100 includes a built-in Multi-Speed selector that provides the uniqueability to select your required supply (30-50-60-70-80-90-100 CFM) and exhaust airflow(30-50-60-70-80-90-100 CFM), with the simple turn of a dial. This truly customizable airflow capability allows you to create balanced, positive or negative pressure within the home.

ASHRAE 62.2 TIMING FUNCTION

The adjustable Minutes Per Hour (Min/Hr) timer allows the user to set the number of minutes per hour the ERV should run. This gives scalability of air flow relative to property size; from the smallest multi-family to larger single family applications.This ensures consistent and controlled ventilation throughout the day for compliance with ASHRAE 62.2. Factory default setting is 60 Min/Hr.

Operation in Extreme Temperatures

FV-10VEC2 / FV-10VEC2H can be used in any climate zone. As the outdoor air temperature drops, the unit enters a recirculation defrost cycle to prevent freezing in the core.

Exchange Capillary Core

Indoor and outdoor air pass through Panasonic’s patented capillary core designed to transfer heat and moisture. This process tempers supply air while transferring moisture. The core’s high latent energy (moisture) transfer makes Intelli-Balance 100 ideal for use in most climate zones, as it helps expel moisture during incidences of high relative humidity (RH) and helps return moisture back inside during the winter for a healthier, more comfortable living environment.

Filters and Maintenance

Intelli-Balance®100 has two filters that clean the exhaust and supply air before passing through the ERV core, extending the life of the core. A hinged access panel allows for quick and easy product maintenance and filter checks. Convenient light indicator and unobtrusive alarm signal on the access panel will help inform the homeowner when it’s time to check and clean the filters. Both filters should be vacuumed with a soft brush attachment every 2-3 months or as needed, and the supply air filter should be inspected every 90 days and replaced every 6 months to maintain the ERV’s peak performance.

ENERGY STAR® Certified for Energy Savings*

Panasonic Energy Recovery Ventilators(ERVs) are ENERGY STAR® certified where guidelines exist. ENERGY STAR® ERVs meet strict parameters set by the Environmental Protection Agency (EPA). Model FV-10VEC2 meets strict energy efficiency guidelines set by Natural Resources Canada and is ENERGY STAR® certified for the Canadian market only.
