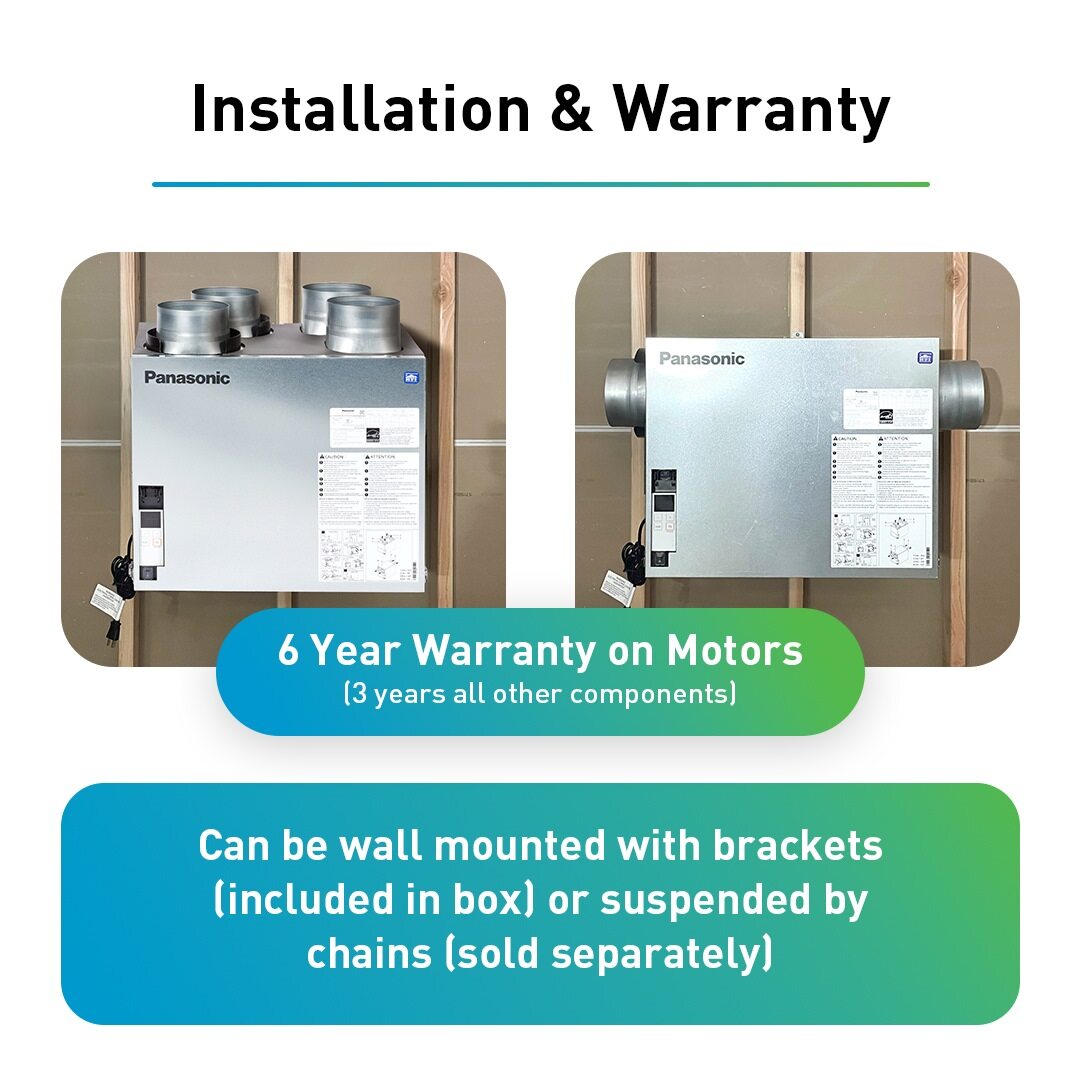

3 Panasonic_ERV_BalancedHome_Elite Plus_Warranty_1080x1080-1
4 Panasonic_ERV_BalancedHome_Comparison_1080x1080-2
5 Panasonic_ERV_BalancedHome_Elite Plus_FV-13VEC1S_CFM_1080x1080
6 Panasonic_ERV_BalancedHome_Elite Plus_FV-13VEC1T_CFM_1080x1080
7 Panasonic_ERV_BalancedHome_Elite Plus_FV-16VEC1S_CFM_1080x1080
8 Panasonic_ERV_BalancedHome_Elite Plus_FV-16VEC1T_CFM_1080x1080
9 Panasonic_ERV_BalancedHome_Air Quality_B_1080x1080

BalancedHome® Elite Plus+ Energy Recovery Ventilator (ERV), 30-160 CFM, 30-130 CFM

Model:

  • FV-16VEC1T

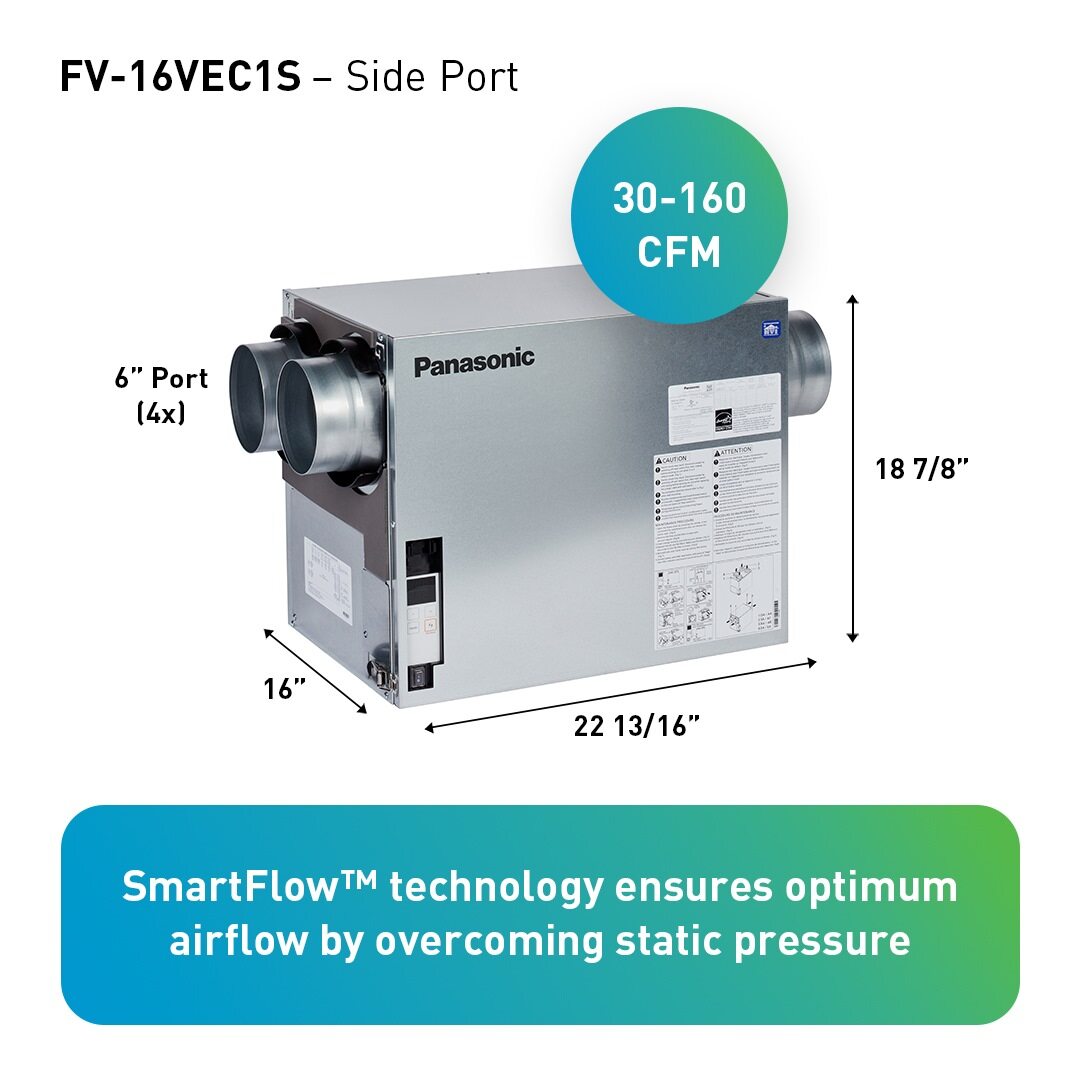

  • FV-16VEC1S

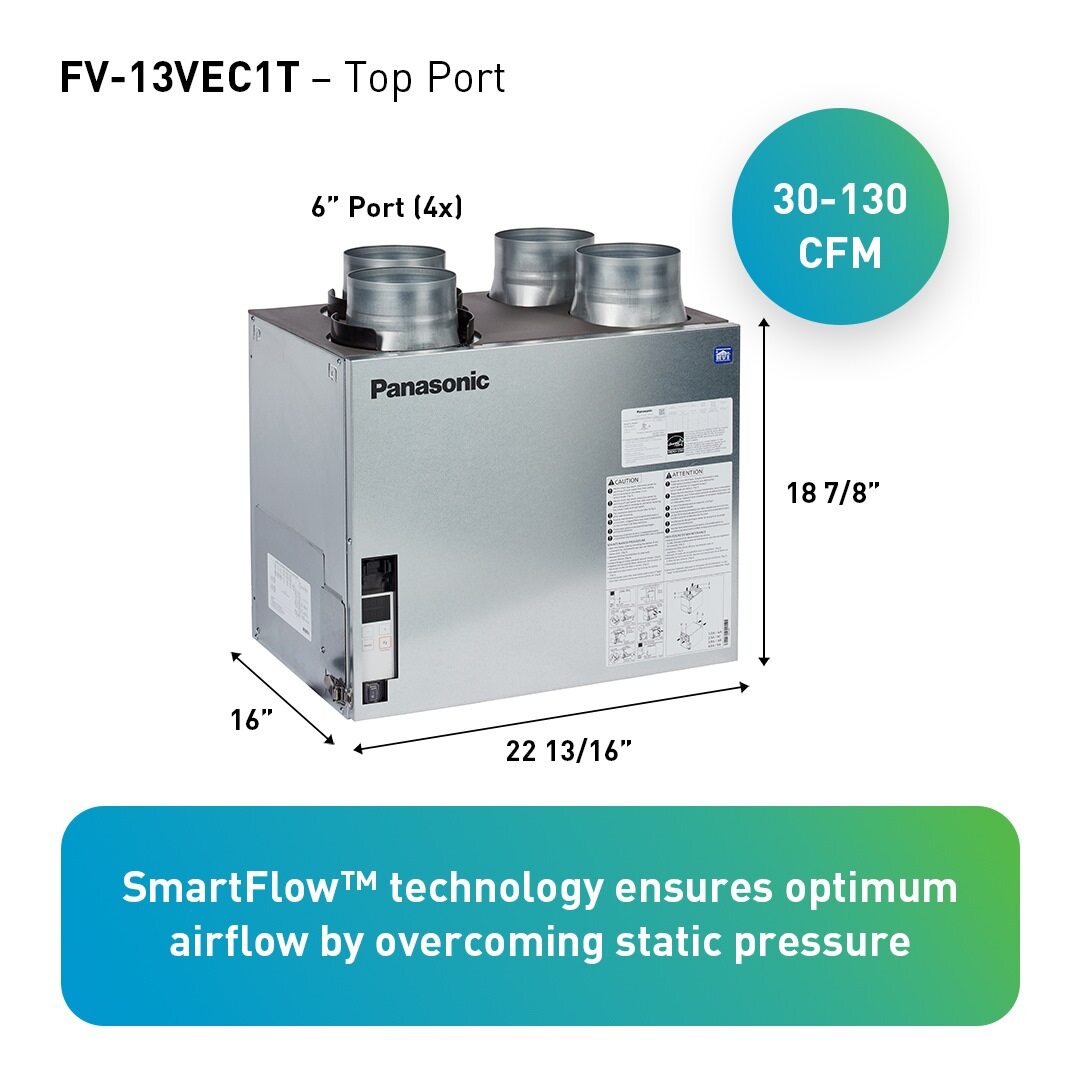

  • FV-13VEC1T
  • FV-13VEC1S

Engineered for energy-efficient homes, this residential ventilation system delivers exceptional energy recovery while providing continuous fresh air to improve indoor air quality. The top-port or side-port configuration streamlines installation in new construction and helps reduce HVAC energy consumption throughout the year.


Contact Sales Find A Distributor

  • SRE up to 84% (FV-16VEC1T, FV-16VEC1S)/ SRE up to 83%(FV-13VEC1T, FV-13VEC1S); complies with IECC Code requirements, all-climate
  • SmartFlow™ Technology helps overcome static pressure to maintain 30-160 CFM (FV-16VEC1T, FV-16VEC1S) or 30-130 CFM (FV-13VEC1T, FV-13VEC1S)
  • Integrated digital control panel; optional touch screen Wall Control (FV-SCVE2) for set up, status and control including Fault Indicator Display (FID)
  • Hygroscopic membrane core tempers supply air while transferring moistrue and energy
  • Standard power cord/hardwire adaptor kit included

iaq25426web-bh-160-combo-1700x1080

Quality Control

Built for high-performance balanced ventilation, the BalancedHome® ERV delivers superior installed performance and energy efficiency, all at a cost-effective price point. Ideal for the single-family market, this innovative system is the key to healthier, more comfortable living spaces and the backbone to an effective ventilation strategy. Panasonic is committed to delivering exceptional energy recovery ventilators that meet the highest standards of quality and craftsmanship. Our rigorous quality control processes are designed to ensure every item is produced with precision and care, providing years of service.

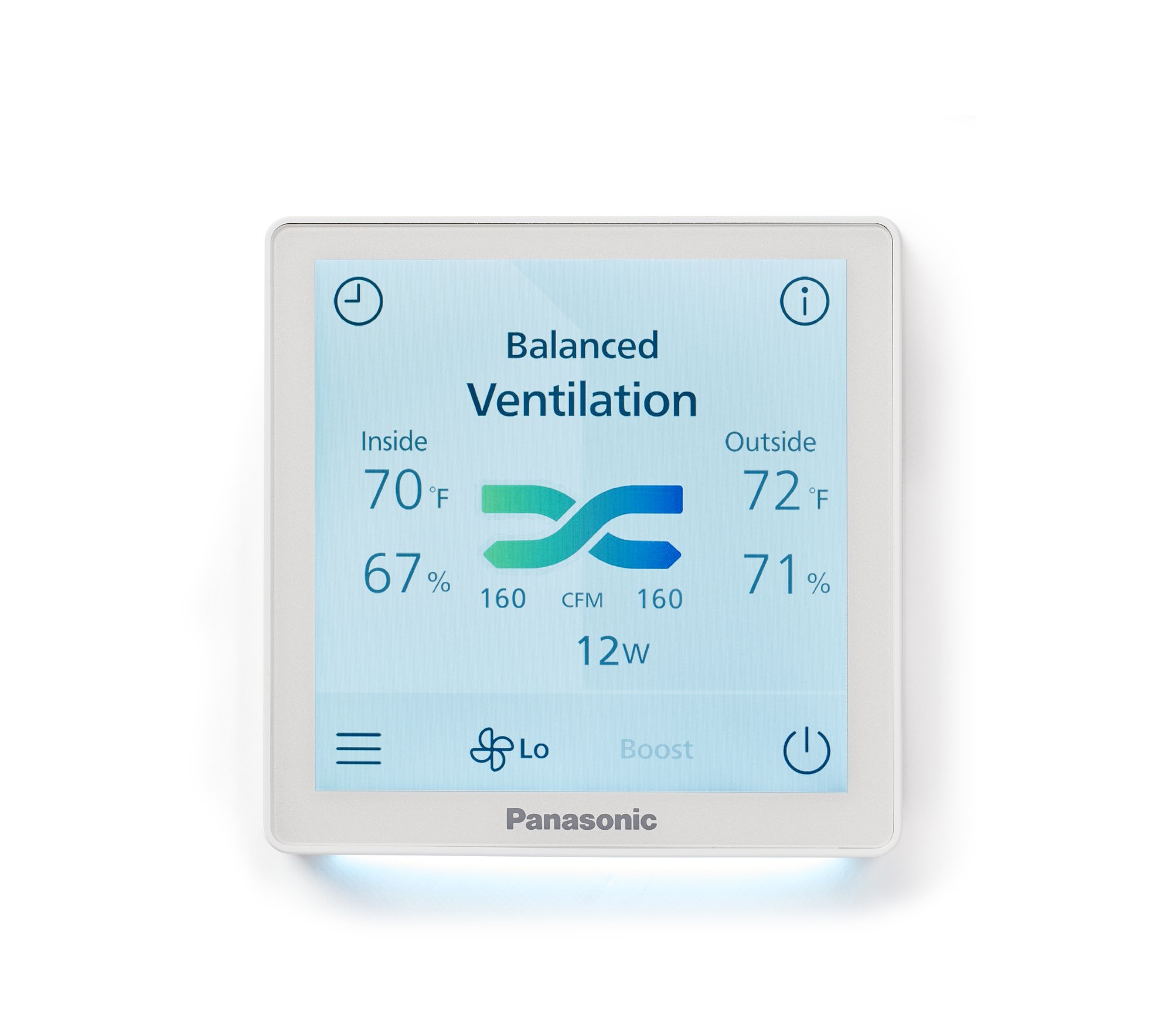

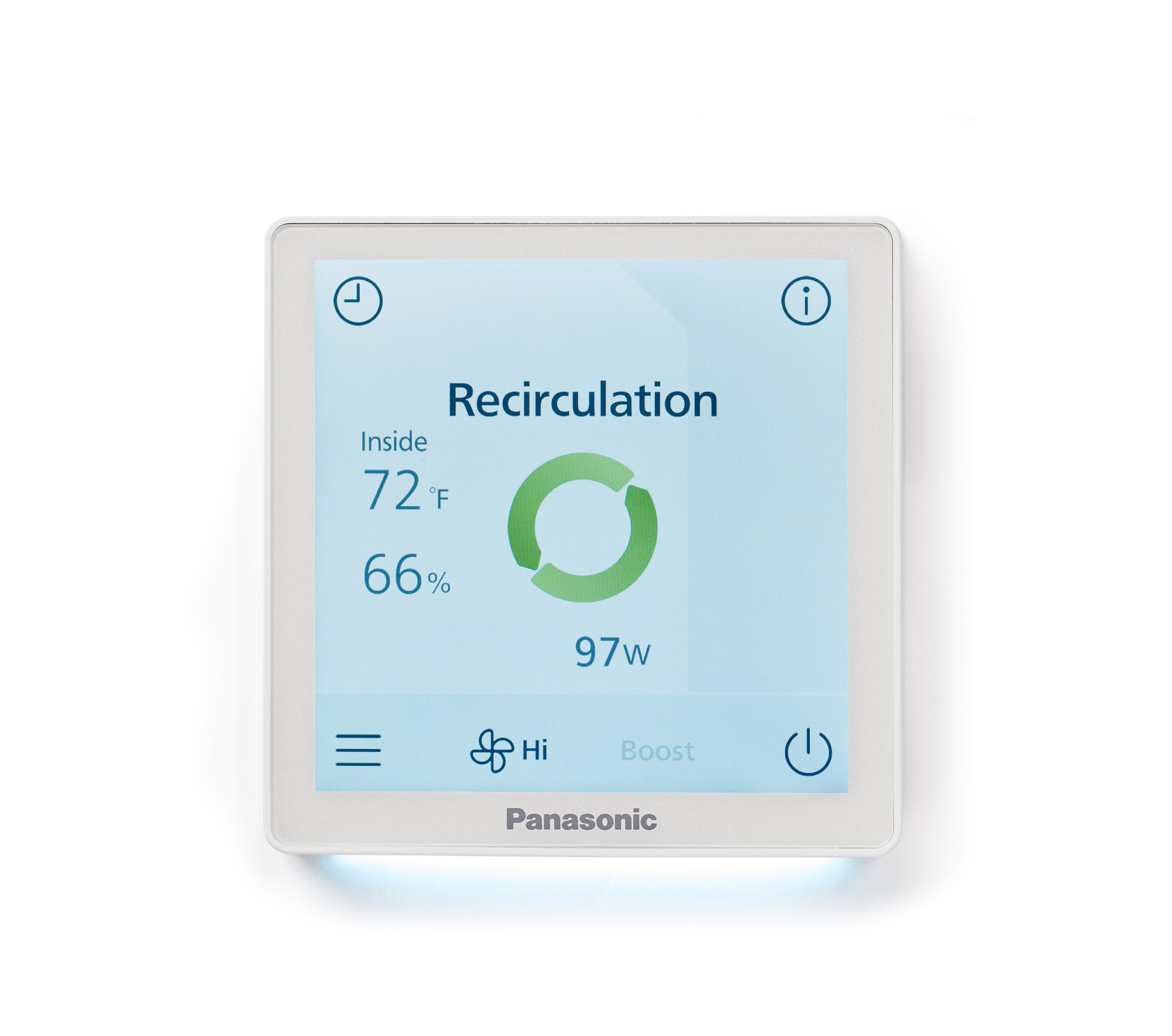

Two Panasonic control screens displaying Balanced Ventilation mode at 12 watts with temperature and humidity readings on the left, and Recirculation mode at 97 watts on the right.

Hygroscopic Core Design

Indoor and outdoor air pass through hygroscopic membranes of Panasonic's core, specifically engineered for efficient heat and moisture transfer. This innovative design not only tempers incoming air but also balances indoor moisture levels across all seasons, expelling excess moisture in humid conditions and retaining it in colder months to enhance comfort. Designed for diverse climate zones, BalancedHome® ERVs’ advanced core ensures a healthier, more comfortable indoor environment year-round.

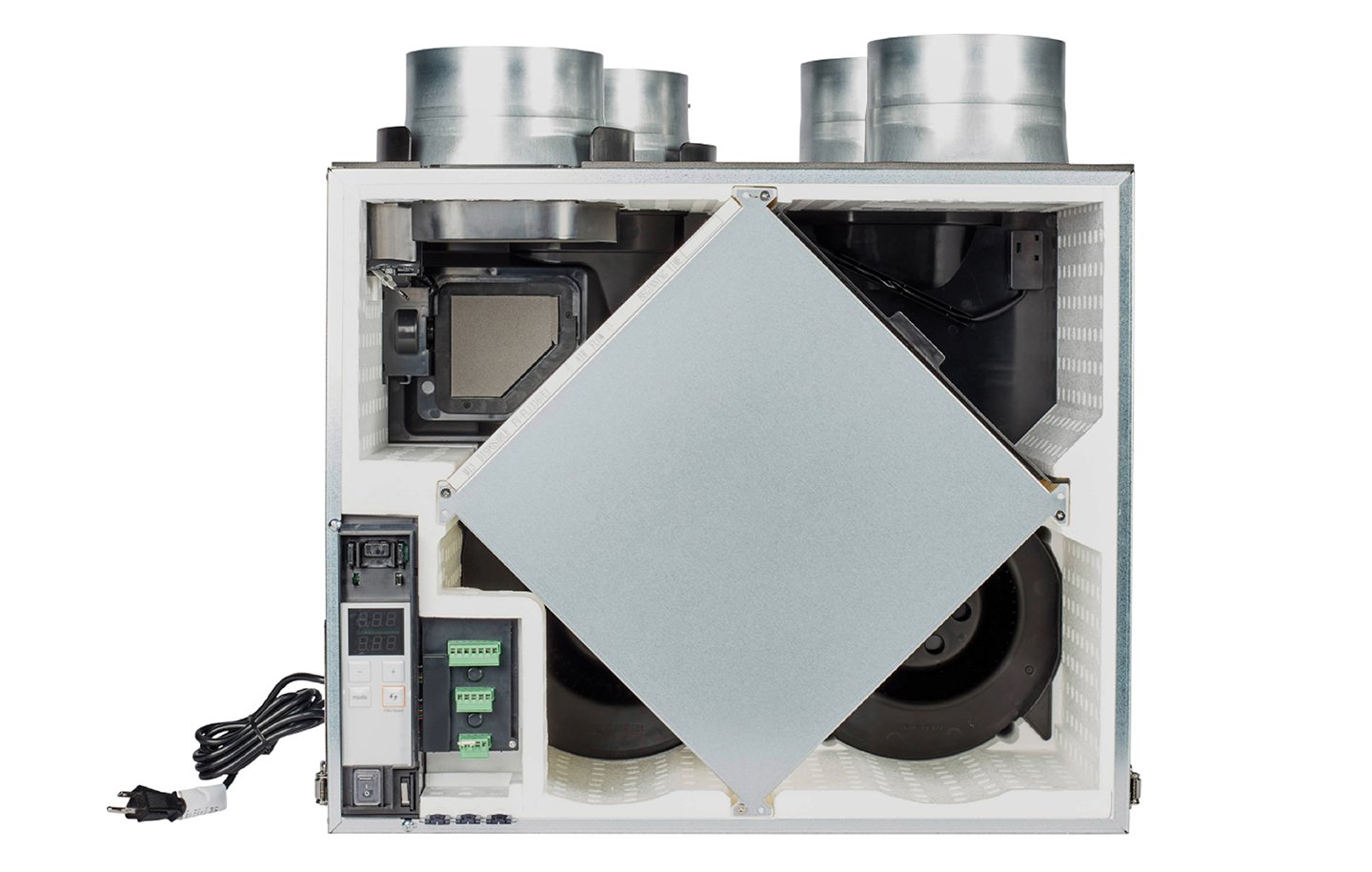

Interior view of a Panasonic BalancedHome ERV unit showing internal components, wiring, and duct connections.

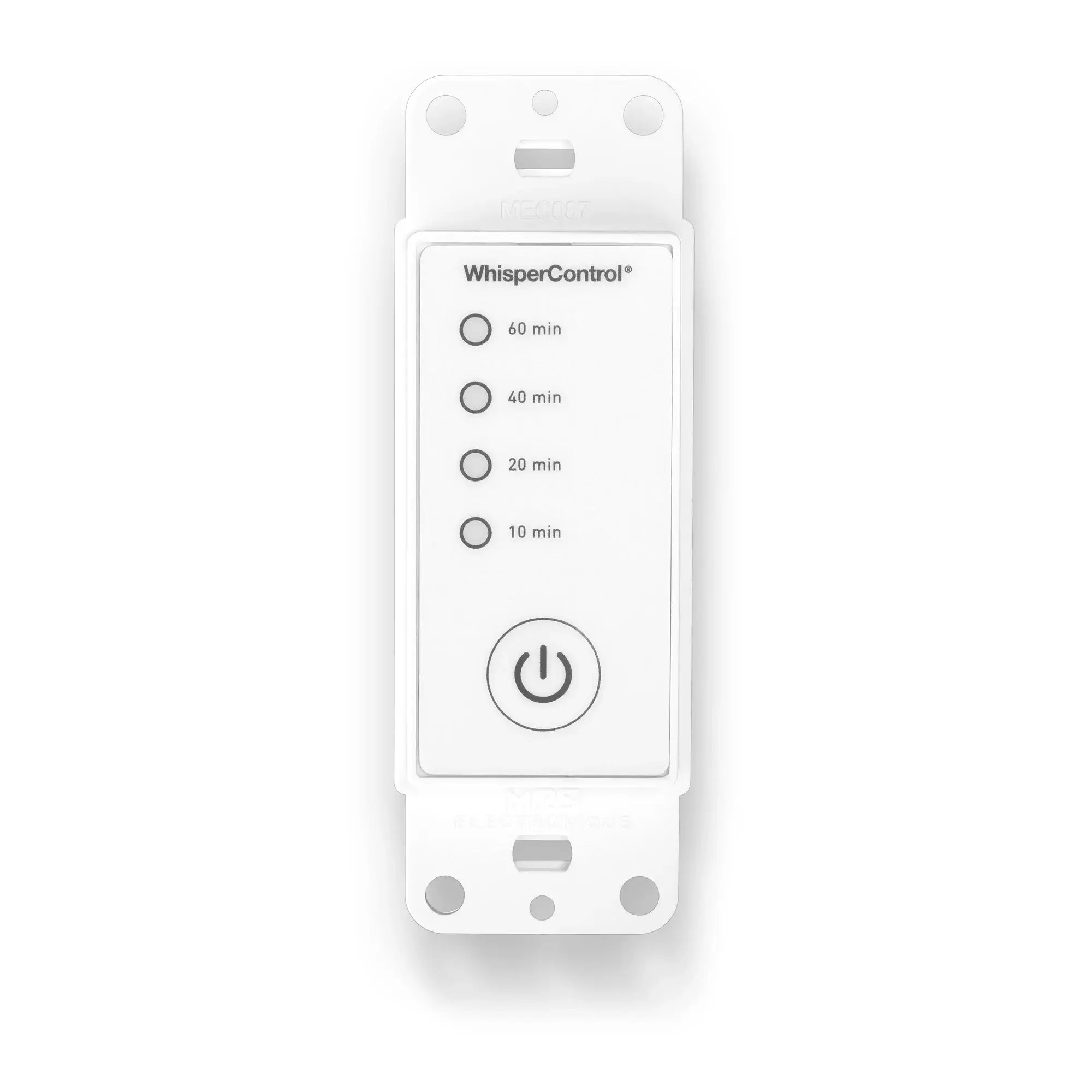

Optional Low Voltage Booster Timer

The WhisperControl® Low Voltage Timer, for BalancedHome® and Intelli-Balance® Elite and Elite Plus+ models, activates pre-set times so you can boost your supply and exhaust air to maintain the maximum CRM of the ERV providing high-performance air exchange.  Boost your ERV ventilation with 10-, 20-, 40- and 60-minute timer countdown options.

Panasonic WhisperControl® switch with 10, 20, 40, and 60-minute timer settings and power button

Filters & Maintenance

BalancedHome® ERV has two filters that clean the exhaust and supply air before passing through the ERV core, extending the life of the core. A hinged access panel allows for quick, easy maintenance along with filter checks.
